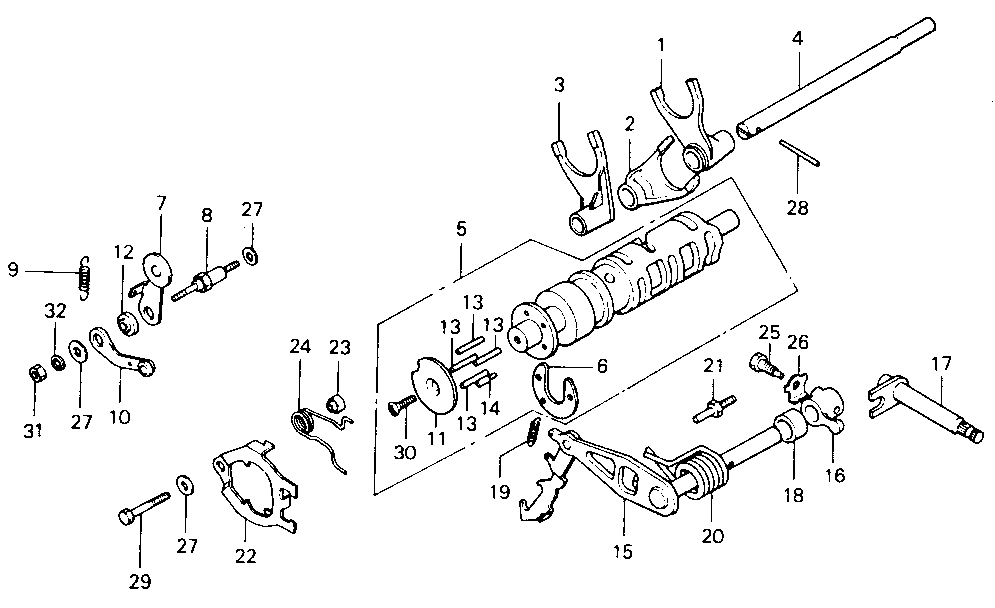

Ref.No
|
Partnumber
|
Description
|
Reqd.
|
| 1 |
24211-371-000 |
FORK R. GEARSHIFT |
1 |
| 2 |
24212-371-000 |
FORk, CENTER GEARSHIFT |
1 |
| 3 |
24213-371-000 |
FORK, L. GEAR SHIFT |
1 |
| 4 |
24261-371-000 |
SHAFT, SHIFT FORK |
1 |
| 5 |
24300-371-010 |
DRUM ASSY., SHIFT |
1 |
| 6 |
24302-371-000 |
PLATE, ROLLER STOPPER |
1 |
| 7 |
24430-371-000 |
STOPP COMP. DRUM |
1 |
| 8 |
24434-371-000 |
SHAFT, DRUM STOPPER |
1 |
| 9 |
24435-371-000 |
SPRIN DRU STOPPER |
1 |
| 10 |
24440-371-000 |
ARM COMP., NEUTRAL STOPPER |
1 |
| 11 |
24442-371-000 |
PLATE, NEUTRAL STOPPER |
1 |
| 12 |
24447-371-000 |
COLLAR NEUTRAL STOPPER PIVOT |
1 |
| 13 |
24501-371-000 |
ROLLER, 4x29.8 |
1 |
| 14 |
24502-371-010 |
ROLLER, 4x17.0 |
1 |
| 15 |
24610-371-000 |
ARM COMP., GEARSHIFT |
1 |
| 16 |
24615-371-000 |
ARM B, GEARSHIFT |
1 |
| 17 |
24620-371-000 |
SPINDLE COMP., SHIFT |
1 |
| 18 |
24624-371-000 |
COLLAR, SHIFT SPRING |
1 |
| 19 |
24641-371-000 |
SPRING, SHIFT ARM |
1 |
| 20 |
Z4651-371-000 |
SPRING, SHIFT RETURN |
1 |
| 21 |
24652-300-000 |
PIN, SHIFT RETURN SPRING |
1 |
| 22 |
24661-371-000 |
STOPPER GEARSHIFT POSITIVE |
1 |
| 23 |
24663-300-000 |
COLLAR, STOPPER ARM |
1 |
| 24 |
24666-300-000 |
SPRING POSITIVE STOPPER |
1 |
| 25 |
90029-611-000 |
BOLT, HEX., 8x24 |
1 |
| 26 |
90406-611-000 |
PLATE, LOCK |
1 |
| 27 |
90417-041-000 |
WASHER SHIFT DRUM SIDE |
3 |
| 28 |
90705-371-000 |
PIN, 4X40 |
1 |
| 29 |
92000-06025 |
BOLT, HEX. , 6x25 |
1 |
| 30 |
93600-06022 |
SCREW, FLAT, 6x22 |
1 |
| 31 |
94001-06000 |
NUT, HEX., 6MM |
1 |
| 32 |
94111-06000 |
WASHER, SPRING, 6MM |
1 |
