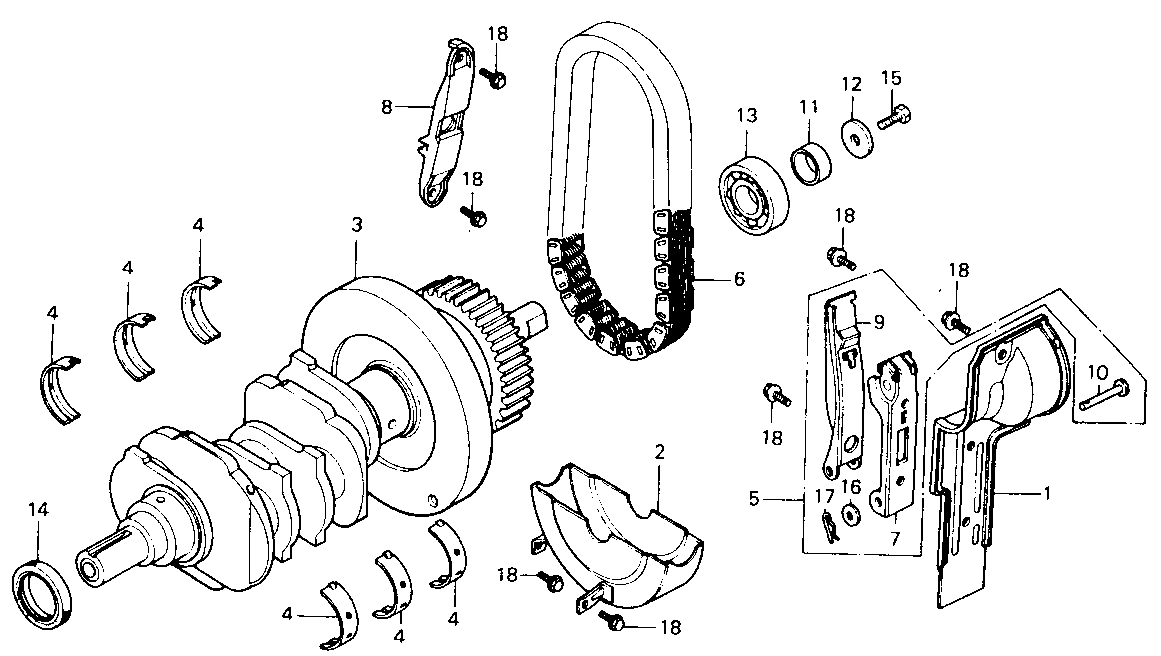

Ref.No |
Partnumber |
Description |
Reqd. |
| 1 | 11130-371-000 | PLATE COMP., BREATHER | 1 |
| 2 | 11140-431-000 | COVER, OIL SEPARATE | 1 |
| 3 | 13310-431-000 | CRANKSHAFT COMP. | 1 |
| 4 | 13321-371-003 13322-371-003 13323-371-003 13324-371-003 13325-371-003 |
BEARING A, MAIN (BLUE) BEARING B, MAIN (BLACK) BEARING C, MAIN (BROWN) BEARING D, MAIN (GREEN) BEARING E, MAIN (YELLOW) |
6 6 6 6 6 |
| 5 | 23130-431-000 | TENSIONER ASSY., PRIMARY CHAIN | 1 |
| 6 | 23131-371-004 | CHAIN, PRIMARY DRIVE | 1 |
| 7 | 23132-431-000 | BRACKET COMP., CHAIN GUIDE | 1 |
| 8 | 23136-371-003 | GUIDE, R. PRIMARY CHAIN | 1 |
| 9 | 23137-431-000 | TENSIONER, PRIMARY CHAIN | 1 |
| 10 | 23138-431-000 | PIN 8x44 | 1 |
| 11 | 90402-431-000 | COLLAR, RR. END | 1 |
| 12 | 90435-611-000 | WASHER, SPECIAL, 28x8.5x4.0 | 1 |
| 13 | 91002-371-004 | BEARING, BALL, 6304C (KOYO) | 1 |
| 14 | 91201-371-005 | SEAL, OIL, 35x55x8 | 1 |
| 15 | 92000-08022-OA | BOLT, HEX., 8x22 | 1 |
| 16 | 94101-08800 | WASHER, PLAIN, 6MM | 1 |
| 17 | 91251-08000 | PIN, LOCK, 6MM | 1 |
| 18 | 95700-06016-00 | BOLT, FLANGE, 6x16 | 8 |
