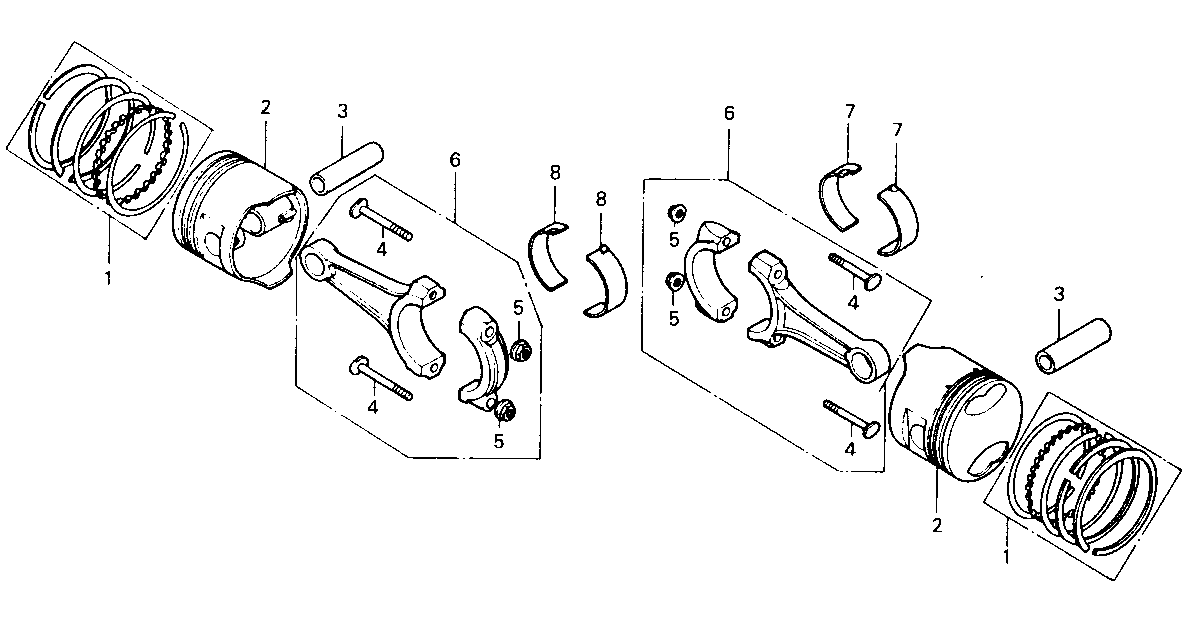

Ref.No |
Partnumber |
Description |
Reqd. |
| 1 | 13011-371-004 13011-371 013 13021-371-004 13021-371-013 13031-371-004 13031-371-013 13041-371-004 13041-371-013 13051-371-004 13051-371-013 |
RING SET, PISTON STD. RIKEN RING SET, PISTON STD. NIPPON RING SET, PISTON (0.25 RIKEN) RING SET, PISTON (0.25 NIPPON) RING SET, PISTON (0.50 RIKEN) RING SET, PISTON (0.50 NIPPON) RING SET, PISTON (0.75 RIKEN) RING SET, PISTON (0.75 NIPPON) RING SET, PISTON (1.00 RIKEN) RING SET, PISTON (1.00 NIPPON) |
4 4 (4) (4) (4) (4) (4) (4) (4) (4) |
| 2 | 13101-371-000 13102-371-000 13103-371-000 13104-371-000 13105-371-000 |
PISTON STD PISTON 0.25 PISTON (0.50) PISTON (0.75) PISTON (1.00) |
4 (4) (4) (4) (4) |
| 3 | 13112-631-000 | PIN, PISTON | 4 |
| 4 | 13204-371-000 | BOLT , CONNECTING ROD | 8 |
| 5 | 13205-634-010 | NUT, CONNECTING ROD | 8 |
| 6 | 13210-371-000 | ROD ASSY., CONNECTING | 4 |
| 7 | 13215-371-003 13216-371-003 132I7-371-003 13218-371-003 13219-371-003 |
BEARING A, CONNECTING ROD 2.4 (BLUE) BEARING B, CONNECTING ROD 2.4 (BLACK) BEARING C, CONNECTING ROD 2 4 (BROWN) BEARING D, CONNECTING ROD 2.4 (GREEN) BEARING E, CONNECTING ROD 2.4 (YELLOW) |
4 4 4 4 4 |
| 8 | 13221-371-003 13222-371-003 13223-371-003 13224-371-003 13225-371-003 |
BEARING A, CONNECTING ROD 1.3 (BLUE) BEARING B, CONNECTING ROD 1.3 (BLACK) BEARING C, CONNECTING ROD 1.3 (BROWN) BEARING D, CONNECTING ROD 1.3 (GREEN) BEARING E, CONNECTING ROD 1.3 (YELLOW) |
4 4 4 4 4 |
