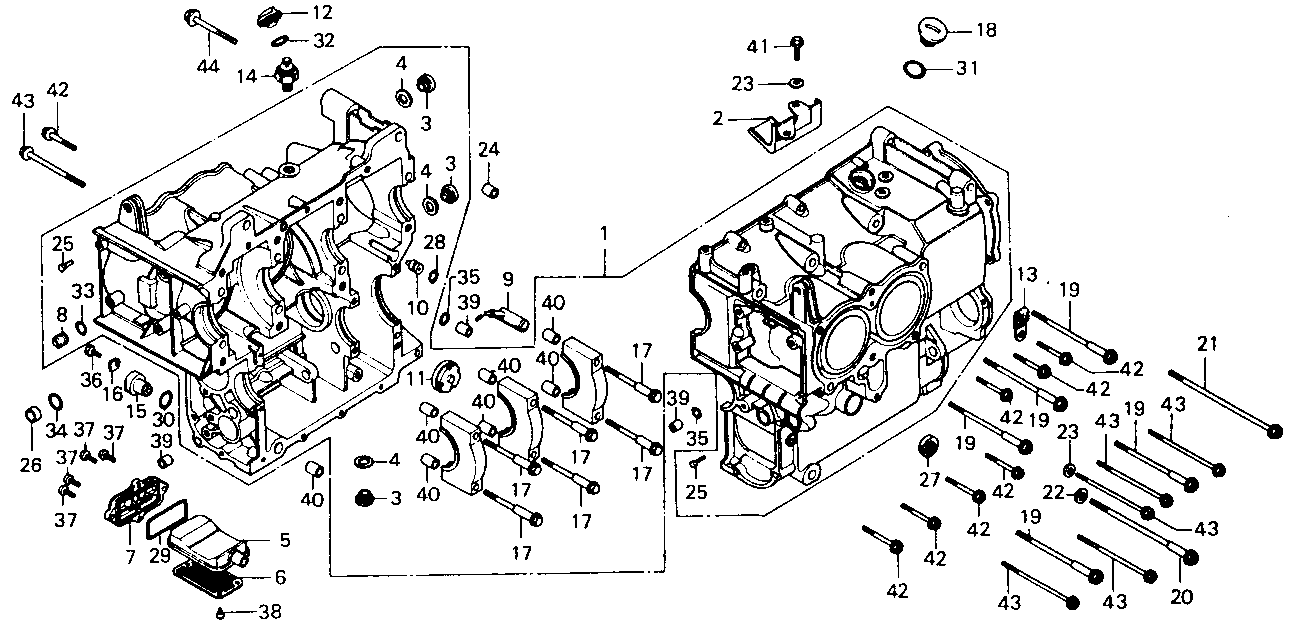

Ref. No |
Partnumber |
Description |
Reqd. |
| 1 | 11000-371-040 | BLOCK ASSY., CYLINDER | 1 |
| 2 | 11220-371-000 | GUIDE, OIL | 1 |
| 3 | 12206-371-305 | BOLT SEALING, 18MM | 3 |
| 4 | 12207-611-300 | WASHER, SEAL I NG BOLT | 3 |
| 5 | 15151-371-000 | CASE, OIL STRAINER | 1 |
| 6 | 15152-371-000 | SCREEN, OIL STRAINER | 1 |
| 7 | 15153-371-000 | COVER, STRAINER | 1 |
| 8 | 15337-300-010 | PLUG, OIL TUBE | 1 |
| 9 | 15520-371-000 | NOZZLE, OIL SUPPLY | 1 |
| 10 | 15530-371-000 | ORIFICE, CHAIN | 1 |
| 11 | 15661-371-015 | FINDER, OIL LEVEL | 1 |
| 12 | 25611-371-000 | CAP, LEVEL GAUGE | 1 |
| 13 | 32111-323-000 | CLAMPER, CORD | 1 |
| 14 | 35500-333-014 | SWITCH ASSY., OIL PRESSURE (ND) | 1 |
| 15 | 35752-300-010 | SWITCH ASSY., NEUTRAL | 1 |
| 16 | 35754-300-020 | STOPPER, NEUTRAL SWITCH | 1 |
| 17 | 90003-371-003 | BOLT, FLANGE 10x80 | 6 |
| 18 | 90008-371-000 | BOLT: SPECIAL 25MM | 1 |
| 19 | 90009-371-005 | BOLT FLANGE 10x120 | 5 |
| 20 | 90010-371-005 | BOLT, FLANGE, 10x16 | 1 |
| 21 | 90026-371-004 | BOLT, FLANGE, 8x175 | 1 |
| 22 | 90438-634-000 | WASHER, 21x11x2.3 | 1 |
| 23 | 90441-028-010 | WASHER SEALING, 6MM | 3 |
| 24 | 90702-371-000 | COLLAR, 15x20 | 1 |
| 25 | 90702-634-300 | PIN, 4x12MM | 2 |
| 26 | 90703-371-000 | COLLAR , 17x10 | 1 |
| 27 | 91206-286-013 | OIL SEAL 14x28x7 | 1 |
| 28 | 91259-333-000 | O-RING , 9.5x1.7 | 1 |
| 29 | 91303-371-000 | PACKING, A. OIL STRAINER | 1 |
| 30 | 91306-371-003 | O-RING, 18x3 | 1 |
| 31 | 91307-703-000 | O-RING, 26MM | 1 |
| 32 | 91318-500-000 | O-RING, 27x2.7 | 1 |
| 33 | 91319-300-000 | O-RING, 13x2.5 | 1 |
| 34 | 91333-567-010 | O-RING, 17.0x2.5 | 1 |
| 35 | 91361-706-000 | O-RING, 8x1.9 | 2 |
| 36 | 92000-06016 | BOLT, HEX 6x16 | 1 |
| 37 | 93500-06020 | SCREW, PAN 6x20 | 4 |
| 38 | 93901-12110 | SCREW, TAPPING, 3x8 | 3 |
| 39 | 94301-08140 | PIN A, DOWEL 8x140 | 4 |
| 40 | 94301-12200 | PIN A , DOWEL 12x2 | 7 |
| 41 | 95700-06016 00 | BOLT, FLANGE, 6x16 | 2 |
| 42 | 95700-06035-00 | BOLT, FLANGE, 6x35 | 8 |
| 43 | 95700-06110-00 | BOLT, FLANGE, 6x110 | 6 |
| 44 | 95700-08070-00 | BOLT, FLANGE, 8x70 | 1 |
