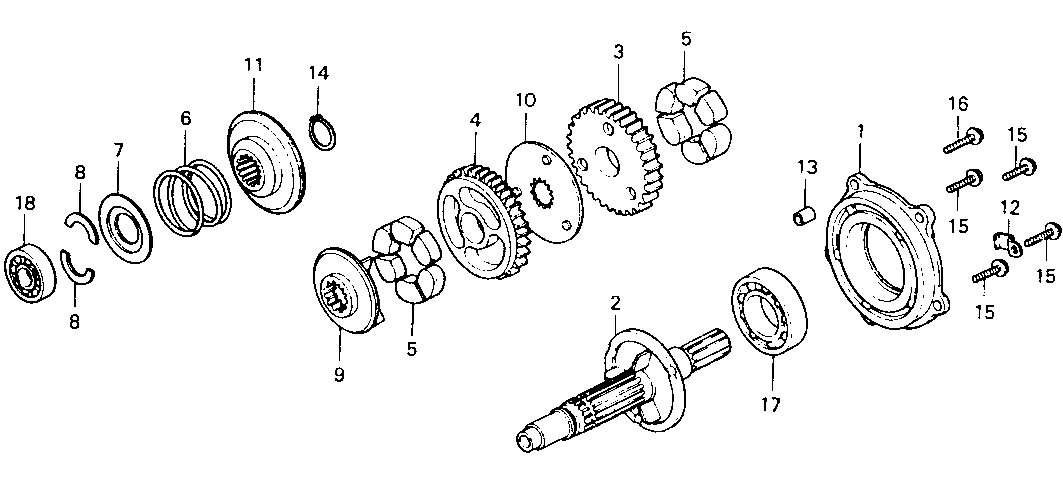

Ref.No
|
Partnumber
|
Description
|
Reqd.
|
| 1 |
11321-371-000 |
HOLDER, A.C.GENERATOR BEARING |
1 |
| 2 |
13410-371-000 |
SHAFT COMP., A.C.GENERATOR |
1 |
| 3 |
13431-371-000 |
GEAR A, A.C.GENERATOR DRIVEN |
1 |
| 4 |
13432-371-000 |
GEAR B, A.C.GENERATOR DRIVEN |
1 |
| 5 |
13436-371-000 |
RUBBER, DAMPER |
12 |
| 6 |
13437-371-000 |
SPRING, A.C.GENERATOR DAMPER |
1 |
| 7 |
13438-371-007 |
RETAINER, A.C.GENERATOR SPRING |
1 |
| 8 |
13439-371-000 |
COTTER, A.C.GENERATOR SPRING |
2 |
| 9 |
13442-371-000 |
PLATE B, DAMPER |
1 |
| 10 |
13446-371-000 |
PLATE, STOPPER |
1 |
| 11 |
13451-371-000 |
PLATE, PRESSURE |
1 |
| 12 |
28114-371-000 |
PLATE, CHAIN GUIDE |
1 |
| 13 |
94301-08140 |
PIN A, DOWEL, 8x14 |
1 |
| 14 |
94510-28000 |
CIR CLIP, EXTERNAL, 28 |
1 |
| 15 |
95700-06022-00 |
BOLT, FLANGE, 6x22 |
4 |
| 16 |
95700-06032-00 |
BOLT, FLANGE, 6x32 |
1 |
| 17 |
96100-60070 |
BEARING, RADIAL BALL, 6007 |
1 |
| 18 |
96140-63030 |
BEARING, RADIAL BALL, 6303U |
1 |
