Ref.No |
Partnumber |
Description |
Reqd. |

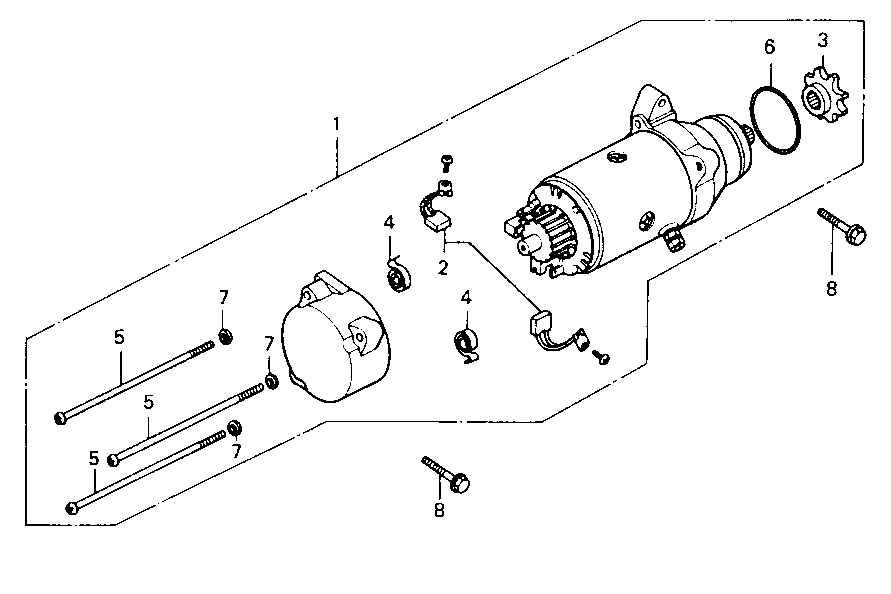

| 1 | 31200-371-005 | MOTOR ASSY., STARTER | 1 |
| 2 | 31201-292-158 | BRUSH SET, CARBON (MITSUBA) | 1 |
| 3 | 31202-371-005 | SPROCKET (HITSUBA) | 1 |
| 4 | 31204-292-158 | SPRING, CARBON BRUSH (MITSUBA) | 2 |
| 5 | 31205-371-005 | BOLT, SET (MITSUBA) | 3 |
| 6 | 91309-283-005 | O-RING, 42.5x2 | 1 |
| 7 | 94111-05000 | WASHER, SPRING, 5MM | 3 |
| 8 | 95700-06028-00 | BOLT, FLANGE, 6x28 | 2 |
