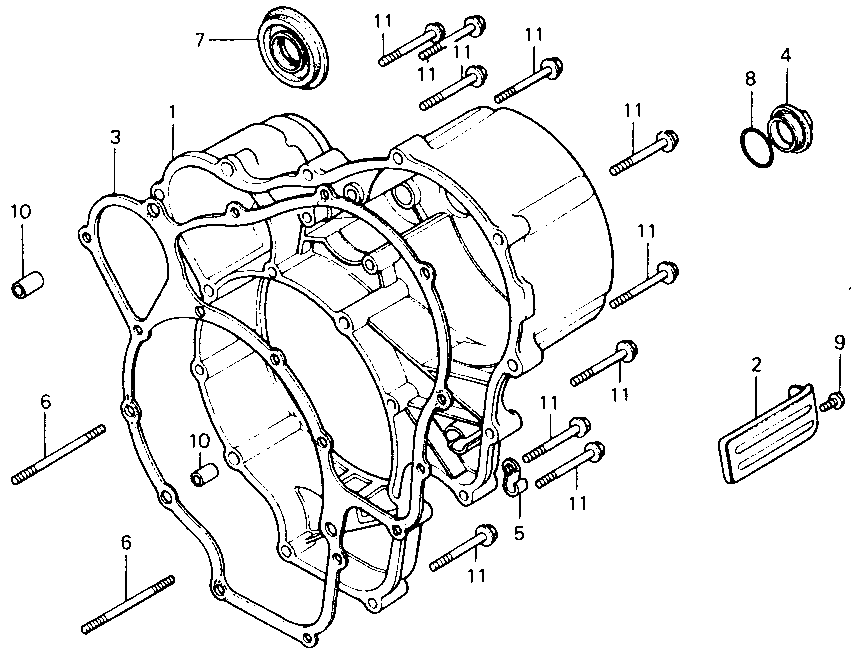

Ref.No |
Partnumber |
Description |
Reqd. |
| 1 | 11311-431-000 | CASE, RR. | 1 |
| 2 | 11315-371-010 | INSULATOR COMP., HEAT | 1 |
| 3 | 11394-371-000 | GASKET, RR. CASE | 1 |
| 4 | 12361-035-000 | CAP, TAPPET ADJUSTING HOLE | 2 |
| 5 | 32117-371-000 | CLAMPER A, CORD | 1 |
| 6 | 90028-371-004 | BOLT, STUD, 6x93 | 2 |
| 7 | 91204-371-003 91204-371-005 |
SEAL, OIL 25x54x7 SEAL, OIL 25x54x7 |
1 1 |
| 8 | 91302-001-020 | O-RING, 30.8MM | 1 |
| 9 | 93500-06008 | CREW, PAN, 6x8 | 1 |
| 10 | 94301-08140 | PIN A, DOWEL, 8x14 | 2 |
| 11 | 95700-06035-00 | BOLT, FLANGE, 6x35 | 11 |
