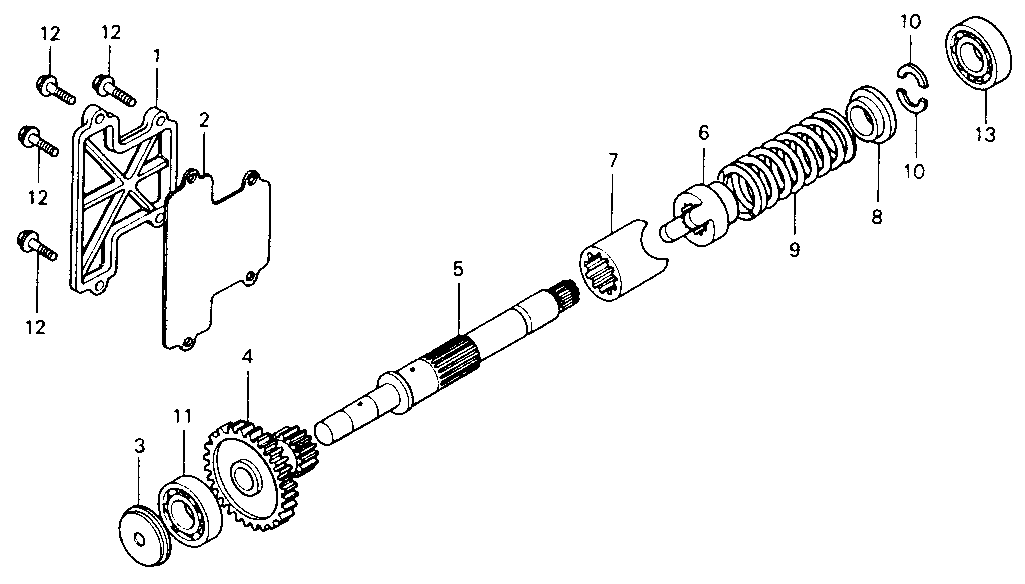

Ref.No |
Partnumber |
Description |
Reqd. |
| 1 | 11371-371-000 | COVER, FINAL GEAR | 1 |
| 2 | 11372-371-010 | GASKET, FINAL GEAR COVER | 1 |
| 3 | 23161-371-000 | PLATE B, OIL PATH | 1 |
| 4 | 23511-371-000 | GEAR, FINAL DRIVEN (33T) | 1 |
| 5 | 23521-371-O2O | SHAFT, FINAL GEAR | 1 |
| 6 | 23721-371-000 | LIFTER, DAMPER | 1 |
| 7 | 23722-371-000 | CAM, DAMPER | 1 |
| 8 | 23731-371-000 | STOPPER, DAMPER SPRING | 1 |
| 9 | 23732-371-000 | SPRING, DAMPER | 1 |
| 10 | 23733-371-000 | WASHER, SPRING STOPPER | 2 |
| 11 | 91002-371-004 | BEARING, BALL, 6304C (KOYO) | 1 |
| 12 | 95700-06025-00 | BOLT, FLANGE, 6x25 | 4 |
| 13 | 96100-60030 | BEARING, RADIAL BALL, 6003 | 1 |
