Sound Blaster PCI512

Product Specs

LNE100TX - EtherFast 10/100 LAN Card

Built to run with the fastest video, publishing, and database network applications, the EtherFast LAN Card is a high performance network adapter for 32-bit PCI local bus computers. The 1/19/98 issue of Computer Retail Week said this "easy-to-install" card comes with an impressive diagnostic software suite, and includes documentation that is "truly inspired." Boasting an incredible maximum data throughput of 132 megabits per second, it includes a combo, auto-detecting 10BaseT/100Base-TX port, which means that you can begin using the EtherFast now--even if you don't plan on upgrading to a 100Mbps network right away.

The Linksys EtherFast 10/100 LAN Card is now fully manageable -- use the Wake-On-LAN feature to boot up PCs from anywhere on the network. Fully software configurable and Plug-and-Play compliant, the EtherFast installs in minutes. 32-bit multimaster concurrency technology lets it communicate directly with your PC's CPU, bypassing sluggish interrupts and I/O channels. The EtherFast is available in single, five, and economical 10 packs, making it the perfect choice for rapidly expanding networks. And each one comes with built-in support for the widest range of PCI motherboards, networking hardware, and software--which means you don't have to worry about compatibility. If your mission critical applications require blinding network speed, the EtherFast LAN Card is the best value for your networking dollar.

Note:Version 2 and earlier datasheets can be obtained by calling 1-800-LINKSYS

Voodoo5™ 5500 AGP

The Voodoo5 5500 AGP from 3dfx is the next stage in the evolution of ultra-high resolution gaming. Utilizing a revolutionary scalable architecture, the Voodoo5 5500 AGP features dual 3dfx VSA-100 chips for more 3D horsepower. Working in parallel, these processors produce over 667 Megatexels per second to create extraordinary 3D worlds in vivid 32-bit color. Boasting state-of-the-art Real-Time Full-Scene HW Anti-Aliasing, the exclusive T-Buffer Digital Cinematic Effects engine, 64MB of graphics memory for top performance and support for 2D resolutions as high as 2048x1536, the Voodoo5 5500 AGP gives today's PC gamers the raw 3D power and premium 2D performance they crave.

General Features	Benefits
64 MB of Graphics Memory	Enough memory to handle high-resolution gaming with large 32-bit textures and T-Buffer effects enabled.
667-733 Megapixels Per Second Fill Rate	Fill rate delivers frame rate. Virtually all games are limited by fill rate at resolutions of 1024x768 and above so the higher your fill rate the faster your game will perform. The Voodoo5 5500 AGP delivers the industry's highest fill rate, outside of the Voodoo5 6000, of course.
Real-time Full-Scene HW Anti-Aliasing	Removes annoying jaggies and flashing objects from the image to dramatically improve the visual quality of any title, new or old.
T-Buffer™ Digital Cinematic Effect: Motion blur	Can be used to smooth motion to improve image quality or to exaggerate motion for special effects.
T-Buffer Digital Cinematic Effect: Depth of Field Blur	Enhances reality by rendering a scene as if viewed through a real lens. Enables artistic depth of field effects often used in cinema, such as blurring all but the most important objects in a scene.
T-Buffer Digital Cinematic Effect: Soft Shadows	Adds soft edges to shadows to give them a much more realistic appearance.
T-Buffer Digital Cinematic Effect: Soft Reflections	Enables realistic reflections from semi-gloss surfaces like polished wood or stone and stainless steel.
FXT1™ and DirectX� Texture Compression	Dramatically reduces the size of texture images with no loss in visual quality; higher frame rates and better image quality. VSA-100 supports all five DXTC compression modes. Texture compression is critical for use of 2048x2048, 32-bit textures.
8-bit Palletized Textures	The most widely used form of texture compression; as with FXT1, palletized textures enable higher frame rates and enhanced image quality. Graphics cards that do not support palletized textures often experience severe game compatibility problems.
32-bit Rendering	Supports the highest possible image quality for the latest titles.
32-bit Textures	Allows use of the highest quality artwork seen in today's titles.
2k x 2k Textures	Allows you to enjoy the full impact of the most detailed artwork used by game developers; larger textures enable more complex, more stunning images.
24-bit Floating Point Depth Buffer (Z or W)	Virtually eliminates "Z aliasing," or having surfaces that should be visible being occluded and surfaces that should be occluded being visible.
8-bit Stencil Buffer	Improves image quality and realism by supporting a technique widely used by 3D content developers to create complex shapes such as shadows.
Fully integrated 128-bit 2D/3D/Video Accelerator	It's not just for gaming! Voodoo5 5500AGP enables outstanding 2D and video applications, too.
350MHz RAMDAC	Allows users to run at insane resolutions and incredible refresh rate --2048x1536 at 85Hz for example.
The industry's most complete API support: DirectX, OpenGL, and Glide	Assures the industry's highest title compatibility.
DVD hardware assist: planar to packed-pixel conversion	Assists DVD titles in running at 30fps without dropped frames.
Windows 95, 98, 2000	Allows you to run the Voodoo5 5500 AGP with standard operating systems.
Minimum system requirements: IBM or 100% compatible PC

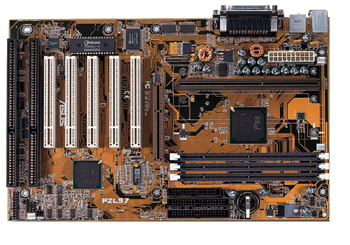

P2L97 Mainboard Specification

Processor Intel Pentium II Processor (233Mhz-333MHz) Coprocessor Internal Coprocessor of Pentium Processor Intel Chipset Intel's 440LX AGPset with I/O subsystems. Bus Architecture 32-bit PCI Bus and 16-bit ISA Bus Compatible Expansion Slots 5 x 32-bit PCI slots 2 x 16-bit ISA slots 1 x 32-bit AGP slot AGP Connetor Accelerated Graphics Port Connector Supports AGP 66MHz/133MHz (Sideband) 3.3V Device. Cache Memory 512K or 256K Pipelined Burst Level 2 cache in Pentium II CPU cartridge. System Memory Three 168-pin DIMM Sockets to Support (8, 16, 32, 64, or 128MB 3.3V DRAM or SDRAM) Total Memory Capacity: 384MB Max. On Board Super I/O 1 Floppy Port (up to 2.88MB, Japan 3 Mode Floppy Supported) 2 Serial Ports (16550 Fast UART Compatible) 1 Parallel Port (ECP, EPP Port) IrDA TX/RX Header (Optional) On Board PCI IDE Dual Channel UltraDMA/33 Bus Master IDE ports (Support up to 4 IDE devices and LS-120MB Floppy Drive) Support: PIO Mode 3 & 4 DMA Mode 2 U-DMA/33 Greater Than 8.4GB HD, ATAPI IDE CD-ROM Support. ATX Power Connector 3V, 5V and 12V 20-Pin ATX Power Connector. Soft Power Support Voltage Regulator Built in Switching Voltage Regulator to Support 1.8V to 3.5V BIOS Award AGP BIOS with ACPI, DMI, Green, Plug and Play Features 1M-bit Flash EPROM Board Size ATX Form Factor 19.1cm x 30.5cm (7.5" x 12") ATX Double Decker 2 x USB Ports, 1 x PS/2 Keyboard Port,1 x PS/2 Mouse Port,1 x Parallel Port,2 x COM Ports. Options H/W Monitor: Optional LM78 to support Fan Status Monitoring and Alarm, CPU Voltage, System Temperature Monitoring and Alert. S/W LanDesk Client Manager to Provides Total S/W & H/W Server or Desktop Hardware Monitoring Solution. Retention Mechanism & Heat Sink Support Brace.
