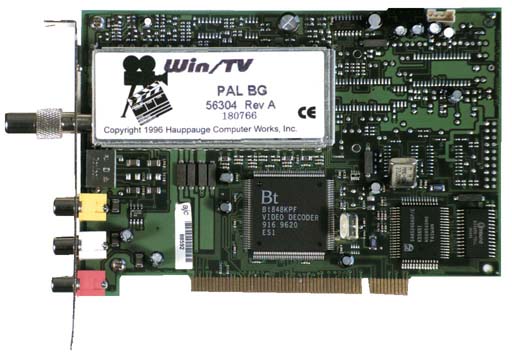

Technical Overview of the Hauppage WinTV-pci and WinCast/TV:
|
 |
| The WinTV PCI is a
digital video in-lay board with TV, image and clip capture plus Intercast data or Teletext
data reception. A bus-master PCI slot is required, plus a VGA card with DirectDraw 3.0 (or
later) and Windows 95. In addition to displaying live video in a window, individual video
images and video clips can be digitized and stored to disk. Live video is digitized from either the built-in 125-channel cable TV
tuner or an external video-input source using high quality 4:2:2 video sampling. The
digitized video is sent over the PCI bus in your PC into the memory of your VGA display
adapter. This allows the digitized video to move efficiently, and takes a fraction of the
available bandwidth of the PCI bus. |
Your PC’s VGA
graphics adapter needs Windows 95 DirectDraw support. VGA cards tested for compatiblity
with the WinTV PCI boards are:
- S3 Trio64V+,Trio32/64, Vision968 and ViRGE
- Cirrus Logic 5446 and 5464 dual monitor display
adapters
- Matrox Millenium and Mystique
- Hercules Dynamite 128 (and other ET6000 based VGA
cards)
- ATI Mach64 and Rage II series of graphics display
adapters.
|
|
Hardware
Specifications:
|
| General specifications |
| Video digitized using YUV
4:2:2 color format at 60 fields per second (50 fps in PAL.) Maximum digitized image size:
640x480 for NTSC video sources, 758x576 for PAL. |
| Memory segment and
interrupts |
| Requires one interrupt
and a memory segment, which are automatically assigned by Windows 95 Plug-and-Play setup.
Memory segment can be manually adjusted by the user. |
| VGA Compatibility |
All of the WinTV PCI
boards work with most PCI VGA cards in 640x480, 800x600, 1024x768, 1280x1024 with vertical
refresh rates up to 125Hz. Supports color modes up to 16 million colors. The 256 color
mode is not recommended, since in this mode the video image is palettized, causing color
distortion.
Does not require connections to the VGA card, either internal or external. Requires that
the VGA card have an updated DirectDraw driver. |
| Video Clip Capture |
| Save continuous video at
320x240 at up to 30 frames per second. (Actual save capability is determined by the speed
of the PC and the hard disk drive.) Creates Microsoft Video for Windows compatible AVI
files in an uncompressed YUV format. For use
with video conferencing applications such as CU-SeeMe, VDOnet, VocalTec's IPhone,
Connectix VideoPhone, Smith Micro's AudioVision, Vivo, etc., the frame rate is set by the
video conferencing application and the video format used for digitizing. See chart below
for digitizing formats supported and maximum frame rates. |
| Video Digitizing Formats
and Maximum Frame Rates |
| Color format |
Capture
resolution |
Frames
per second |
Notes |
| RGB32 |
160x120 |
15 |
... |
| RGB24 |
160x120 |
15 |
... |
| RGB16 (565) |
320x240 |
15 |
... |
| RGB15 (555) |
320x240 |
15 |
... |
| RGB 8-bit dithered |
320x240 |
30 |
... |
| YUY2 4:2:2 |
320x240 |
24 |
UYVY by byte swapping |
| BtYUV 4:1:1 |
320x240 |
30 |
3 words pack 8 pixels |
| YCrCb 4:2:2 |
320x240 |
24 |
... |
| YUV12 |
320x240 |
24 |
Planar 4:1:1 |
| YCrCb 4:1:1 |
320x240 |
15 |
... |
| YUV9 |
320x240 |
30 |
Vertical subsampled 4:1:1 |
| Audio output |
Unamplified
"line-out." Output is through 1/8" female stereo jack. Line-out is
compatible with "line-in" on most 8 and 16-bit sound cards and stereo systems or
amplified speakers.
|
USRobotics
56K* Internal Faxmodem ISA |
|
|
|
 |
|
|
|
|
 |
Operating Systems
Modem is compatible with Windows NT 4.0, Windows 2000, Windows 98, and Windows 95. System Requirements
IBM-compatible PC with 486DX/33 or Pentium processor, 16 MB RAM, 2 MB hard drive space,
CD-ROM drive, sound card, 56K local analog phone line, and 56K V.90 or x2
technology-capable service provider. Certified for use in the U.S. Requires an available
ISA-bus slot.
Form Factor
Internal with controller and ISA jumpers; 16-bit ISA bus.
Communications Software Included
U.S. Robotics Connections(tm) CD that includes RapidComm(tm) fax and data communications
software for Windows NT 4.0, Windows 2000, Windows 98, and Windows 95.
Package Contents
Ships with RJ-11 phone cord, Quick Installation Guide, Universal Troubleshooting Guide,
and Connections CD.
Warranty Information
U.S. Robotics warrants to the original purchaser that this product will be free from
defects in materials and workmanship for a period of five years from the date of purchase.
Click here for full warranty information. |
|
Model number

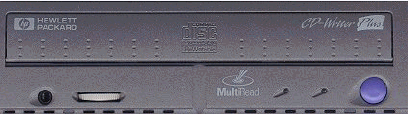

HP CD-Writer Plus 8250i
Drive: C4464A, C4464B
Serial number location
The serial number is on the
main label on the top of the drive.
Product description
The HP CD-Writer Plus 8250i
drive is an internal multi-media, multi-purpose CD-RW drive that stores and transports
data, photos, music, video, and more with unprecedented speed--up to 24x read and up to 4x
write speeds.
The HP CD-Writer Plus 8250i
drive includes the following:
- Internal drive
- IDE cable
- Installation guide (CD)
- Adaptec Direct CD and Easy CD Creator
- One blank HP CD-R Recordable disc
Features
| Interface |
EIDE-(ATAPI),
MMC compliant |
| Loading
mechanism |
Tray
Loader |
| Transfer
rates |
Read:
Up to 24x (1x=150 KB/s)
Write: 4x (CD-R); 4x (CD-RW) |
| Buffering |
2
MB (6 sec at 2x speed) |
| Write
methods |
Track
at once
Disc at once
Incremental (packet)
Multisession |
| Write
verification |
Automatic
power control to dynamically adjust laser with power. Data read-after-write verification
by host initiated procedures. |
| Format
and ECC standard |
Red,
Yellow (Mode 1 and Mode 2), Orange, and Green (Mode 2 form 1 and Mode 2 form 2) books. |
| Logical
recording format |
UDF
and ISO 9660 |
| Encoding
method |
EFM |
| Media |
CD-RW
or CD-R |
Performance information
| 1x
read/write |
Audio:
175 KB/sec. Data Mode 2,Form 2:171.1 KB/sec. Data (Mode 1 or Mode 2,Form 1):150 KB/sec. |
| 2x
read/write |
Audio:
350 KB/sec. Data Mode 2,Form 2:342.2 KB/sec. Data (Mode 1 or Mode 2,Form 1):300 KB/sec.io |
| 4x
read/write |
Audio:
700 KB/sec. Data Mode 2,Form 2:684.4 KB/sec. Data (Mode 1 or Mode 2,Form 1): 600
KB/sec.digital audio) |
| 6x
-24x read only (CAV) |
Data
Mode 2, Form 2:2395 -5475 KB/sec. Data (Mode 1 or Mode 2, Form 1): 2100 - 4800 KB/sec. |
Minimum burst transfer rate
2.5 MB/sec.
Seek time
150 ms one-third stroke
Spin-up time
2 seconds max.
Initialization time
5 seconds max.
Disc Finalization time
2 minutes typical at 2x
Software information
Adaptec Direct CD and Easy CD Creator
It is easy to write data, photo, audio and
video files to a CD. With one-step drag-and-drop, files can be stored on CD in seconds and
easily make backup copies of any CD.
Reliability
Audio, Data Mode 2, and Mode 2
Form 2-Less than 1 uncorrectable frame in 109 bits read. Data Mode 1 and Mode 2
Form 1 - Less than 1 uncorrectable frame in 1012 bits read.
