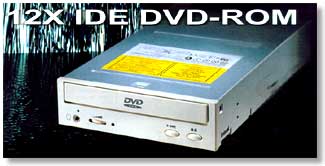

12X IDE DVD-ROM Drive
Internal Model
OIP-DV1200A (12X DVD / 40X CD Speed)
SPECIFICATION |
|
| Interface and Type | ATAPI/E-IDE (Internal Type) |
| Drive Performance | Disk
Data Capacity (1) DVD-5..........(3) DVD-10 (2) DVD-9..........(4) DVD-18 Data Transfer Rate 40X CD: 6000KB/S..........12X DVD: 16200KB/S Access Time 40X CD: 95ms..........12X DVD: 95ms Data Buffer Size: 512KB Reliability (MTBF) 125,000hrs (POH) |
| Compact Discs | Disc Size - 80mm & 120mm discs Disk Type CD-Audio, CD-ROM (Mode 1 and Mode 2), CD-ROM/XA (Mode 2, form 1 and form 2), CD-I, Photo CD, CD-Extra, CD-RW, I-Trax DVD-ROM (Single-layer, Dual-layer of OTP/PTP) |
| Audio | Output Port - Headphone jack on the front panel - Analog line-out connector on the rear end of the drive - Audio sampling frequency 44.1Khz - Digital line-out connector on the rear end of the drive |
| Power | Voltage +5V �5%, 12V �10% |
| Physical Characteristics | Front
Panel Load/Eject button, Play/Skip button, Disk Eject/Busy LED indicator, 3.5mm stereo Headphone jack, VR control knob Rear Panel Power connector, IDE interface connector, Analog audio output connector, Master/Slave Jumper, Digital audio output connector |
| Mount System | Horizontal and vertical |
| Weight | 1.3 KG (2.5 lbs.) |
| Dimension | 200.5mm (L) X 146mm (W) X 41.5mm (H) (7.9 inch x 5.7 inch X 1.6 inch) |
| Environmental | Temperature -Operating: +5�c to +45�c -Storage: -10�c to +55�c Humidity -Operating: 20% to 80% RH -Non-operating: 20% to 80% |
Decoder Board - Dxr3
CT7230 / 7240 / 7250 / 7260
General
 |
DynamicXtended
Resolution™ (Dxr3) picture-enhancement technology for playback of high-definition
video with smoother full-screen video images |
|
6-tap filtering and scaling
techniques virtually eliminates combing effects and artifacts |
|
Supports Windows�
resolutions of up to 1600x1200 |
Connectors
|
Onboard connectors for
audio output to sound card and audio input from PC-DVD drive |
|
External connectors for
AC-3� coaxial S/PDIF out, Dolby Digital surround Line Out, VGA output, VGA input, and
S-Video output |
TV output
|
NTSC at 640x400 and 600x400
at 60Hz |
|
PAL at 640x480 and 800x600
at 50Hz |
|
Composite and S-video signals |
