Patrick Fan's Home Page
 e-mail : [email protected]
Freeware
Description
Release Dates

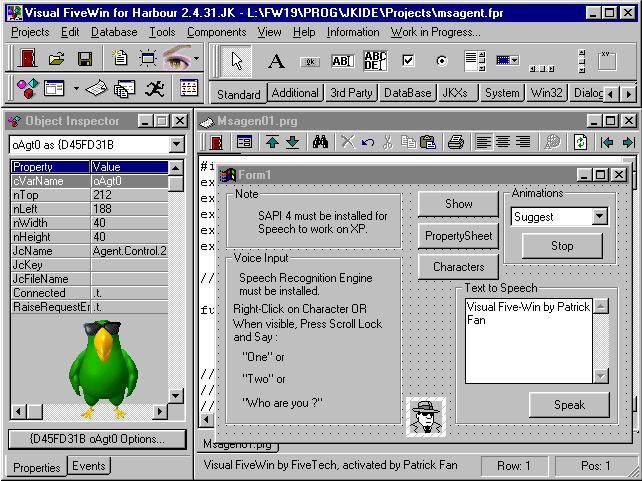

Visual FiveWin
2.0 (16 bit)
2.4 (32 bit)

featuring

Form Designer
Object Inspector
to build
forms and controls

Project Manager
to build
exe, dll, lib,
fivehx.lib, fivehmx.lib,
fwide.exe, fwide32.exe,
and FW sample prgs.

Code Editor
to build
event-driven programs

Resource Manager
to view and build
resources in
dll, exe and folders

Database Explorer
to explore
DBF and SQL Databases using RDD and ADO

Tools
to view
Ocx
properties, methods,
events & constants,
emf, wmf, pictures,
html, pdf, dwg,
media files,
DBF & SQL tables
etc.

developed
by

debugging and modifying

Visual.exe
of
FiveWin 2.0d

using

JKRc32.dll,
JKROcx.dll, and
JKR Libraries.
  • 08/08/2009
    • Visual FiveWin Release 2.4.91(32 bit)/ Release 2.0.91(16 bit) is now available.
    • Unicode FiveWin Release 2.4.91 without using any one of the FiveTech's libraries is now available below.
    • Refer to the Main Page for a history of the Changes made on different releases

      • as well as the FiveWin Bugs that were fixed.
    • A much simplified version of Visual FiveWin with much less features is built from the modified free source codes of Build 83 by Antonio Linares, and is available for sales with FiveWin for Harbour at FiveTechsoft.com.

      • Those source codes are also available at http://code.google.com/p/visualfw.
    • Visual FiveWin(Jkide32.exe) and Unicode FiveWin(Jkide32u.exe) are now built with xHarbour 1.2.1 Rev. 6406 (26/3/09) and enhanced FWH2.4 without using fivehc.lib and fivehx.lib.
    • Includes latest bug fixes and enhancements.
    • Patch libraries (Build 91) and source codes (Build 83) included in 32 bit jkide91x.zip and 16 bit jkide91.zip.
    • METHOD SetFormat and cTime added to TDatePick Class.
    • Fix another long time undiscovered bug of TPrinter():New().
    • Speed up reading byte arrays in JComObject class.
    • Fix serious resource leaks of Win32 ToolTips.
    • What's New in FiveWin 9.06 June 2009 added to "Help" submenu.
    • What's New in FiveWin 9.07 July 2009 added to "Help" submenu.

    Please refer to the Main Page for Revision History and Summary of Changes.

  • Main Features :
    • IDE
      • for building FiveWin Executables (exe),  Libraries (lib) and Resource dll (dll).
      • includes sample project to rebuild FiveHx.lib (necessary whenever there is a change in the PCode Version in xHarbour eg. 0.80 upto 0.99.4 used version 5 , but 0.99.51 uses version 7).
      • includes sample project to build FW sample programs in the Samples directory.
      • ideal for test running small programs written in FiveWin.
      • Test-Run ActiveX Controls (ocx) and view its properties, methods, events and constants.
    • Inspector
      • View WMF, EMF and Placeable WMF.

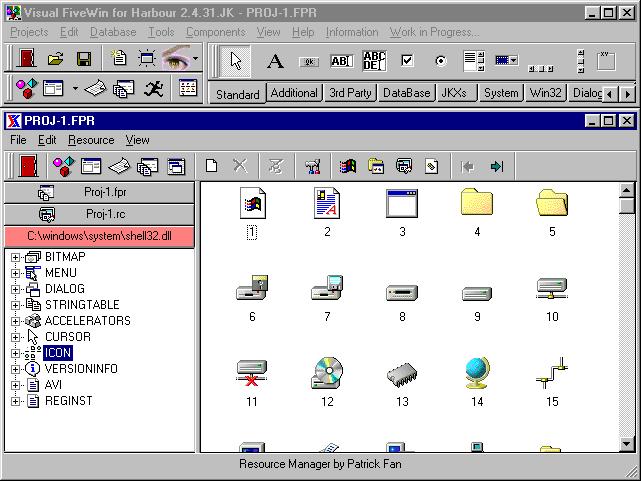

      • View resources stored in dlls using Resource Manager.
      • View ActiveX Objects' properties, methods, events (including parameters)and constants by inspecting the type libraries stored in olb, tlb, dll and ocx files using Resource Manager.
      • Inspect SQL databases using Database Explorer.

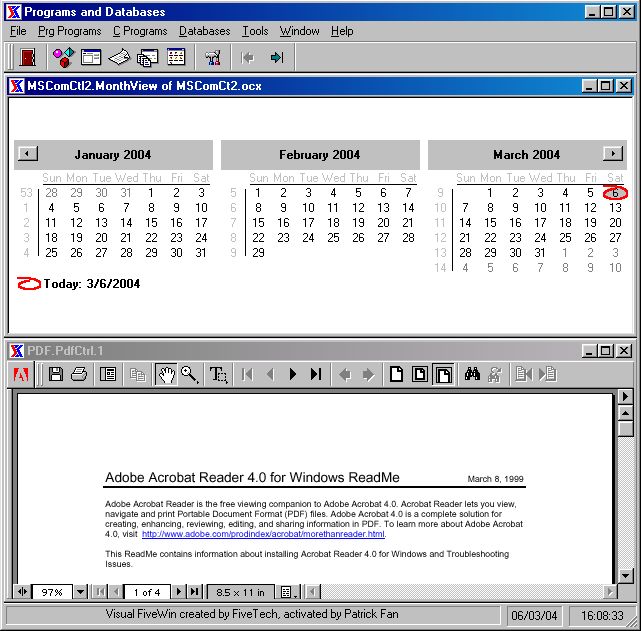

    • Tools
      • RichText Editor using RichTx32.ocx ( comes with Visual Studio )
      • Calendar using MsComCt2.ocx ( comes with Visual Studio )
      • HTML Editor using dhtmled.ocx ( comes with IE 5 and newer versions )
      • PDF Viewer using pdf.ocx ( comes with Adobe Acrobat Reader if installed )
      • Shockwave Movie (*.swf) Viewer using flash.ocx.
    • Info
      • FiveWin Version History starting from 1.4.
      • Brief chronological history of xBase products.
  • Differences between FWide / FWide32 and JKide / JKide32
    • FWide.exe and FWide32.exe are produced by the modified versions of the original codes in the Visual subdirectory of FiveWin 2.0d , with most bugs fixed. They can be produced without using any patch libraries , but cannot run with expected result using recent FiveWin versions. When compiled with patch libraries, it may work with most FiveWin standard controls.
    • JKide.exe and JKide32.exe are enhanced versions of Fwide and Fwide32 with some additional JK controls and additional features. You can create, modify, save and reload forms for all the installed controls , and you can build exe for all non-JK controls with the free add-on patch libraries. However, you cannot build exe for forms containing JK controls.
    • Please refer to the table below for details.
  • Files available for download:
    • JKide91x.zip (2.4.91 - 08/08/09)- jkide32.exe(ANSI version) and jkide32u.exe(UNICODE version) for (x)Harbour built with xHarbour 1.2.1 Rev. 6406 (26/3/09) and enhanced FWH2.4, without using any one of the FiveTech's libraries, with patch libraries and with source codes.
Jkide
Jkide32
Fwide / Fwide32
built with Patches
Fwide / Fwide32
built without Patches
Project Manager
build
 exe with Forms
OK
OK
Failed
exe without Forms
OK
OK
OK
FiveHx/FiveHmx
OK
OK
OK
dll
OK
OK
OK
library
OK
OK
OK
fwide/fwide32
OK
Absent
Absent
fw sample prgs
OK
OK
OK
Form Designer
OK
OK
Buggy
Control ToolBars
FW+JK+Ocx
FW controls
some FW controls
Object Inspector
OK
OK
Buggy
Code Editor
OK
OK
Buggy
Resource Manager
Available
Absent
Absent
Tools
Available
Absent
Absent
Database Explorer
Available
Absent
Absent
Source Codes Programs
Partly Available
Available
Available
Patches
Not Available
Not Available

08/08/2009

14/06/2009

11/04/2009

29/03/2009

26/02/2009

29/01/2009
08/01/2009


27/11/2008

16/10/2008

20/09/2008

24/08/2008

28/05/2008

19/04/2008
01/04/2008

29/01/2008
04/01/2008


09/12/2007

15/11/2007

18/09/2007

25/07/2007

02/05/2007


21/08/2006

25/07/2006
13/07/2006

28/06/2006
01/06/2006

05/03/2006


02/12/2005

04/11/2005
01/11/2005

04/10/2005

16/09/2005

08/08/2005
05/08/2005

23/07/2005

29/03/2005

13/02/2005

02/01/2005


02/12/2004

02/11/2004

04/10/2004

11/09/2004

28/08/2004
07/08/2004

27,16,06
/07/2004

26,15,07
/06/2004

30,22,14,06
/05/2004

28,21,14,06
/04/2004

30,22,15,8,1
/03/2004

23,15,08,01
/02/2004

26,19,12,04
/01/2004


27,22,15,05
/12/2003

29,23,16,02
/11/2003

27,19,11,06
/10/2003

28,21,11,01
/09/2003

29,24,19,17
/08/2003

08/05/2003

12/04/2003

22/03/2003
JKInspector

developed
by

FiveWin 1.9.2,
JKRc32.dll,
JKROcx.dll, and
JKR Libraries.
No longer Available

07/08/2004

05/02/2003

31/03/2002

24/10/2001
