Service and Repair of 16 mm cine camera Kinor-16 SX-2M Examples to faults of the movie camera |
|||
|
|||
The camera can have similar problem, without service long time. All this faults maintainable. |
|||
| The camera storage a long time at dampness. . |
|
||
| The mechanism of camera work without oil a some time. |
- |
||
| The broken gear of base axis of
mirror disk. The camera had jammed mechanism. The user connect not compatible magazine. |
 |
||
| The zoom lens have broken stop.
|
 |
||
| The propeller shaft yoke of registration pin of transport
mechnsim had big surface deterioration and big gap.
|
 |
||
| The film magazine have broken warp thread of belt. |  |
||
| The broken gear of film magazine. The mechanism of magazine had big braking torque.
|
 |
||

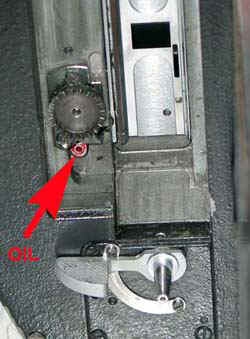

| The current maintenance of
mechanism of Kinor camera. The base points of oil gun lubrication ( 2-3 drops of lubricating liquid)
|
|||
|
|||
