Vickers Valkyr Armoured Personnel Carrier
Vickers Valkyr Fire Support Vehicle

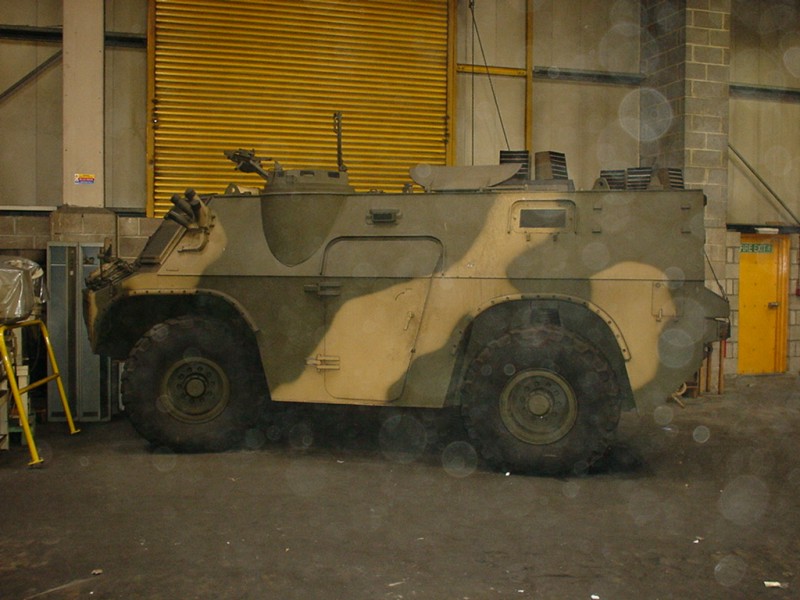

Vickers Valkyr APC
Copyright �
Background
The Vickers Valkyr was originally conceived as the BDX Mk 2. It is an upgrade of the BDX (Timoney Mk V) with a re-designed front hull, a diesel engine and some improvements to it's suspension.

It was proposed as a light APC for the British Army, who eventually opted for the far inferior, and cheaper, Saxon APC.

It did achieve an export order from Kuwait, although the Iraqi invasion and subsequent Gulf War put a stop to any further orders.

The Valkyr in two versions, an APC and a Fire Support Vehicle (FSV). The FSV variant was slightly lower than the APC and mounted a Cockrell Mk. 3 90mm anti-tank gun.
Vehicle Specification
Crew 2+10 Including Driver and Gunner/Commander
Armamentt Twin 7.62mm Machine Gun Timoney Turret
Unladen Weight .Kgs .
Combat Weight 9,979 Kgs .
Length 5,080mm .
Width 2,440mm .
Height 2,030mm Hull ?mm Turret
Max. Speed >88 kph Open road
Cruise Speed . kph .
Range >.Kms Open road
Max. Vertical Step . mm .
Max. Trench . .
Ballistic Protection 7.62 mm AP All Round
Ballistic Protection . .
Ballistic Protection 9 kgs TNT Anywhere under the Vehicle
Engine Chrysler 360 CID V8 180 bhp/.Kw
Transmission Allison AT-540 4 Speed Automatic
