The SET 7 trainer / liaison aircraft



The most successful of all SET designs was undoutably the SET 7. It started to take shape on the drawing boards in early 1930, as a two-seat biplane with a fixed undercarriage. Early models were built entirely of wood and covered with fabric, but later version had a metal fuselage. The first order came in December 1930, when 30 SET 7's were bought by the ARR for advanced training and liaison duties. By early 1932, the SET 7's had proven to be so useful that a second batch of 20 planes was ordered. All these airplanes were powered by a British Armstrong-Siddeley "Jaguar" IIIA radial engine rated at 365 HP.
In January 1934, the ARR requested that 20 improved observation and training aircraft, designated as SET 7K, be built. A more powerful engine was considered to be the plane's greatest need, so SET engineers chose the new IAR K7 as the new powerplant. This engine was the upgraded Romanian version of the French Gnome & Rhône 7Ksd radial engine, and it could produce 420 HP. Also, these planes were to be armed with a fixed forward-firing Vickers 7.7 mm machine gun and a twin rear-facing Lewis machine gun. Three more versions followed : SET 7KB, SET 7KD and the SET 7H.





The SET 7KB was a development from the SET 7K, equipped with Barbieri type bomb racks, which allowed it to carry small bombs. SET 7KD was a dedicated liaison and army cooperation aircraft destined to be used by army divisions. It was armed only with the rear-facing twin machine gun. The SET 7H was a seaplane version, developed for reconnaissance and sea rescue missions. .

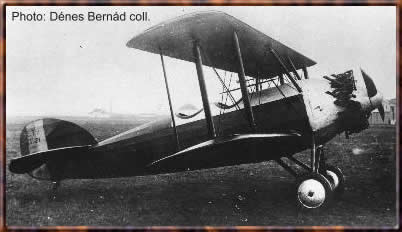

  SET 7 in flight
8 of these seaplanes were still in use in 1941, but were more often used with wheel undercarriage.
Alltogether, from 1931 to 1937 a total of 123 SET 7's ( the figure includes all versions ) were built. It is an quite an impressive number for inter-war Romania, which demonstrates the plane's qualities.

Technical data for the SET 7KB

Wingspan
9.8 meters
Wing area
26.6 square meters
Length
7.15 meters
Height
3.26 meters
Weight ( empty )
1115 kg
Weight ( loaded )
1780 kg
Maximum speed
260 km/h
Range
580 km
Maximum operational ceiling
5500 meters
Engine
IAR K7 rated at 420 HP
Armament
One Vickers 7.7 mm machine guns mounted in the nose plus one twin Lewis 7.7 machine gun
Crew
2
Payload
Up to 288 kg of bombs ( 24 x 12 kg bombs )
Numbers built
123 ( including all versions )
