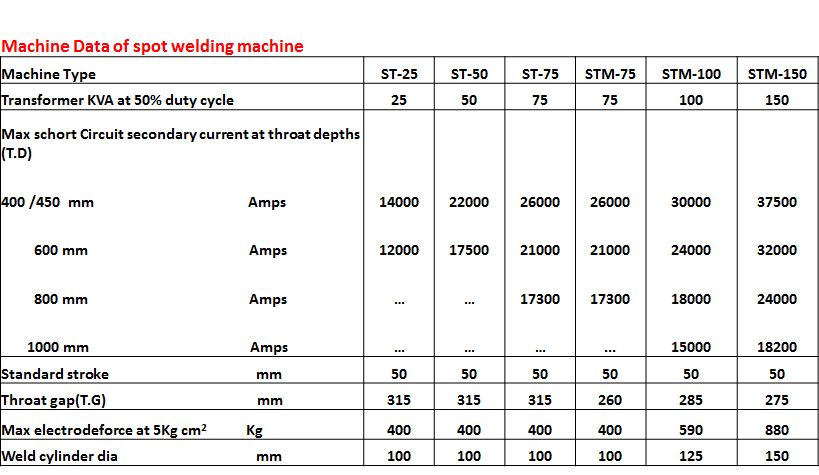

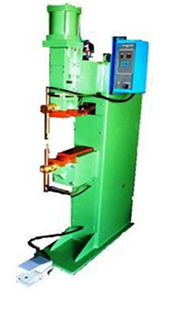

Spot Welding Machine
|
|
|
- Features -
Rigid frame.
Quick response welding head.
Low impedance secondary circuit.
Water cooled encapsulated AC transformer.
Microprocessor based Resistance Weld Control
|
↑ TOP
|

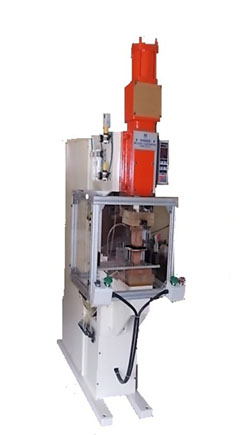

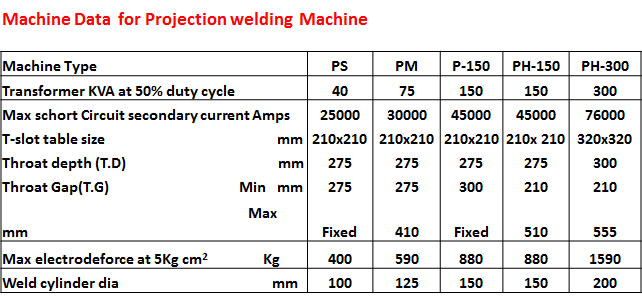

Projection Welding Machine
|
|
|
- Features -
Rigid frame.
Pressure Head Assembly with low Inertia Ram.
Fixed or adjustable bottom arm.
Low impedance secondary circuit.
Water cooled encapsulated AC transformer.
Microprocessor based Resistance Weld Control.
|
↑ TOP
|

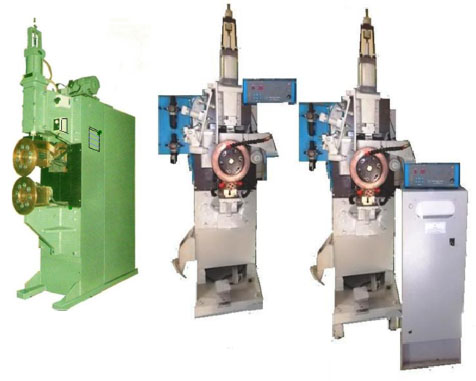

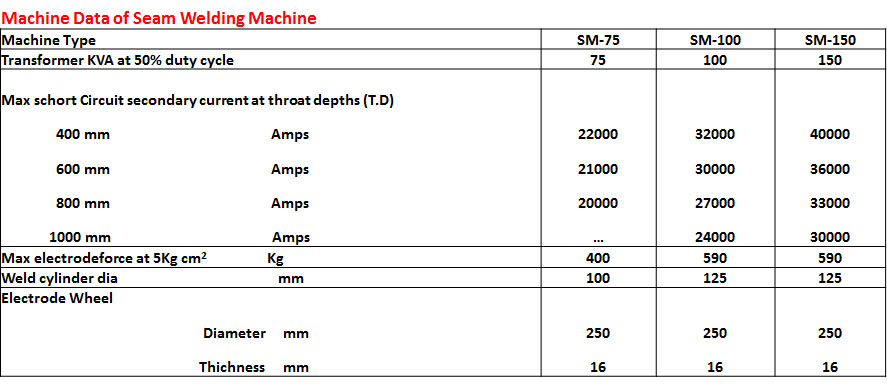

Seam Welding Machine for Radiator Panel and Fuel Tank
|
|
|
- Features -
Rigid frame.
Pressure Head Assembly with low Inertia Ram
Fixed or adjustable bottom arm.
Low impedance secondary circuit.
Water cooled encapsulated AC transformer.
Microprocessor based Resistance Weld Control
Seam Welding Types:
Longitudinal Seam welding.
Circumferential Seam Welding.
Mash Seam Welding.
Universal Seam Welding.
Narrow Track Seam Welding.
Electrode Wheel Drive Option :
Knurled dressing Wheel Drive .
Electrode Drive by Gear.
Top Electrode Drive, Bottom Electrode drive or Differential Drive.
|
↑ TOP
|

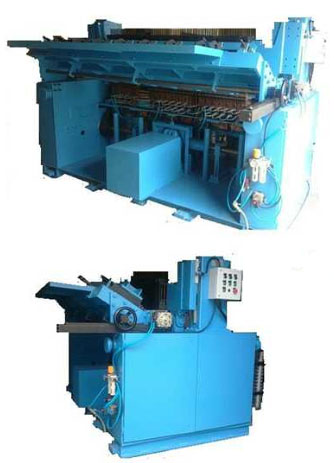

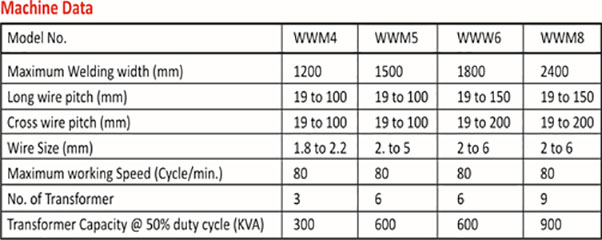

Wire Mesh Welding Machine
|
|
|
- Features -
Wire Mesh Welding Machines are design to weld M. S. as well as G. I. material for wire application.
Strong Fabricated Frame structure for taking heavy welding load & vibration.
Pitch adjustment in cross & longitudinal direction.
Auto indexing arrangement for cross wire as well as for long wire.
Machine works smoothly at high speed.
Machine has water cooled transformers each of 100KVA capacity.
VFD drive is provided for controlling the speed.
|
↑ TOP
|

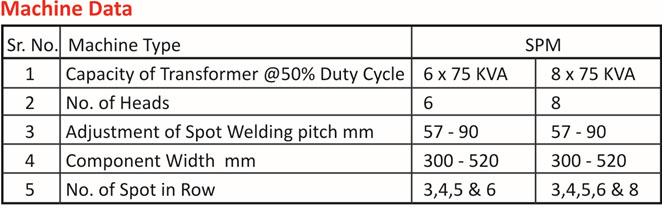

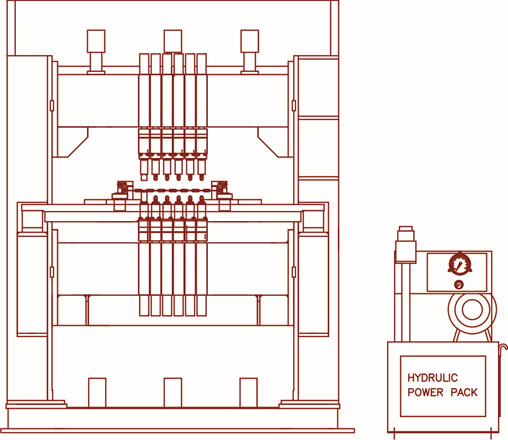

Multi Spot Welder
|
|
|
- Features -
Multi Spot Welding Machine design for welding of radiator Panel.
Strong Fabricated frame structure.
Auto Index Arrangement.
Machine has water cooled transformer.
Control System through PLC & HMI.
|
↑ TOP
|

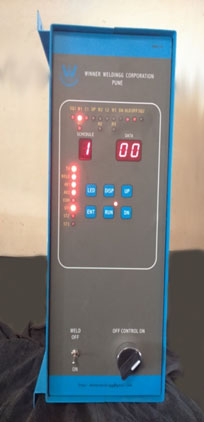

Welding Timer

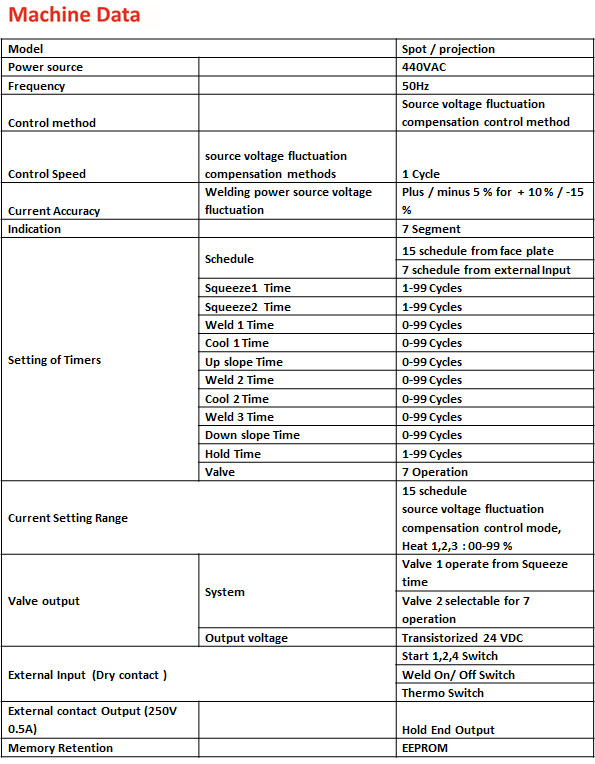

AC Resistance Welding Control for Spot and Projection
|
|
|
- Features -
Indicates the schedule set No., set time, etc with 7-segment LED.
Can store up to 15 schedules according to material to be welded.
Equipped with up-slope and down-slope functions.
Supplies a stable welding current by sources voltage fluctuation compensation method.
Stores all data to EEPROM.
Have seven functions by the solenoid valve1, valve2.
|
|

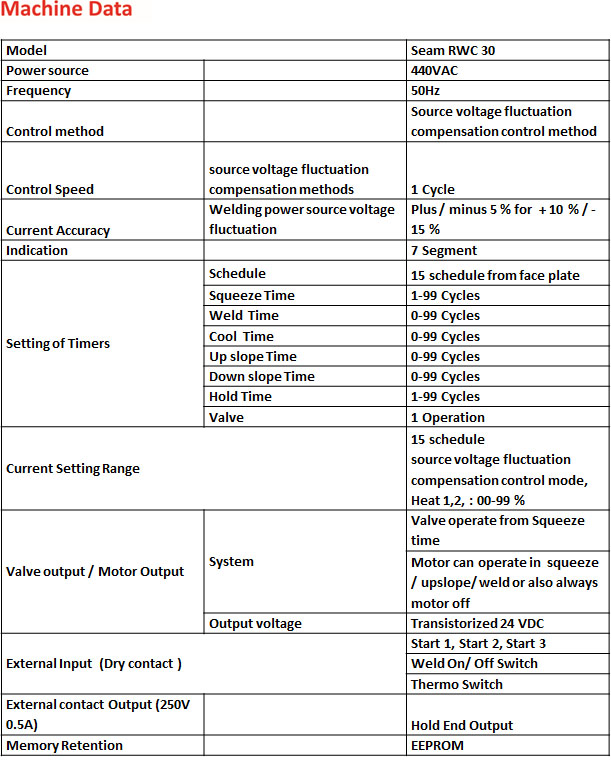

AC Resistance Welding Control for Seam
|
|
|
- Features -
Indicates the schedule set No., set time, etc with 7-segment LED.
Can store up to 15 schedules according to material to be welded.
Equipped with up-slope and down-slope functions.
Supplies a stable welding current by sources voltage fluctuation compensation method.
Stores all data to EEPROM.
Have 4 functions of motor......
1. Motor will not run.
2. Motor will run at Squeeze,
3. Motor will run at upslope,
4. Motor will run at weld.
|
↑ TOP
|
|
|
|
- Features -
Water cooled encapsulated design.
F class Insulated CU strip.
Voltage Tap Selection.
Built in thermostat for over heat protection.
Specially design transformer for spot, projection, seam,
Flash butt, Wire mesh .
- Specifications -
Input voltage 440 VAC.
Frequency 50 Hz.
Duty cycle 50.
Spot welding transformer range 25 KVA to 300 KVA.
Projection welding transformer range 40 KVA TO 300 KVA.
Seam welding transformer range 75 KVA TO 200 KVA.
Flash butt welding transformer 50 KVA TO 1200 KVA.
Wire Mesh transformer 75 KVA TO 100 KVA
↑ TOP
|

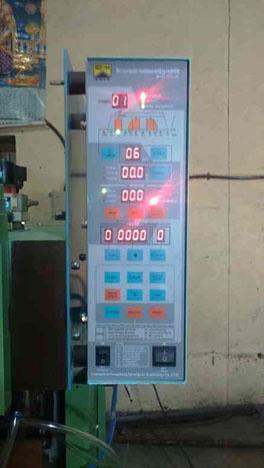

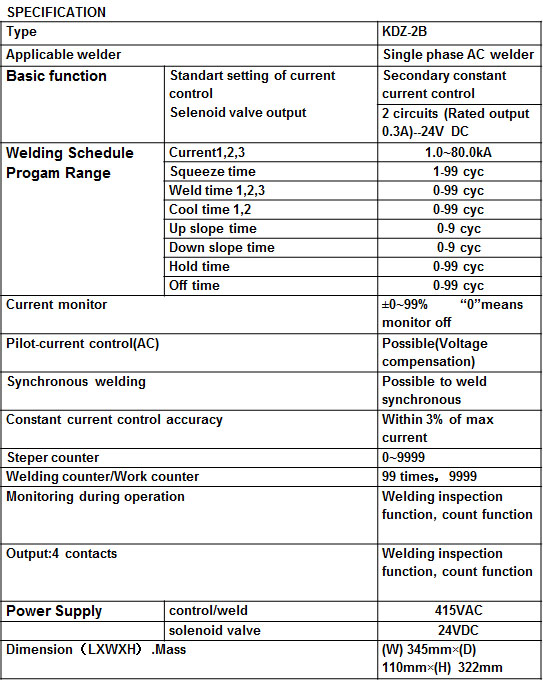

Special Purpose Resistance Welding
AC Welding Control With secondary and primary feed back
|
|
|
- Features -
AC resistance welding controller based on microcomputer.
LED display welding current, welding specification numbers set time.
It can memorize 15 different materials and thickness of the work piece welding specification.
Paragraph 3 is energized mode, a current ramp slow down function.
The use of primary, secondary constant control mode, the power supply voltage variation. Compensation method guaranteed provides a stable welding current.
It having a current monitoring, power angle monitoring.
Power consumption less than 15W (standby).
|
