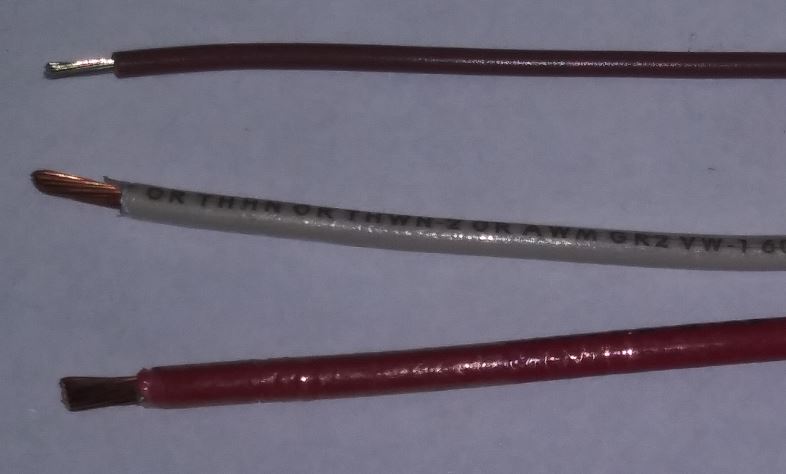

Wiring
Wiring Chart based on Current Rating
| Part Number |
Wire Gauge |
Current Rating (0-10') |
Current Rating (10-20') |
Cost per foot |
| Please call for any job over 20' or over 150A. 10' minimum order. |
|---|
| *Reference only: Please consult licensed electrician for any new job |
|---|
| WR-12G |
12 |
20A |
N/A |
$0.15 |
| WR-10G |
10 |
35A |
20A |
$0.20 |
| WR-08G |
8 |
50A |
35A |
$0.35 |
| WR-06G |
6 |
85A |
50A |
$0.60 |
| WR-04G |
4 |
150A |
105A |
$0.85 |
| WR-02G |
2 |
200A |
150A |
$1.30 |
