Enfield
No 2, Mark I |
Webley
Mark 4 |
Length |
26 cm |
Weight |
0.77 kg |
Calibre |
0.38 in (9.65 mm) |
Cylinder |
6 rounds |
Muzzle Velocity |
180 metres per second |
|
27 cm |
0.77 kg |
0.38 in (9.65 mm) |
6 rounds |
180 metres per second |
|
As
long term suppliers to the Services Webley were somewhat bemused when
their Mark 4 was rejected for British service pre-war especially as the
Enfield was a copy. Demand during 1939 to 1945 though ensured it was
destined for major use.
The British (therefore Australian)
Army retained its faith in the revolver throughout the war, despite
introducing the semi automatic Browning for certain specialist units.
The Enfield was officially the standard sidearm, but as the Army
increased in size the Webley was obtained to make good the shortfall.

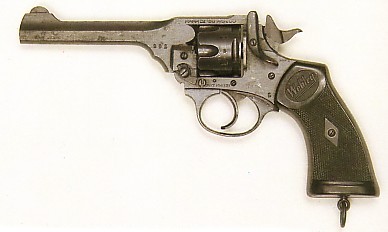

The Webley was a standard design, with
a double action trigger. The hammer could be pulled back to the cocked
position where it would lock, requiring only a light pressure on the
trigger to release it. The Enfield deleted the hammer comb, so could
only be fired by applying full pressure on the trigger. This amendment
was made for those men serving in armoured vehicles where the cramped
conditions meant the hammer was constantly being snagged or struck.
It was a traditional safety precaution
with revolvers to carry the weapon with the hammer on an empty chamber.
This meant if a sudden blow forced the hammer forward there was no
chance of a shot being fired. 18 rounds were carried, six loaded (less
one as above) and twelve in a small belt pouch. At the outset of the war
the revolver was widely distributed to tank crews, despatch riders, MPs
and a host of others. Every officer carried one also. The Sten 9 or
Owen) gradually replaced it in many areas, but tank crews could only
find space for one Sten so wore their holsters as well. |
|
|
The SMLE (re-designated the No 1) rifle and bayonet combination
remained almost unchanged from WWI as did the Mills Bomb (grenade). The
SMLE was joined by the newer version the No.4 rifle (above). Both
models were made under licence in Australia at Lithgow. They are discussed in more depth at
Weapons
in the WWI section. |
OWEN
MACHINE CARBINE prototype
.22 cal |
In July 1939 a 24 year old
by the name of Evelyn Owen took his prototype of a .22 calibre submachine
gun (sometimes called a machine carbine) to the Victoria Barracks in
Sydney. It was inspected by Ordnance Officers. It could be made with
little special equipment using the parts from a .22 calibre rifle. The
Officers told Owen that in would not be accepted by the Army because it
was .22 calibre. Owen said that the gun could be easily adapted to larger
calibres and that he only chose .22 for convenience. The gun was rejected
because, before World War II the Australia Army did not realise that the
submachine gun was very important in attacking and defensive roles. Also,
the British Army hadn't adopted the submachine gun into their Army, but .
. . the war started, we needed weapons and more importantly we needed
jungle fighting weapons, so . . .

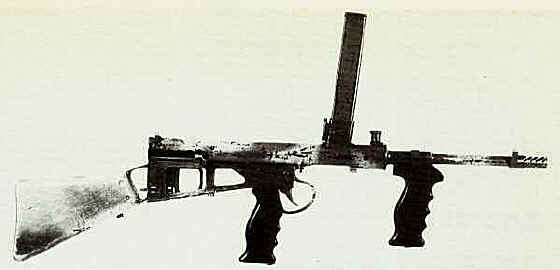

Machine Carbine, 9mm
Owen, Mark 1
Rugged Australian designed and manufactured weapon
Calibre: 9mm
Length: 32 in ( 806 mm)
Weight (unloaded): 9 lb 5 oz(4.21kg)
Barrel: 9.75 in (247mm), 7 grooves, right-hand twist
Magazine: 33 round detachable box
Ammunition: 9mm Parabellum, bullet 115 gr, charge 6 gr
Rate of Fire: 700rpm
Muzzle Velocity: 1250 fps |
The Owen went into production about mid
1941, with about 50,000 produced by 1945. Although quite large and bulky,
the Owen was a first-class gun and very popular with those who used it,
for it stood up well to the hard conditions of jungle fighting and
stoppages were remarkably rare.
Its two outstanding features were the top mounted magazine -- a feature
rarely seen on submachine-guns since the Villar Perosa -- and the
provision of a separate bolt compartment inside the receiver so that the
bolt was isolated from its retracting handle by a small bulkhead, through
which passed the small diameter bolt. This ensured that dirt and mud did
not jam the bolt and it was highly successful, although expensive in terms
of space.
Two other unusual mechanical features: the ejector is built into the
magazine rather than into the gun body, and the barrel is rapidly
removable by pulling up on a spring-loaded plunger just ahead of the
magazine housing. The latter feature is necessary since, due to the method
of assembly and construction, the gun can only be dismantled by removing
the barrel and then taking out the bolt and return spring in a forward
direction.
The OMC stayed in service through Korea
where the extra distances worked against it and in the early days of
Vietnam. It was replaced by a newer less efficient model, the
F1, in the
1960's and that was quickly replaced by the American made Colt AR15 (M16)
Armalite. |

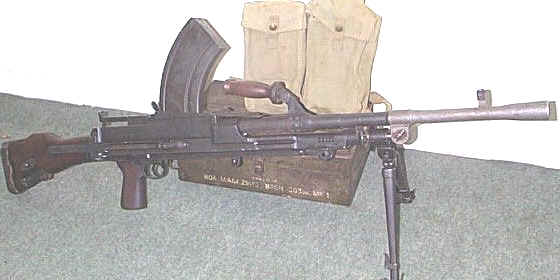

THE BREN LIGHT MACHINE GUN
|
The Bren Light Machine Gun
was introduced into the British Army in 1937. The Bren revolutionised the
British & Australian Army organisation and equipment from the
organisation that had been in place since the First World War to what we
know as the organisation of the Army in World War Two. Equipment was
designed so Bren Gun magazines could be carried. An Infantry section
always contained a Bren Group (1 gun) for local automatic support fire and
the introduction of the Bren meant that tactics could change. It was now
possible to have light, fast
moving automatic fire moving just as fast as the men themselves could.
With the Bren's predecessor, the LEWIS, this could not be done as the
weight and dimensions of the Lewis meant it was not possible to carry
forward an LMG in an attack at speed.
The Bren gun was used in many roles from light support in the Infantry
section to a Medium MG role when used with the sustained fire tripod that
was issued with every gun. It was also used largely in the Anti-Aircraft
role and special items of equipment were issued with it for this purpose
such as 100-round drum magazines and tripod extension legs.
THE BREN LMG |
Manufacturer: |
Royal Small Arms
Factory, Enfield Lock |
Calibre: |
.303 inch British |
Length Overall: |
1,150mm (42.5
inches) |
Weight empty: |
10.15kg (22.38lb) |
Barrel: |
635mm (25.0
inches), 6 groove Right Hand |
Feed system: |
30-round
detachable box |
Rate of fire: |
500 rounds per
minute |
Muzzle velocity: |
731 metres per
second (2,400 ft/sec) |
The Bren went into Front-line service as
soon as the numbers were available. It went to France in 1939 with the
British Expeditionary Force in the Mk. I version of the gun. It served in
North Africa and Italy. Australian troops used the Bren in all the theatres
of war in which they served. The Bren soldiered on post war as well
in Korea and Malaya. It was then converted to 7.62mm NATO with the
introduction of the L1A1 Self-Loading-Rifle (SLR) the Bren became the L4.
It has a service history of over 60 years! |
|
