Soluce-HB |
Max. Sizes (mm) |
Shading
Coefficient |
Transmission
(%) |
||
UV |
Visible |
Infra-red |
|||
HB70 |
2,400
x 4,000 |
0.61
~ 0.71 |
0 |
70
~ 75 |
18
~ 39 |
HB60 |
2,400
x 4,000 |
0.52
~ 0.62 |
0 |
60
~ 65 |
15
~ 25 |
HB50 |
2,400
x 4,000 |
0.43
~ 0.54 |
0 |
50
~ 55 |
12
~ 21 |
HB40 |
2,400
x 4,000 |
0.33
~ 0.45 |
0 |
40
~ 45 |
6
~ 9 |
HB30 |
2,400
x 4,000 |
0.26
~ 0.38 |
0 |
30
~ 35 |
3
~ 5 |
* Available in virtually any custom architectural make-up: insulated, tinted, and more.
 |
Transparent Heat Blocking Glass UV Transmission: 0% Visible Transmission: 72% IR Transmission: 18% Shading Coefficient 0.62 |
|---|---|
 |
Low-E glass (KCC product) UV Transmission: 44% Visible Transmission: 80% IR Transmission: 64% Shading Coefficient 0.86 |
Impact Resistant Glass
Soluce Corp provides a range of laminated glass products for burglary and hurricane resistance. Soluce-BR, Soluce-HR and Soluce-HR+ products are high performance glazing products that uses heat-strengthened glass (or tempered glass), special polymer panes, and special adhesives for prolonged physical impact resistance and hurricane resistance.
Burglar Resistant Glass Laminates
Soluce-BR |
Max. Sizes (mm) |
Thickness
(mm) |
Weight
(Kg/sq. ft) |
Visible
Transmission (%) |
Shading
Coefficient |
Level
1 |
1,200
x 2,400 |
13
~ 15 |
2.3
~ 3.0 |
80
~ 85 |
0.70
~ 0.79 |
Level
2 |
1,200
x 2,400 |
20
~ 22 |
3.7
~ 4.4 |
80
~ 85 |
0.60
~ 0.69 |
Level
3 |
1,200
x 2,400 |
25
~ 26 |
4.5
~ 5.2 |
75
~ 80 |
0.50
~ 0.59 |
Hurricane Resistant Glass Laminates
|
Soluce-HR |
Max. Sizes (mm) |
Thickness
(mm) |
Weight
(Kg/sq. ft) |
Protection Level |
|
Level 1 |
2,400
x 4,000 |
13.0
~ 13.5 |
2.7
~ 2.8 |
ANSI Z97.1-1984 National Safety Glazing Standard |
|
Level 2 |
2,400
x 4,000 |
14.0
~ 14.5 |
2.8
~ 2.9 |
ANSI Z97.1-1984 National Safety Glazing Standard |
|
Level 3 |
2,400
x 4,000 |
14.5
~ 15.0 |
2.9
~ 3.0 |
ANSI Z97.1-1984 National Safety Glazing Standard |
Hurricane Resistant Plus Heat Blocking Glass Laminates
Soluce-HR+ |
Max. Sizes (mm) |
Shading
Coefficient |
Transmission
(%) |
||
UV |
Visible |
Infra-red |
|||
HR+70 |
2,400
x 4,000 |
0.61
~ 0.71 |
0 |
70
~ 75 |
18
~ 39 |
HR+60 |
2,400
x 4,000 |
0.52
~ 0.62 |
0 |
60
~ 65 |
15
~ 25 |
HR+50 |
2,400
x 4,000 |
0.43
~ 0.54 |
0 |
50
~ 55 |
12
~ 21 |
HR+40 |
2,400
x 4,000 |
0.33
~ 0.45 |
0 |
40
~ 45 |
6
~ 9 |
HR+30 |
2,400
x 4,000 |
0.26
~ 0.38 |
0 |
30
~ 35 |
3
~ 5 |
Bullet Resistant Glass
Soluce Corp provides Soluce-BL, a bullet resistant product for protection against a wide range of ballistic threat levels. Glass-Clad Plastics products combine the durability and abrasion resistance of glass on the attack side and impact resistance of special polymer panes to the witness side
Glass-Clad Plastics Laminates
|
Soluce-BLGC |
Max. Sizes (mm) |
Thickness (mm) |
Weight
(Kg/sq. ft.) |
Protection
Level |
|
Level
1 |
2,400
x 4,000 |
19
~ 21 |
3.0
~ 4.5 |
9mm
Full Metal Copper Jacket with Lead Core |
|
Level
2 |
2,400
x 4,000 |
26
~ 28 |
4.0
~ 5.5 |
0.357
Magnum Jacketed Lead Soft Point |
|
Level
3 |
2,400
x 4,000 |
36
~ 38 |
6.0
~ 7.5 |
0.44
Magnum Lead Semi-Wadcutter Gas Checked |
|
Level
4 |
2,400
x 4,000 |
37
~ 39 |
6.0
~ 8.0 |
0.3
Caliber Rifle lead Core Soft Point |
|
Level
5 |
2,400
x 4,000 |
43
~ 45 |
7.0
~ 8.5 |
7.62
mm Rifle Lead Core Full Meal Copper Jacket, Military Ball
One(1) Shot |
|
Level
8 |
2,400
x 4,000 |
64
~ 66 |
11.0
~ 12.5 |
7.62
mm Rifle Lead Core Full Meal Copper Jacket, Military Ball
five(5) Shots |
Fire Resistant Glass
Soluce-FR is a fire resistive glass with radiant heat blocking performance. Soluce-FR products have been tested to the stringent wall standard and therefore are considered a transparent wall. All products provide additional features including UV blocking, noise reduction, and impact resistance while maintaining high transparency.
Proper installation methods and fire-rated frames are mandated by UL for all Soluce-FR products. For general glazing installation guidelines, refer to the Glass Association of North America (GANA) Glazing manual 2004 or latest edition.
Soluce-FR |
Max. Sizes(mm) |
Thickness
(mm) |
Weight
(Kg/sq. ft) |
Visible
Transmission (%) |
Remarks |
FR-45
min. |
2,000
x 3,000 |
18
~ 20 |
3.2
~ 3.7 |
85
~ 90 |
RHB |
FR-60
min. |
2,000
x 3,000 |
24
~ 28 |
4.2
~ 5.0 |
85
~ 90 |
RHB |
FR-90
min. |
2,000
x 3,000 |
30
~ 36 |
4.8
~ 6.2 |
85
~ 90 |
RHB |
FR-120
min. |
2,000
x 3,000 |
36
~ 42 |
5.5
~ 6.9 |
85
~ 90 |
RHB |
FRN-30
min. |
2,000
x 3,000 |
6
~ 10 |
1.5
~ 2.5 |
85
~ 90 |
NRHB |
FRN-60
min. |
2,000
x 3,000 |
15
~ 18 |
3.7
~ 4.5 |
85
~ 90 |
NRHB |
* RHB : radiant heat blocking,
* NRHB : non-radiant heat blocking
Heated Glass
Soluce-HG is a heated glass which radiates warmth with adjustable
temperature control. An architectural window unit with Soluce
heated glass will remain free of condensation even in 100% humidity.
Plus, it will contribute warmth and comfort to the room, rather
than steal them.
In order to manufacture heated glass, Soluce uses an ordinary
pane of float glass with an invisible fluoride doped tin oxide
coating during the fabrication process. Two buss bars are attached
to the coating on glass pane.
When the glass is turned on, an electrical current travels from one buss bar to the other across the fluoride doped tin oxide coating. Electrical resistance results in heat energy, which radiates from the glass. Since the electrical resistance is uniform across the entire glass surface, so is the glass temperature.
Soluce-HG |
Max. Sizes(mm) |
Thickness
(mm) |
Weight
(Kg/sq. ft) |
Visible
Transmission (%) |
Remarks |
HG1 |
2,000
x 3,000 |
3.2
~ 6.0 |
0.8
~ 1.5 |
70
~ 90 |
single
pane |
HG2 |
2,000
x 3,000 |
6.2
~ 36.0 |
1.5
~ 6.2 |
70
~ 90 |
laminated |
HG3 |
2,000
x 3,000 |
12.2
~ 42.0 |
1.6
~ 6.2 |
70
~ 90 |
Insulated |
Translucent Rear Projection Screen Glass
This translucent rear-projection screen glass is a high-contrast diffusing screen with a super wide viewing angle that is made of glass or special polymer panes optionally. Soluce-R differs from conventional rear-projection screens in that:
Soluce-R Screen Glass allows viewers to look at
a remarkably vivid and bright images from the rear side, even
in a brightly lit environment. Soluce-R screen glass products
consist of glass and are thus a lot more durable. The surface
can be written on - even permanent markers do not cause any lasting
damage.
Light diffusing layer laminated between glass panes transmits
and diffuses the incident light at a translucent state. It performs
high-contrast, super wide viewing angle, and sharp picture. Due
to the laminated glass, breakage do not produce any problems.
Features
ten times higher contrast
six times brighter image

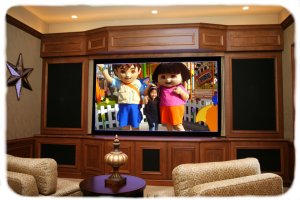

can be used in movie rooms, meeting rooms, retail stores, schools,
churches, trade shows, restaurant, banks and other high traffic
areas.
the perfect flat screen system
available in sizes up to 100” in wide format
Color of the screen: dark grey and translucent, or white and translucent optionally
Standard sizes are 50", 60", 75", 83" und 100" in 16:9 format
Soluce-R
(16:9) |
Glass Dimensions (mm) |
Weight
(Kg) |
50"
glass screen |
1,110
x 630 |
15
~ 19 |
60"
glass screen |
1,340
x 750 |
22
~ 27 |
75"
glass screen |
1,650
x 940 |
33
~ 41 |
83"
glass screen |
1,840
x 1,040 |
42
~ 50 |
100"
glass screen |
2,200
x 1,240 |
58
~ 72 |
Any size that does not exceed 2.4 x 4 m can be produced in float glass according to customer preference. Soluce-R screens up to a size of 1.24 m x 2.2 m will be available in special plastic optionally.
Examples of recommended projector power for Soluce-R
size |
ANSI lumen* |
50"
|
1,000
~ 1,500 |
75"
|
1,500
~ 2,800 |
100"
|
2,500
~ 4,000 |
[*] The indications can only be approximate values.
The brighter the ambient light is, the greater the illumination of the projector has to be.
For installation free-suspension (up to 60") or stainless steel frames (75”, 83" and 100") can be used.
Horizontal visibility angle: almost 180°
Peak gain: 1.3 ~ 3.6
Resolution: only depends on the projector
 |
Click and see movie showing Soluce-R Screen |
|---|
Transparent Holographic Projection Screen Glass
This holographic projection screen glass has advantages in that it has brilliant colors, super wide viewing angle and sharp picture on transparent material.
Features
four times brighter image
can be used for signages in retail stores, window displays, trade
shows, restaurants, airports, banks and other high traffic areas
the perfect flat screen system
available
in sizes up to 100” in wide format
Standard sizes are 50", 60", 75", 83" und 100" in 16:9 format
Soluce-H
(16:9) |
Glass Dimensions (mm) |
Weight
(Kg) |
50"
glass screen |
1,110
x 630 |
15
~ 19 |
60"
glass screen |
1,340
x 750 |
22
~ 27 |
75"
glass screen |
1,650
x 940 |
33
~ 41 |
83"
glass screen |
1,840
x 1,040 |
42
~ 50 |
100"
glass screen |
2,200
x 1,240 |
58
~ 72 |
Any size that does not exceed 2.4 x 4 m can be produced in float glass according to customer preference. Soluce-R screens up to a size of 1.24 m x 2.2 m will be available in special plastic optionally.
Color of the screen: white transparent, or dark grey transparent optionally
Examples of recommended projector power for Soluce-H
size |
ANSI lumen* |
50"
|
2,000
~ 2,500 |
75"
|
3,500
~ 4,000 |
100"
|
5,000
~ 10,000 |
[*] The indications can only be approximate values.
The brighter the ambient light is, the greater the illumination of the projector has to be.
For installation free-suspension (up to 60") or stainless steel frames (75”, 83" and 100") can be used.
Special projection geometries have to be considered
Horizontal visibliity angle: almost 180° and 360°
(two types)
Vertical visibliity angle: almost 180° and 360° (two
types)
Peak gain: 3.8
Resolution: only depends on projector
Available sizes: any size up to 100" in 4:3 format or
120" in 16:9 format
 |
Click and see movie showing Holographic TV system |
|---|
Switchable Glass
Soluce-3S glass can be used as both a window and a image screen. As a simple window, 3S glass allows users to control the light transmittance, thus helping create more comfortable and pleasant mood in a room. This electrically switchable smart glass enables viewers to enjoy the images from behind the glass.
Features
can be switched the transparency from translucent state to transparent
state
can be used in retail stores, window displays, trade shows,
restaurants, airports, banks and other high traffic areas
Soluce-3S
|
Max Glass Dimensions (mm) |
Weight(Kg/sq.
ft) |
Appearance |
3S |
2,500
x 980 |
1.5
~ 3.0 |
milky
white to transparent |
Switch OFF |
Switch ON |
|---|
