D16A6 Cam install |
|
|
|
Removing rocker arm assembly,cam,etc.. |
|
|
|
This part is easy. You see 16 bolts. Loosen them. Lift out complete assembly. Be careful: you probably have noticed some springs on the assembly, keep some pressure on both ends of the assembly while you take it out. It should be allrite once you lay it down but it would suck to have it go all over the floor, so while transporting, keep some pressure on it! |
|
|
|
 |
|
|
|

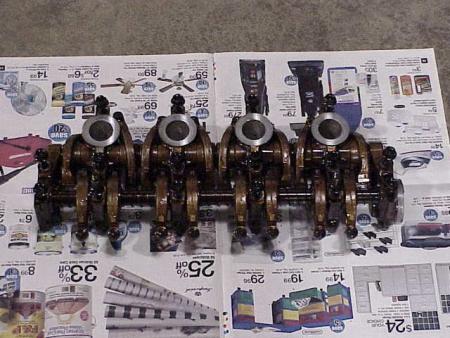

The rocker arm assembly |
|
|
|
 |
|
|
|

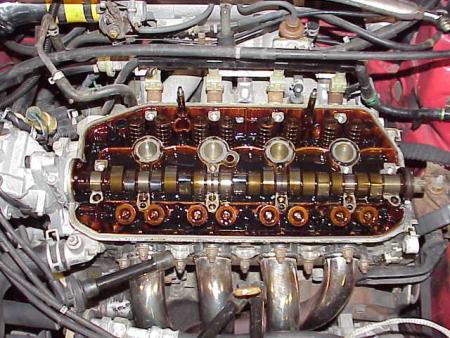

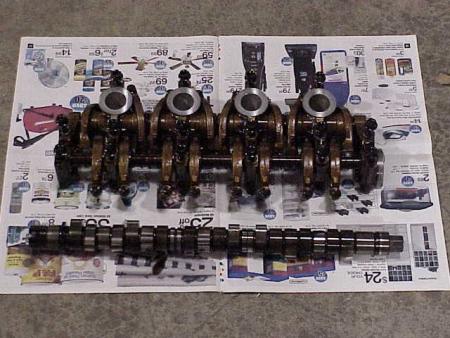

Now, this is what you should see. The cam is exposed. It just lifts up out of there. |
|
|
|
 |
|
|
|
 |
|
|
|
|
BACK |
|
NEXT |
|
|
|
|
|

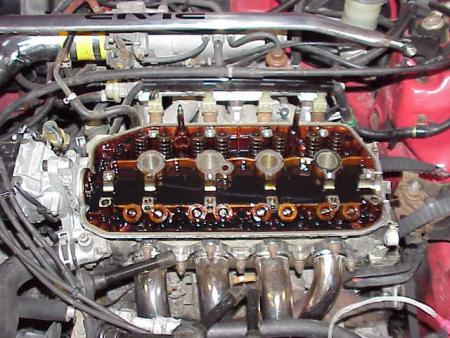

Allright! Ready for the new cam to be installed! |
|
|
|
|
