HP 620LX Detail Photos
Here are some detail photos of my 620LX. Some of the edges appear more
curved than they should be. This was caused by the type of lens used.
Also, check out the scale photo of the keyboard (to print
out and see if your fingers fit, etc.).

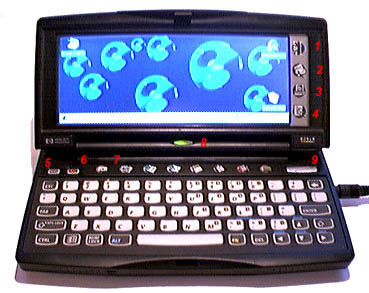

620LX open
1. Utilities button (pops up a control panel for battery, sound, brightness
and contrast).
2. In-Box button
3. bFax
4. bFind
5. Power (On/Off button)
6. Record button
7. One-touch application buttons (in order from left to right: Audio
utility, PowerPoint, Word, Excel, Calendar, Tasks, Contacts, and Calculator).
8. Multi-function button (record when unit is closed, red.green LED indicated
battery charge status).
9. Stylus eject button
620LX front edge
1. Microphone
2. HP 620LX nameplate / latch release. (see tip)
620LX rear
1. IrDA interface
2. Multi-function button/LED
620LX left edge
1. CompactFLASH interface/tray
2. AC input port
3. Stylus compartment
4. Serial interface
620LX right edge
1. Type II PCMCIA bay
2. PCMICA card eject

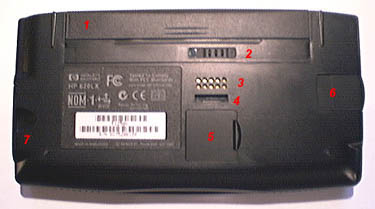

620LX Bottom
1. Main battery
2. Battery release
3. AC/Serial contacts for dock
4. Dock latch hole
5. Backup battery door
6. PCMCIA eject
7. CompactFLASH tray
620LX battery compartment
1. Battery contacts
2. Pull tab for RAM/ROM board (?)

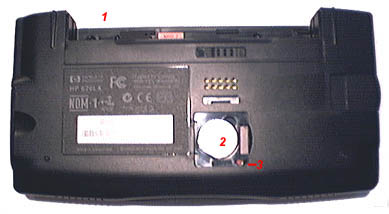

620LX bottom (covers removed)
1. Empty battery compartment
2. Lithium coin backup battery
3. Reset button (see tip)

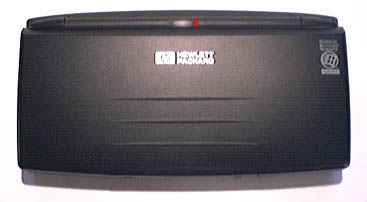

620LX top closed
1. Multi-function button/LED
updated 1.5.98
email: [email protected]
