 21)

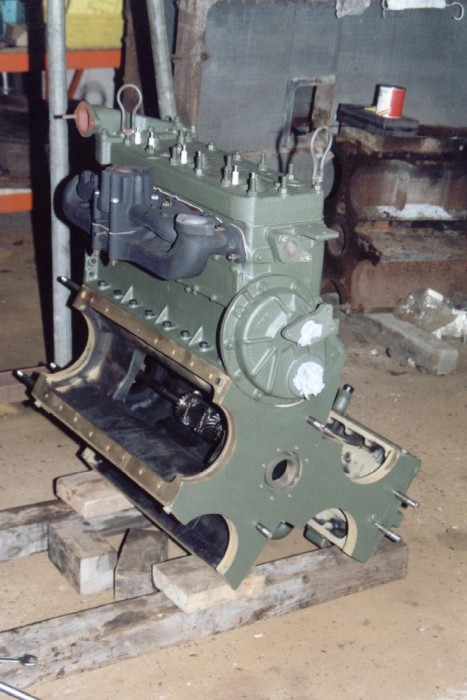

1st block fitted. This is actually no 5. |
 22)

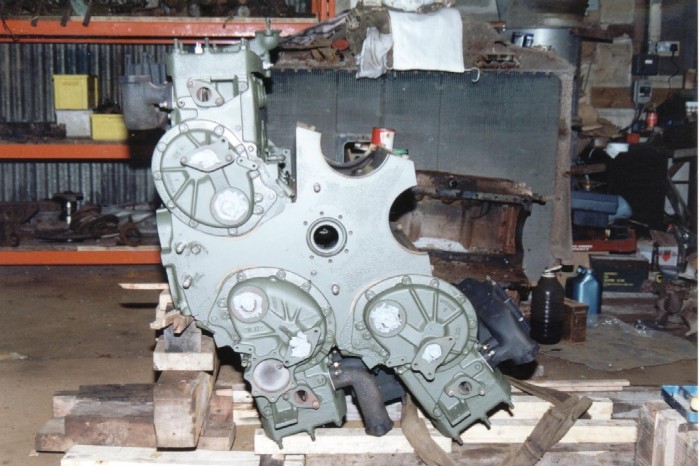

Three blocks on.
This is 3, 4 and 5 with 3 uppermost. |
 23)

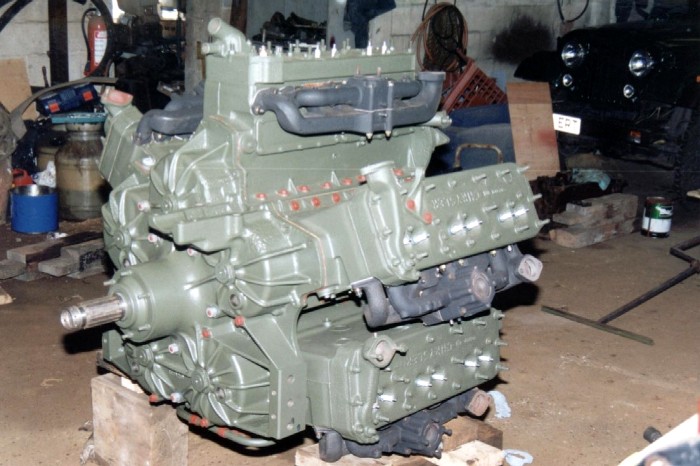

Main unit assembled. |
 24)

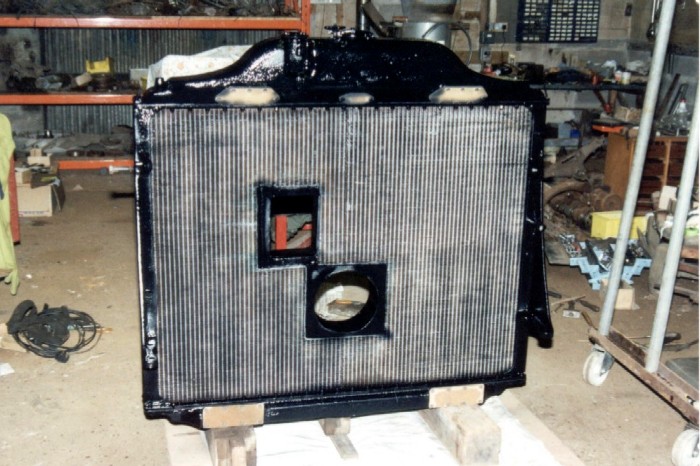

I had a new radiator core made. This was very expensive but was the only
option in the end.
The tanks and side frames are cast iron and were all repairable. |
 25)

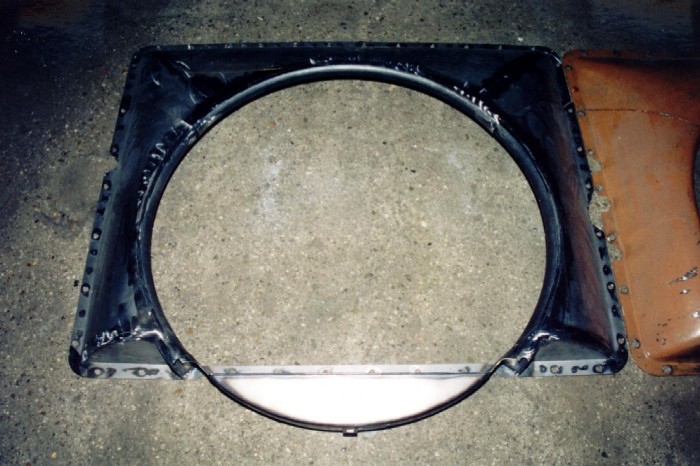

I made a new fan cowl from a borrowed pattern.
This took about four days work but was well worth it. |
 26)

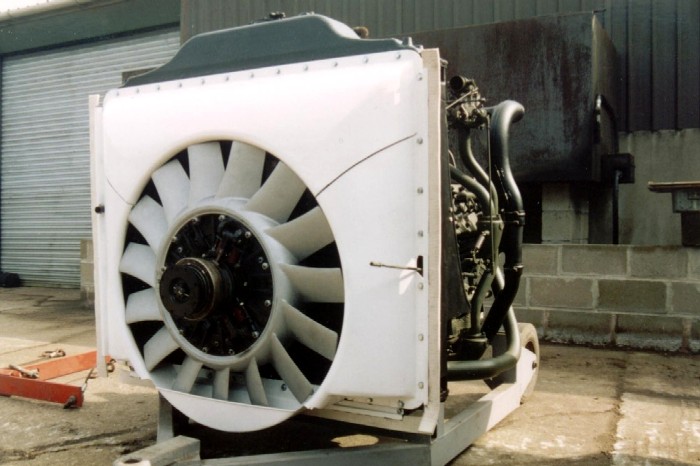

Cowl fitted. |
 27)

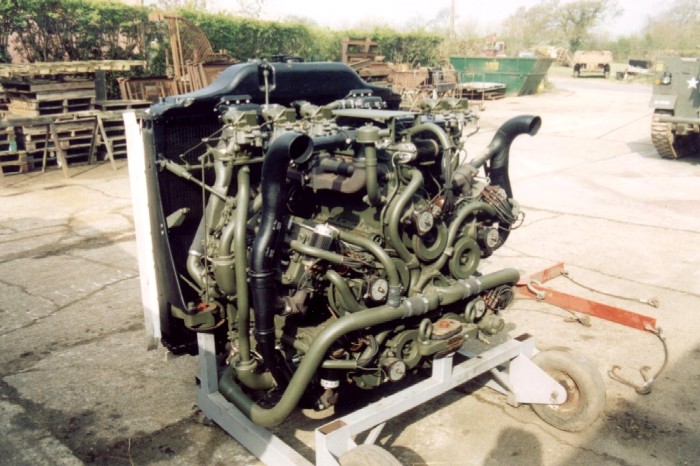

Engine ready to fit.
I made the stand to enable me to run the engine outside of the tank and also to be able to move it easily. It weighs 2.5 tonnes so is quite a handfull! |
|
