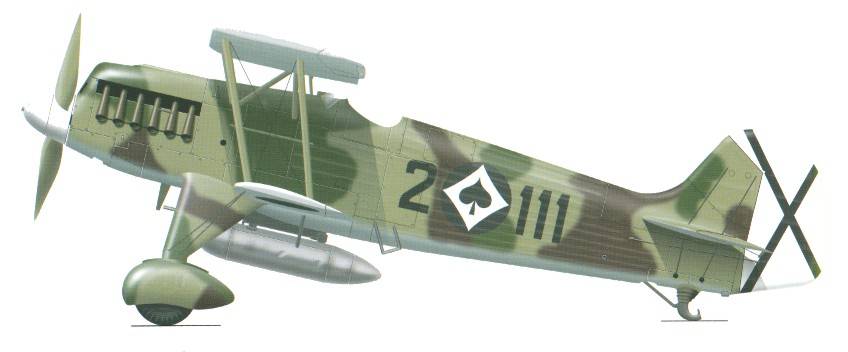

| Heinkel HE-51 |
 |
|
| Type: A-1 Single Seat Fighter, B-2 Reconnaissance seaplane, C-1 Land ground attack Origin: Ernest Heinkel AG Models: A-1, B-2, and C-1 First Flight: May 1933 Service Delivery: July 1934 Final Delivery: N/A Production: A-1: 75, B-2: 80, C-1: 79 Engine: Model: BMW VI 7.3Z Type: V12 water-cooled Number: One Horsepower: 750hp Dimensions: Wing span: 11m (36 ft. 1 in.) Length: 8.4m (27 ft. 6� in.) Height: Typical: 3.2m (10 ft. 6 in.) He 46B-2: 3.35m (11 ft.) Wing Surface Area: N/A Weights: Empty: 10,734 lb. (4870 kg) Maximum: 13,262 lb. (6016 kg) Performance: Maximum Speed (A-1): 205 mph (330km/h) Initial climb: 1,969ft/min (600m/min) Range: 242 miles (390km) Service Ceiling: 24,610 ft. (7500m) Armament: Typical: Two 7.92mm Rheinmetall MG 17 synchronized above fuselage B-2: Same plus underwing racks for up to six 22 lb. (10kg) bombs C-1: Same plus underwing racks for up to four 110 lb. (50kg) bombs |
|
|
 |
