Available with or without RF Module 72 mHz only, Channel 15-60.

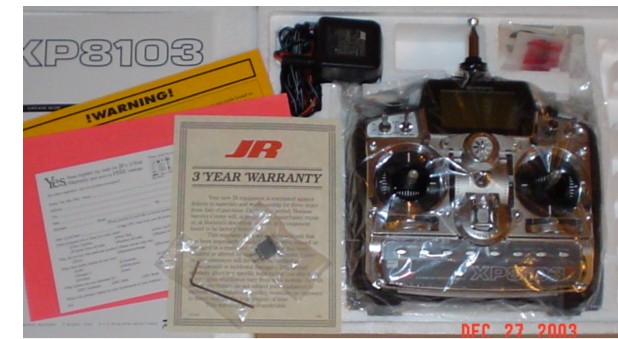

JRP001 XP8103A DT TX w/ TX battery. US$229.95
JRP002 XP8103A DT TX w/ TX battery, RF Module w/ TX crystal, Frequency Flag and Numbers. US$275.95
JRP003 XP8103A DT TX w/ TX battery, RF Module w/ TX crystal, TX/RX Battery Charger. US$289.95
Matching RX crystal is also availble for $10 additional.
Features :
* JR's 3+1 Digital Trims: JR's 3+1 Digital Trim arrangement utilizes Advanced Digital Trims on the roll, pitch, and yaw channels and a mechanical trim lever on the throttle channel - the setup most preferred by modelers we spoke to.
* Auto Trim Memory: Moving the digital trim switches automatically stores the new trim position in memory for that model. This allows switching between model set ups without having to reset trim position each time and prevents accidental displacement of trim position when the radio is off.
* Adjustable Trim Steps: This allows servo adjustment of 1 to 10 steps per "click" of the digital trim switches for fine or coarse adjustments of the trim position.
* Audible Trim Position Tones: Trim position and direction of movement is audibly indicated with "beeps" of varying frequency and tone whenever a digital trim switch is moved. This allows modelers to make in-flight trim adjustments without taking their eyes off the model.
* Easy-to-Read LCD Screen: Multi-point programmable curves, dual rates, and exponential settings are all graphically displayed to help take the guess-work out of getting the perfect mix.
Common Programming features:
- 10-model memory
Model reset
- Dual Pulse Code Modulation (S-PCM, Z-PCM, FM)
- Data transfer capabilities
Compatible with JR's DataSafe PC Interface
- Dual rate on aileron, elevator and rudder w/graphic display
- Exponential on aileron, elevator and rudder w/graphic display
- Reversing on all 8 channels
Travel adjust on all 8 channels
- Fail-safe, PCM modes only
- Trainer function with assignable channels to be transferred to the trainee
- Servo positions graphically depicted on LCD Screen
Airplane Specific Programming:
- Wing Type - Normal, Flaperon, Delta
- Elevator to flap mixing
- Aileron to rudder mixing
- Landing mode with preset elevator compensation and flap position that can be set to automatically actuate at a given throttle position
- Snap roll in four directions - right up, left up, right down, left down
- Flap pot authority adjustment
- Spoiler channel switch/pot selection
- 6 free programmable mixes
- Aileron differential
Helicopter Specific Programming:
- In-flight trim adjustment for each flight mode
- Four pre-programmed CCPM mixes
- Invert and pitch curve offset
- Acceleration mix tail rotor compensation
- Rudder offset position in hold
- Remote gyro gain adjustment capability
- Gyro rates can be altered for each flight mode (Normal, Stunt, Hold)
- Three free programmable mixes
- External pitch and hovering trim knobs
- Selectable gyro gain switch positions
