| A901 Spec:- |
Processor |
- Intel ® Celeron ™
- PGA370 Socket
- 0.13u CPU (FC-PGA2) with IHS (Integrated Heat Spreader) technology/0.18u CPU (FC-PGA)
- Speeds at 1.2~1.5GHz (FC-PGA2)/1.0~1.1GHz (FC-PGA)
- On-die full speed 256KB(FC-PGA2)/128KB (FC-PGA) L2 cache
|
System Compliance |
- Microsoft ® Windows ® XP Professional Edition/ Microsoft ® Windows ® XP Home Edition / Microsoft ® Windows ® 2000 Professional / Microsoft ® Windows ® ME/ Microsoft ® Windows ® 98SE Simplified Chinese Edition
- PC2001, ACPI compliant
- UL, TUV, CB-Report
|
Core Logic |
- SiS ® 630ST
- 128 bits 3D Graphic Engine built-in; directly supporting 3D stereo glasses
- SMA sharing memory up to 64MB
- Integrated AC'97 Audio Codec
|
System Memory |
Standard 128MB SDRAM, upgradeable to 512MB |
Display/Graphics/Video |
- 14.1" XGA TFT-LCD with 1024x768 resolutions; 16.7M colors
- Integrated 2D/3D graphics engine and 4X AGP support
|
BIOS |
AMI Mobile PC Bios; PnP, ACPI, DMI |
Storage Drive |
- 20GB, 2.5", 9.5mm Enhance ATA100 IDE HDD
- 5.25" 12.7mm high slim type 24XCD-ROM / 8X DVD-ROM
|
Communication Interface |
- Built-in ReaTek 8100 LAN 10/100Mbps controller
- PCTel Mini PCI Modem Built-In; K56 V.90
|
Audio |
Software Audio with AC '97 CODEC, support S/PDIF |
AC Adapter |
- Input: 100~240V, AC Universal
- Output: 12V, 5A, 60W
|
Keyboard |
- 12 Window Function Keys /19mm key pitch
- Hot keys for Internet and Email access
|

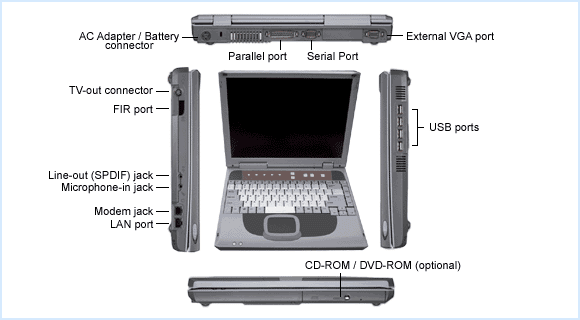

I/O Interface |
- 1 Parallel Port
- 1 Serial Port
- 1VGA,4 USB Ports
- 1 IrDA
- 1 Mic
- 1 Line-Out(SPDIF)
- 1 RJ11(for Modem)
- 1RJ45(for LAN)
- 1 S-Video TV-out
|
Heat Dissipation |
- 35W thermal capacity
- Large-size Aluminum and Copper alloy heatsink
- Cooling fan
|
Pointing Device |
Built-in Synaptics Touchpad with 2 click buttons |
Dimension and Weight |
320 * 265 * 39 mm, less than 5.1b |
Accessories |
S-Video Cable, Phone Cord, AC Adapter, Power Cord. |
