Automatic Transmission Overhaul |
|
|
|
This are pictures of our 300SDL's A/T being overhauled at home by myself. Thanks. |
|
|
|
 |
|
 |
|
|
|

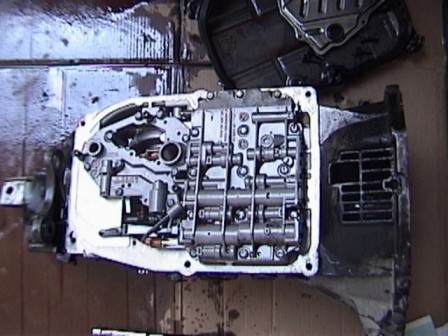

Lower pan removed and lower part of the lower valve body can be seen and also the manual valve body. |
|

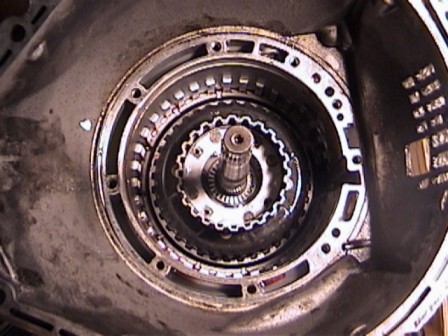

Shown here is the input shaft after the oil pump, direct clutch, 1st brake band and housing lining were removed. |
|
|
|
 |
|
|
|
 |
|
|
|

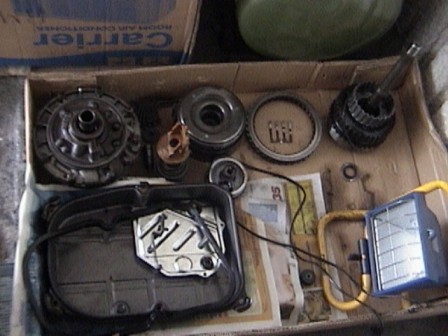

Shown are all the parts mentioned in the previous picture plus the input shaft. |
|

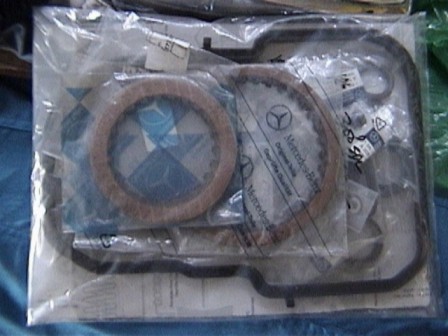

Overhaul gaskets and the 12 piece lining and all are original. |
|
|
|
|
|
 |
|
|
 |
|
|
|
|
|

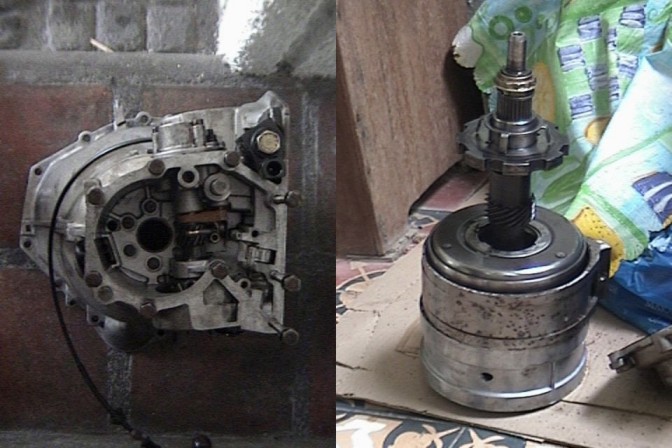

Rear part of the housing on the left and the governor is still inside. On the right is the output shaft and its clutch pack wherein the one-way clutch is in also the 2nd brake band wrapped around it. The park gear is the one on top of the shaft. |
|
|
|
|
|
|

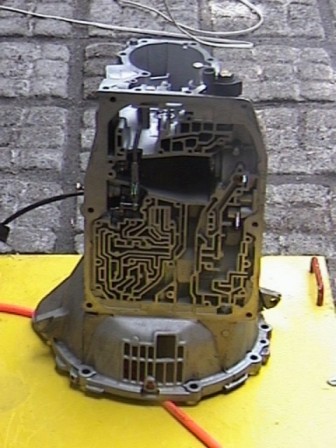

Transmission housing after cleaning. |
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|

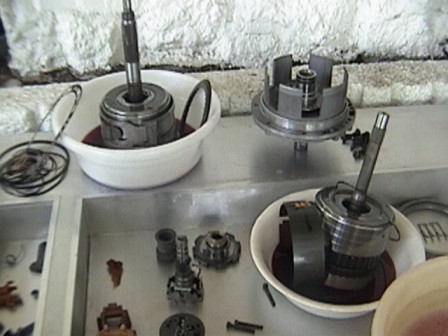

Upper left is the output shaft w/ 2nd brake band and clutch pack. Upper right is the oil pump. Lower right is the input shaft w/ 1st brake and its clutch pack. |
|
|
|
|

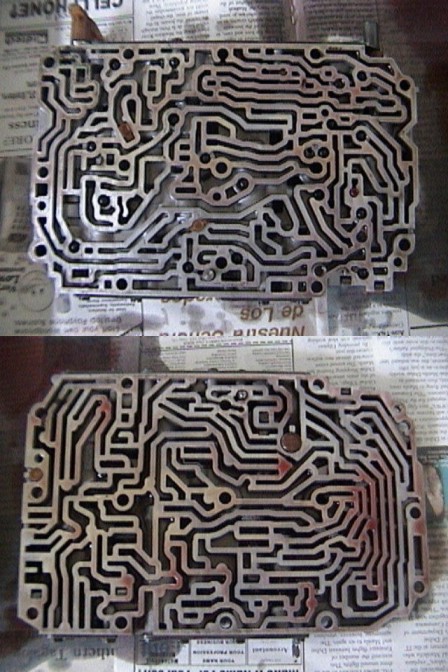

The one on top is the upper valve body and below it is the lower valve body. |
|
|
|
|
|
|
