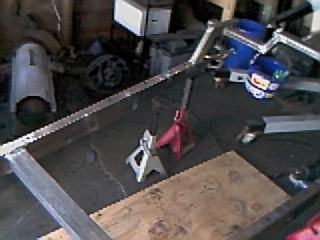

| Here the boxing plate has been cut and tacked into place. |
 |
 |

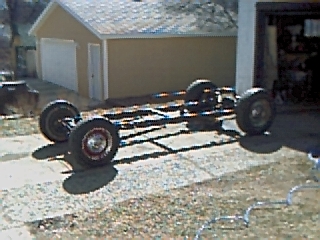

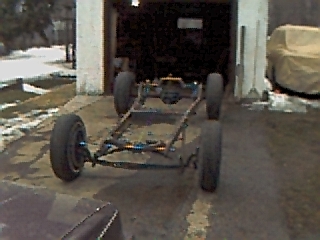

| Ok here is the frame in rolling mode. I still need to make more brackets and box the front half of the frame. BUT IT ROLLS |
 |
 |

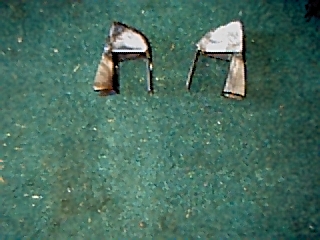

| This is a pic of the brackets I made to mount the Triangulated links to the side of the frame. |
 |

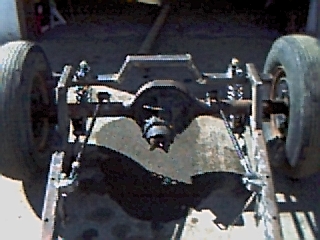

| Here is a pic of the 4 link set up in. |
| The back is all tacked in place and now time to box the front and get ready to put the motor in. |
 |

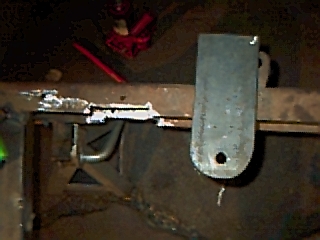

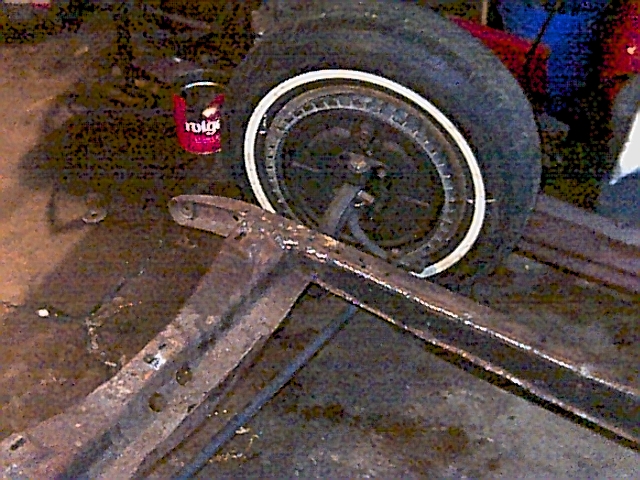

| Ok here you can see that I cut a notch in the frame to mount the bracket for the split wishbone. Also there is a tapered hole drilled in the bracket to accomodate the tie rod end. |
 |

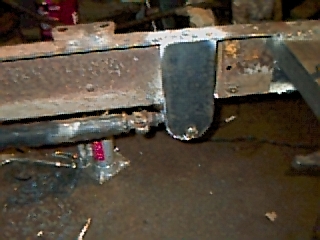

| Here the bracket is tacked in place and the split wishbone is attached. I used 1/2 inch thick metal for the bracket. |
 |
| Here is a pic of the front after it has been boxed. Next step is to get the motor & the steering box in. |
