Welcome to the Unofficial Web Site of the
Royal New Zealand Navy
Part 5: The Recent Past - 1960 to 1979
|
This list displays those ships commissioned into the
Royal New Zealand Navy from 1960 until 1979.
Notes:
(i) Dates shown follow the English precedent, ie. Day/Month/Year.
Frigates
Rothsay Class Type 12 (Anti-Submarine) Frigates
Displacement (tons): 2,144 Standard, 2,557 Full Load
Dimensions (feet): 370 x 41 x 17.4
Propulsion: 2 x Double reduction geared turbines,
30,000 hp, 2 shafts
Max. Speed (knots): 30
Armament: 2 x 4.5-inch, 1 x 40mm Bofors,
2 x Limbo anti-submarine mortars,
12 x 21-inch torpedo tubes
Complement: 240
No. Name Commissioned Notes/Fate

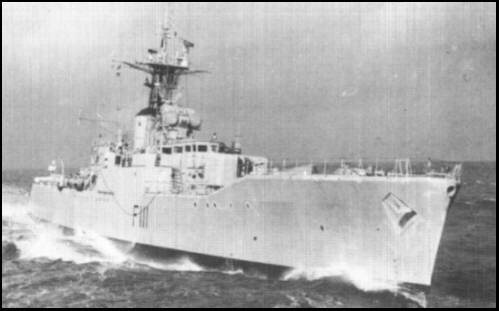

F111 Otago (I) 22/6/60 Originally ordered as HMS Hastings.
Fleet Training ship 1981.
Paid off to reserve 7/11/83.
Replaced by Southland.
F148 Taranaki 28/3/61 Reserve 1977. Recomm'd as Training
frigate in 1979. Decomm'd 18/6/82.
Sold in 1983 and broken up in
Auckland. Replaced by Wellington.
Note: Otago built by Thornycroft, UK and Taranaki built by White, UK.
Whitby Class Type 12 (FF) Frigate
Displacement (tons): 2,150 Standard, 2,560 Full Load
Dimensions (feet): 369.9 x 41 x 17.6
Propulsion: 2 x Double reduction geared turbines,
30,430 hp, 2 shafts
Max. Speed (knots): 31
Armament: 2 x 4.5-inch, 1 x 40mm Bofors,
2 x Limbo anti-submarine mortars
Complement: 250
No. Name Commissioned Notes/Fate

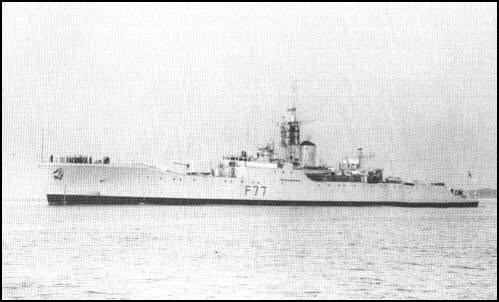

F77 Blackpool 6/66 On loan from RN pending the arrival
of Canterbury. Returned to RN 6/71
and later scrapped.
Note: Built by Harland & Wolff, Belfast, Nthn Ireland.
Leander Class Type 15 (FFH) Frigates
Displacement (tons): 2,450 Standard, 2,860 Full Load (Waikato)
2,470 Standard, 2,990 Full Load (Canterbury)
Dimensions (feet): 373 x 41 x 18 (Waikato)
373 x 43 x 18 (Canterbury)
Propulsion: 2 x Double reduction geared turbines,
30,000 hp, 2 shafts
Max. Speed (knots): 30 (Waikato)
28 (Canterbury)
Aircraft: Aft Helicopter deck and hangar for Westland Wasp.
Armament: 2 x 4.5-inch, 2 x 20mm,
2 x Seacat Missile launcher,
6 x 21-inch torpedo tubes
Complement: 248 (Waikato), 243 (Canterbury)
No. Name Commissioned Notes/Fate
F55 Waikato (II) 16/9/66 Decomm'd 3/7/98. Not replaced!
Sunk off Takakuka, Northland, on
2/12/00, for use as a dive wreck.

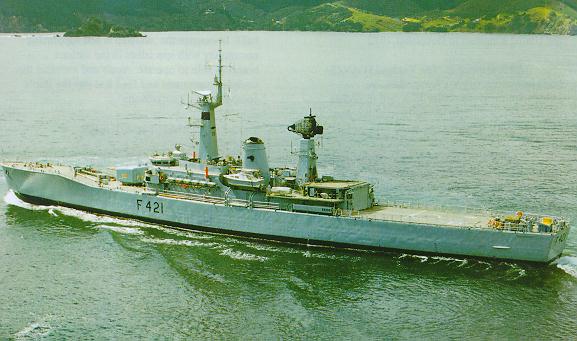

F421 Canterbury (I) 22/10/71 Broad-beamed version of this class.
Recently refitted for Seasprite
operations. Active.
(Note: See also Part 6)
Note: Waikato built by Harland & Wolff, Belfast, Nthn Ireland and
Canterbury built by Yarrow, UK.
(Back To Top)
Mine Warfare Vessels
Ton Class Minesweepers
Displacement (tons): 360 Standard, 425 Full Load
Dimensions (feet): 153 x 28.9 x 8.3
Propulsion: 2 x Napier Deltic, 3,000 hp, 2 shafts
Max. Speed (knots): 15
Armament: 1 x 40mm, 2 x 20mm, MGs
Complement: 32
No. Name Commissioned Notes/Fate
M1131 Hickleton 1965 Used at Singapore as a patrol boat.
Reverted to RN 9/66. Laid up in
1967 and later sold to Argentina
as Neuquen.
M1178 Santon 1965 Used at Singapore as a patrol boat.
Reverted to RN 9/66. Laid up in
1967 and sold to Argentina
as Chubet.
Note: Hickleton built by Thornycroft, UK. and Santon built by
Fleetlands, UK.
(Back To Top)
Patrol Craft
Lake Class (PC) Patrol Boats
Displacement (tons): 105 Standard, 135 Full Load
Dimensions (feet): 107.8 x 20 x 11.10
Propulsion: 2 x Paxman 12Y JCM diesels, 3,000 hp, 2 shafts
Max. Speed (knots): 25
Armament: 2 x 12.7mm MGs,
1 x 81mm mortar
Complement: 21
No. Name Commissioned Notes/Fate
P3568 Pukaki (II) 24/2/75 Deleted 1991.

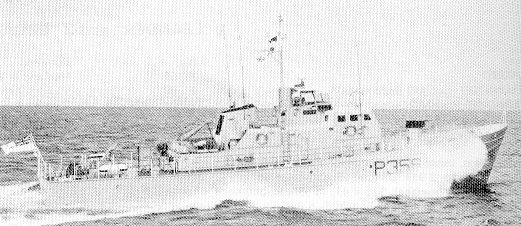

P3569 Rotoiti (II) 24/2/75 Deleted 1991.
P3570 Taupo (II) 29/7/75 Deleted 1991.
P3571 Hawea (II) 29/7/75 Deleted 1991.
Notes: All built by Brooke Marine, UK.
Pukaki and Rotoiti were transported to New Zealand in November 1974
onboard MV Starman. View several loading photo's here, at the Blue Star Line!
(Back To Top)
Other Vessels
Patapsco Class Antarctic Supply Vessel
Displacement (tons): 1,850 Standard, 4,335 Full Load
Dimensions (feet): 310.10 x 48.8 x 15.8
Propulsion: 2 x GM 16-278A diesels, 3,300 hp, 2 shafts
Max. Speed (knots): 14
Armament: Small arms
Complement: 72
No. Name Commissioned Notes/Fate
A184 Endeavour (II) 6/62 Ex-USS Namakagon (tanker). Used
for Antarctic support and ocean
research. Returned to USN 6/71.
Trans'd to Taiwan as
Lung Chuan 7/71.
Note: Built by Cargill Inc. for the USN between 1942 and 1945.
Robert D. Conrad Class (AGOR) Research Ship
Displacement (tons): 1,200 Standard, 1,380 Full Load
Dimensions (feet): 208.10 x 37.10 x 15.4
Propulsion: 2 x Caterpillar D378 diesels, 10,000 hp, 1 shaft
Max. Speed (knots): 13.5
Armament: None
Complement: 45 (inc. 15 scientists)
No. Name Commissioned Notes/Fate
A05 Tui (II) 11/9/70 Ex-USS Charles H. Davis (T-AGOR 5).
Built 1962. Deleted 2/98. Scuttled
and sunk as a diving attraction in
Tutukaka Harbour, Bay of Islands.
Note: Built by Christy Corp., USA.
Monowai Class (AGS) Survey Ship
Displacement (tons): 3,800 Standard, 4,027 Full Load
Dimensions (feet): 296.6 x 46.3 x 17
Propulsion: 2 x 7 cyl. Clark-Sulzer diesels, 3,080 hp, 2 shafts
Max. Speed (knots): 13.5
Armament: 2 x 20mm Oerlikons,
Complement: 126
No. Name Commissioned Notes/Fate
A06 Monowai (II) 4/10/77 Ex-Moana Roa. Built 1960.
Light Helicopter capable.
Deleted 8/98. Sold to UK interests.
Note: Built by Greymouth Dockyard, UK.
Diving Tender
Displacement (tons): 90 Standard, 107 Full Load
Dimensions (feet): (26.82 x 6.10 x 2.34m)
Propulsion: 2 x Cummins KT1150M diesels, 710 hp, 2 shafts
Max. Speed (knots): 12
Armament: none
Complement: 14
No. Name Commissioned Notes/Fate
A09 Manawanui (II) 28/5/79 Renamed HMNZS Kahu in 1988
(Note: See also Part 6)
Note: Built by Whangarei Engineering.
(Back To Top)
