| New Ball Joints |
 |
 |
 |
 |
 |
 |
 |

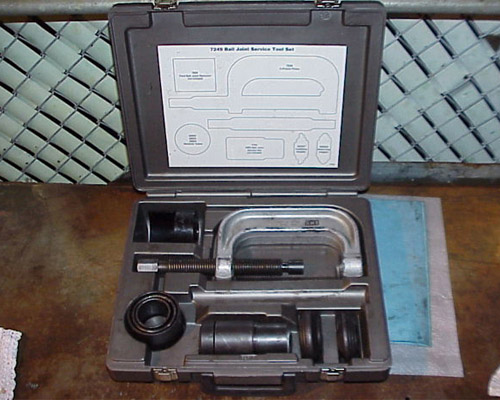

The ball-joint removal-installation tool you can use... |
 |

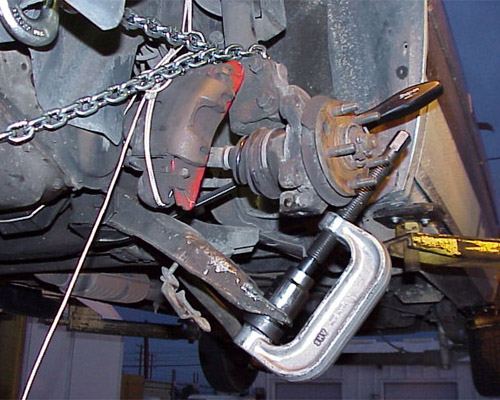

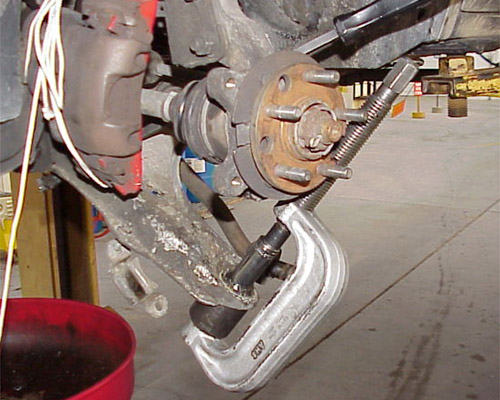

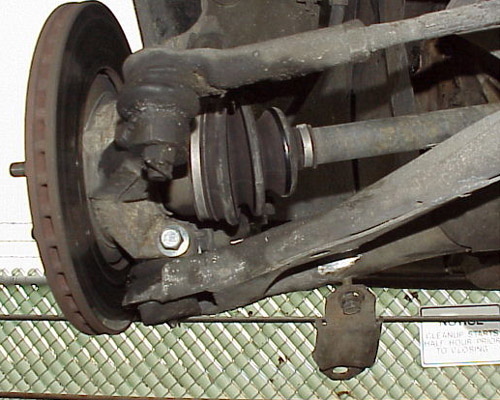

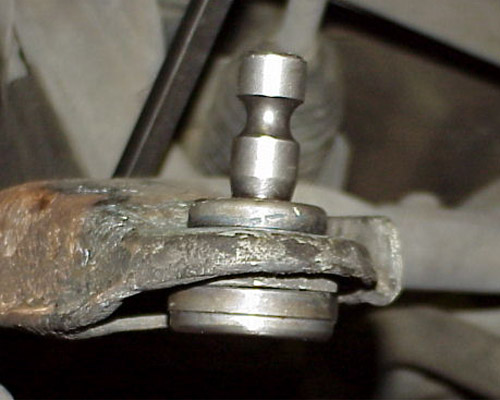

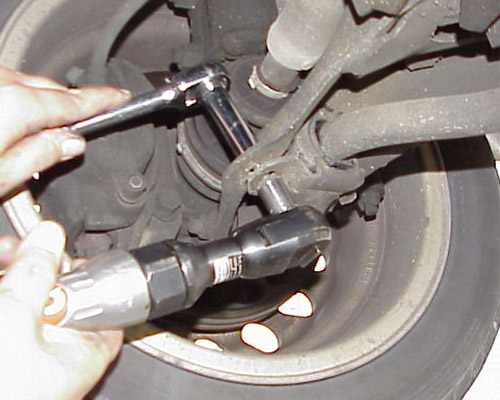

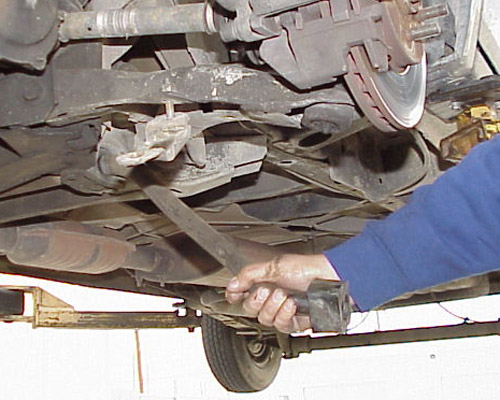

| PROCEDURE Remove the wheel... Drop down the sway bar... (shown w/ wheel on for reference only) Remove the bolt and nut to drop the control arm... Secure all hanging objects (ie brake rotor, control arm) to prevent damage... Using the C-Clamp and special tool, press out the old ball-joint... Press-Install the new Ball-joint into place... BE SURE TO USE THE CORRECT TORQUE SPECS WHEN REINSTALLING ANY NUT OR BOLT! |
