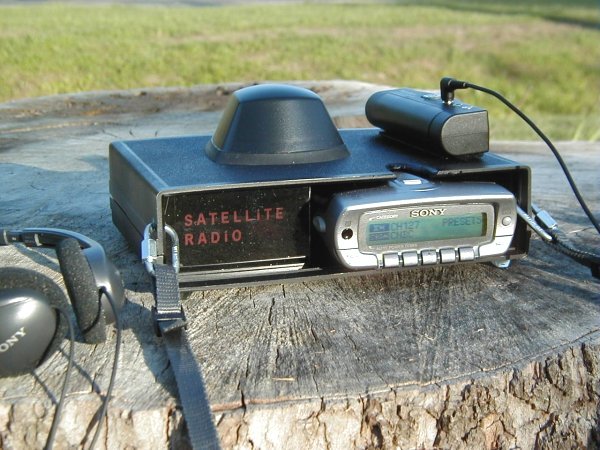

| This is a low profile, homemade portable unit that I made to use with my Sony XM tuner. I used the parts from the my other portable for making this unit. I used a 6V battery for a Play & Ride, kids riding vehicle. This battery will last over 6 hours on a charge, if the display back-light is turned off. | ||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||

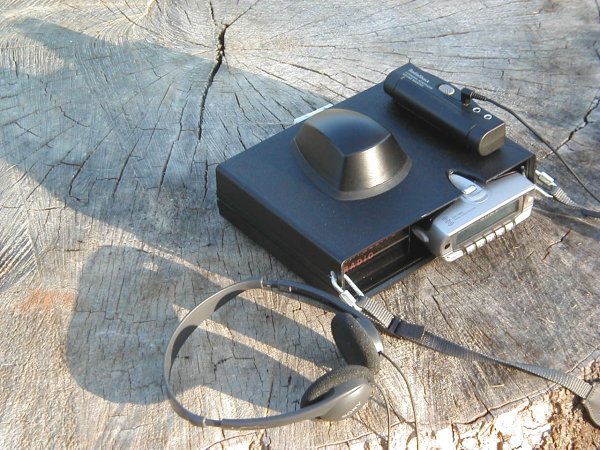

| I used a Terk antenna. I also used a headphone amplifier and attached it with Velcro tape. | ||||||||||||||||||||||||||
| Click on the picture to enlarge it. | ||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||
| I used an inline volume control, attached to the headphone amplifier, for the headphones. | ||||||||||||||||||||||||||

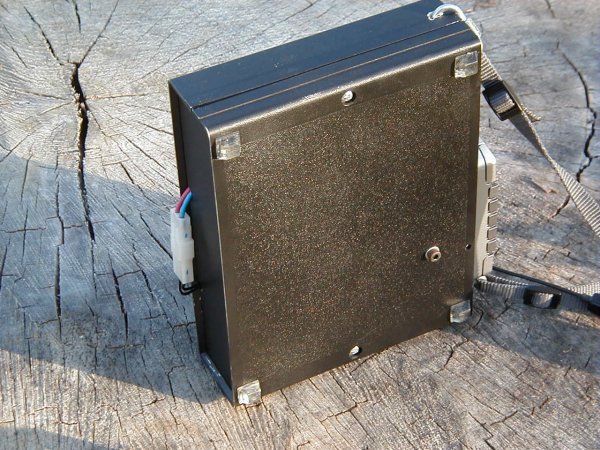

| I left the battery connection outside the box for easy hook-up to the battery charger. | ||||||||||||||||||||||||||
| The enclosure was white, I painted it black. Radio Shack sells this enclosure, but by mail order only (now back in stock). Click this line for the Radio Shack link for the enclosure. It is a PAC TEC Enclosure Model CM86-175, size 8.1 x 6.2 x 2.1 Click here for link to PAC TEC Most of the other parts, that I used, are listed at my first portable, at the link below. |
||||||||||||||||||||||||||
| Click here to Go to my first portable with parts list (also used for this one) | ||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||
