KraftWerk: page 2 |
|
|
|
 |
|
|
|

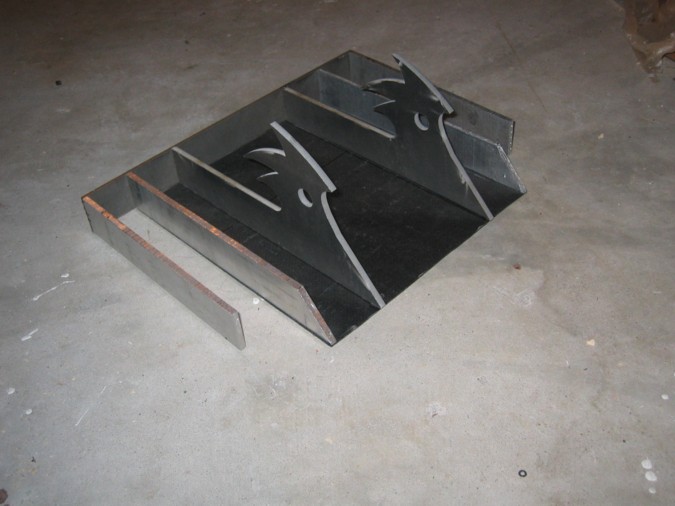

Building onward! I cut the angle in two outer rails, now all I need to do is bolt on the wedge.
|
|
|
|
|
|
 |
|
|

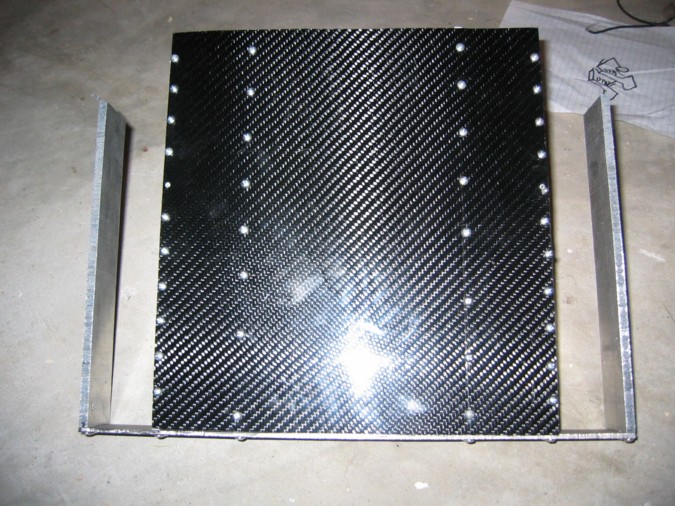

Here is the bottom with everything attached, with the exception of the front of the wheel guard to the side of outer rail. |
|
|
|
|
|
|
 |
|
|
|

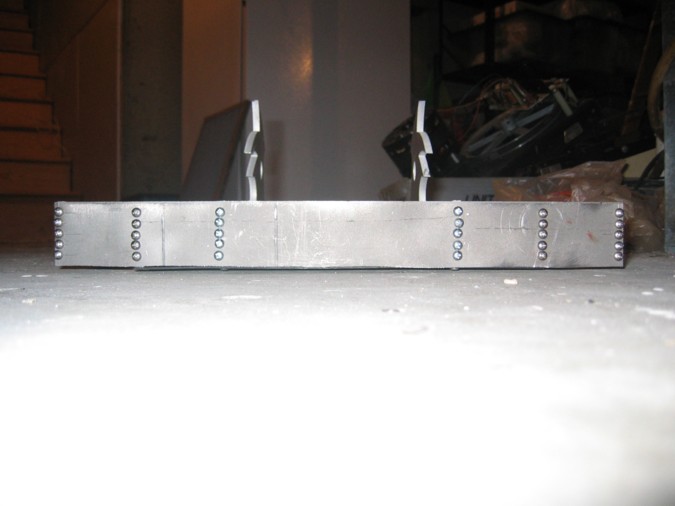

Here is the back of Kraftwerk, as you can see, there is 30 bolts holding on the frame rails, that along with the 36 that are attached to the base plate, that is alot of drilling and tapping. Which isnt exactly fun when it comes to doing it in metal... |
|
 |
|
|
|
|
|
|
|
|
 |
|
|

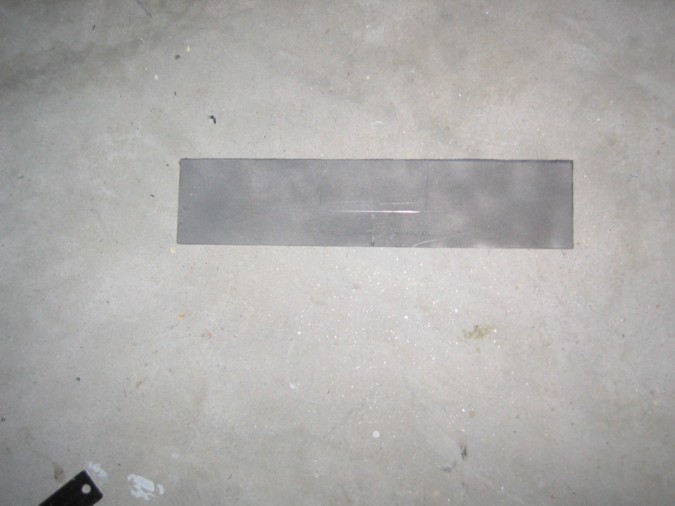

This is the wedge before i cut a slot in it |
|
|
|
 |
|
|
|
|

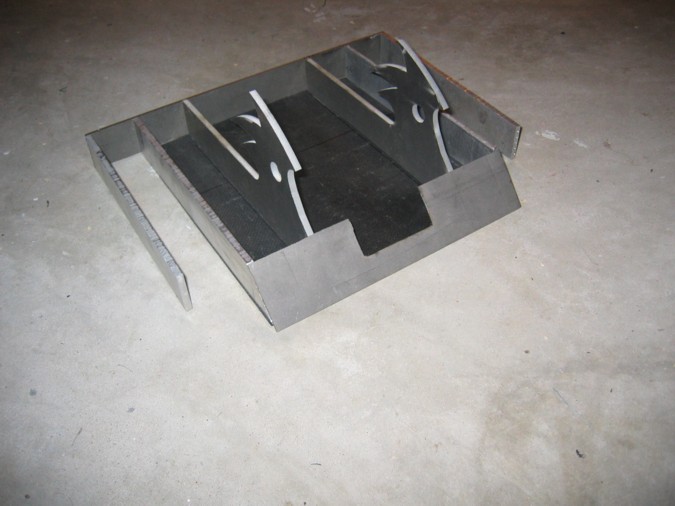

This is the wedge after i cut the slot out of it, its also where it will be on the robot. |
|
|
|
|
|
|
|
|
|
 |
|
|

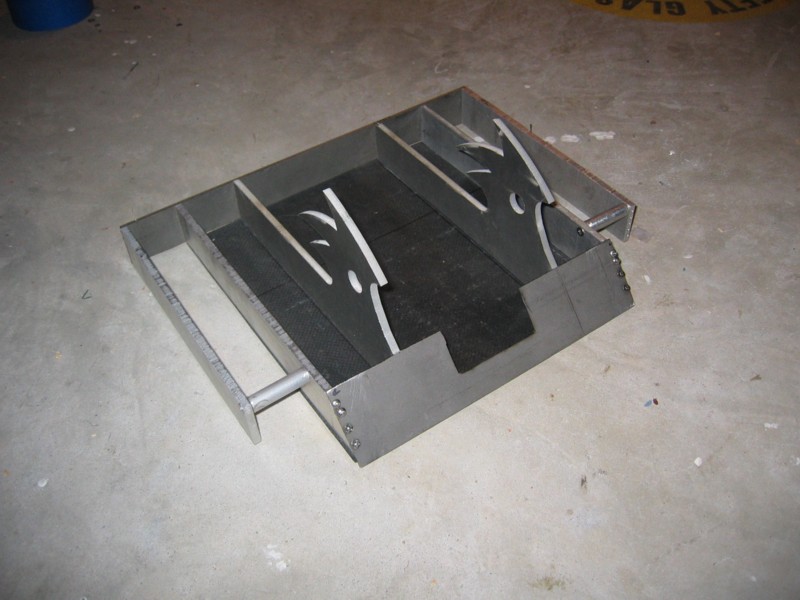

Looks done dosent it? well almost, I still have a few more things to do including adding 8 more bolts to hold on the wedge, and also the top armor...then I will be done. |
|
|
|
|
|
 |
|
|
|
|
|
|

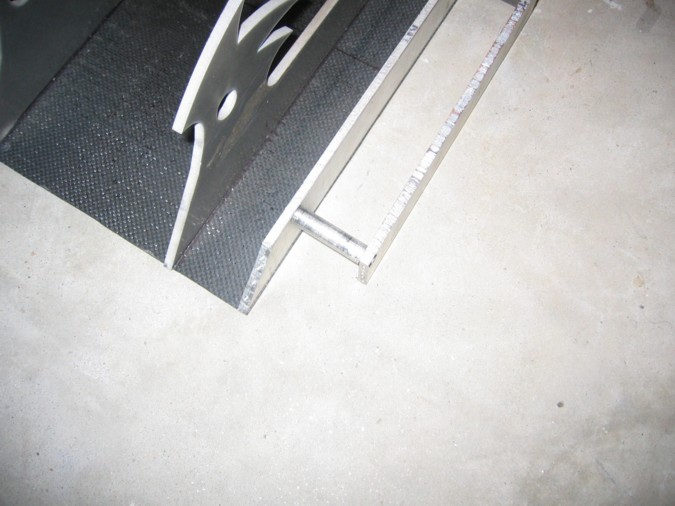

This is a close up of how the wheel guard is attached to the rest of the frame. That is a 1/2" aluminum rod with #10 bolts that have been countersunk . |
|
|
|
|
|
That's pretty much it for the frame, I have started on the weapon check it out here. |
|
|
|
 |
|
|

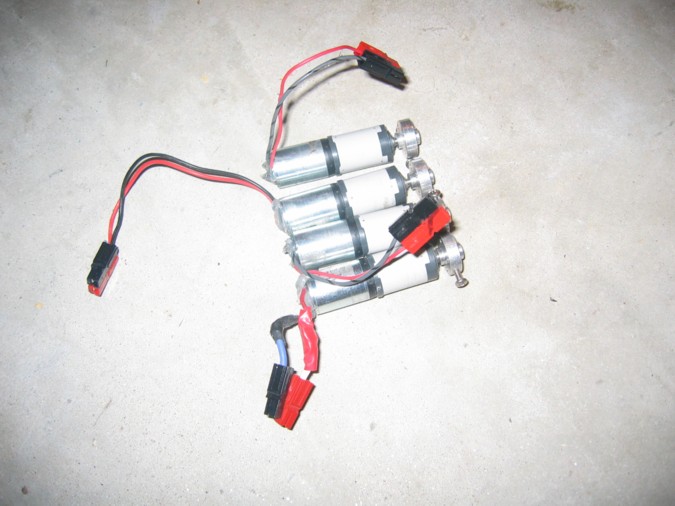

I've also kinda started on the drive train, as you can see in the picture to the right, I have 4 of the 8 escaps needed. I have hubs for them but still no wheels or speed controllers. |
|
|
|
|
|
|
