Portable Boat
Lately I have been buisy building a boat - here is a bill of matherials $$$!
| Weight: |

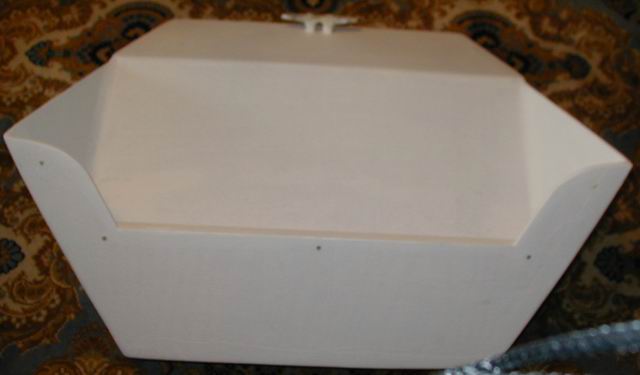

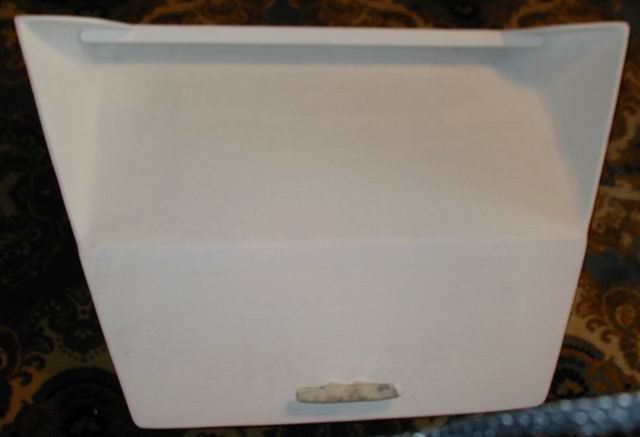

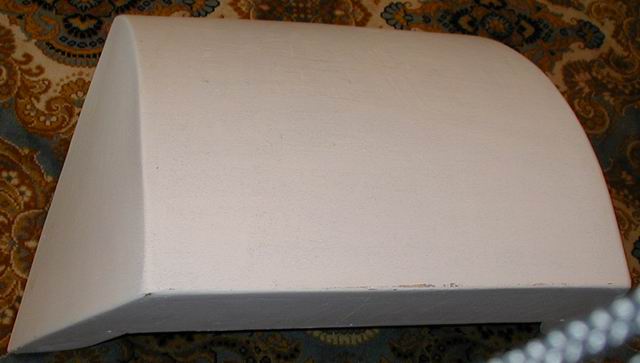

| Stern | 21 lb |

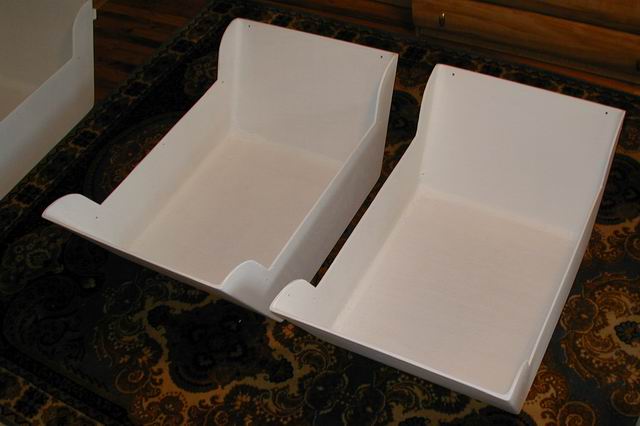

| Middle 1 | 15 lb |

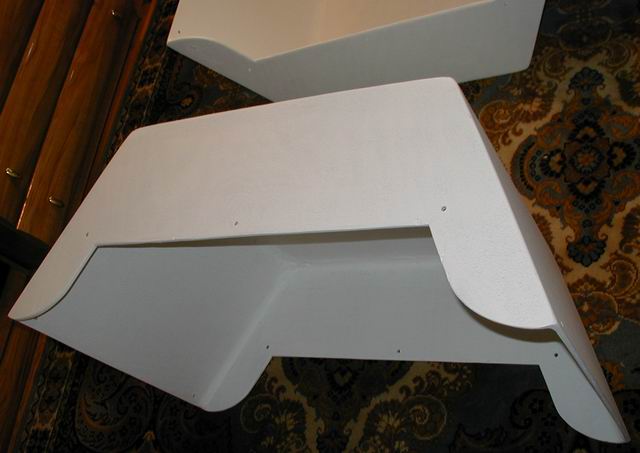

| Middle 2 | 16 lb |

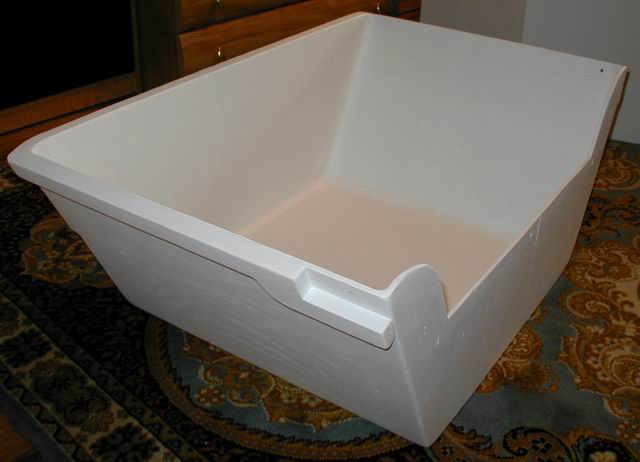

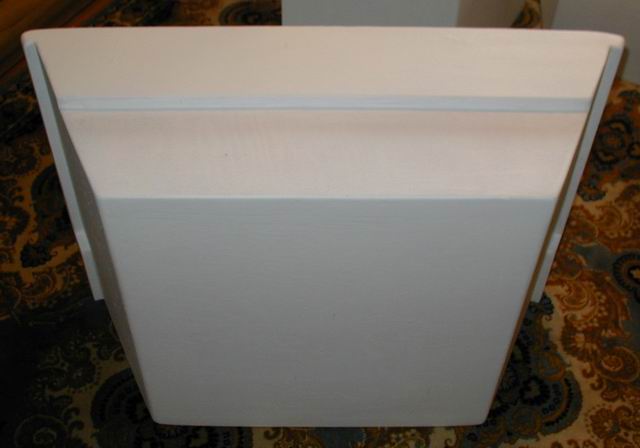

| Transom | 24 lb |

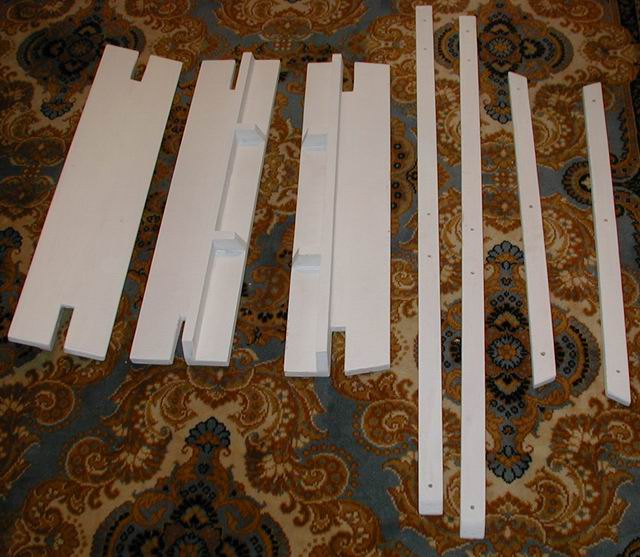

| Seats + hardware | 18 lb |
|
| Total: | 94 lb |

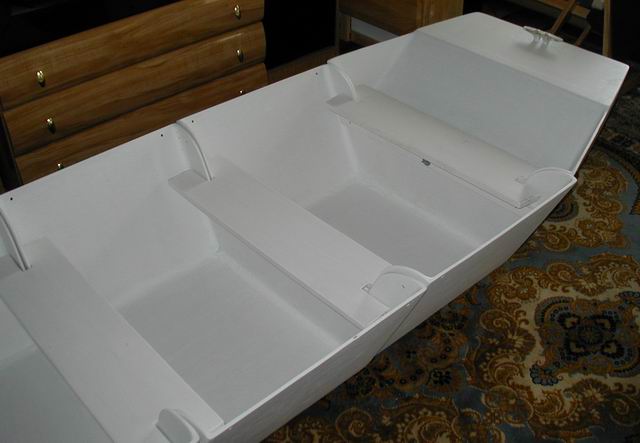

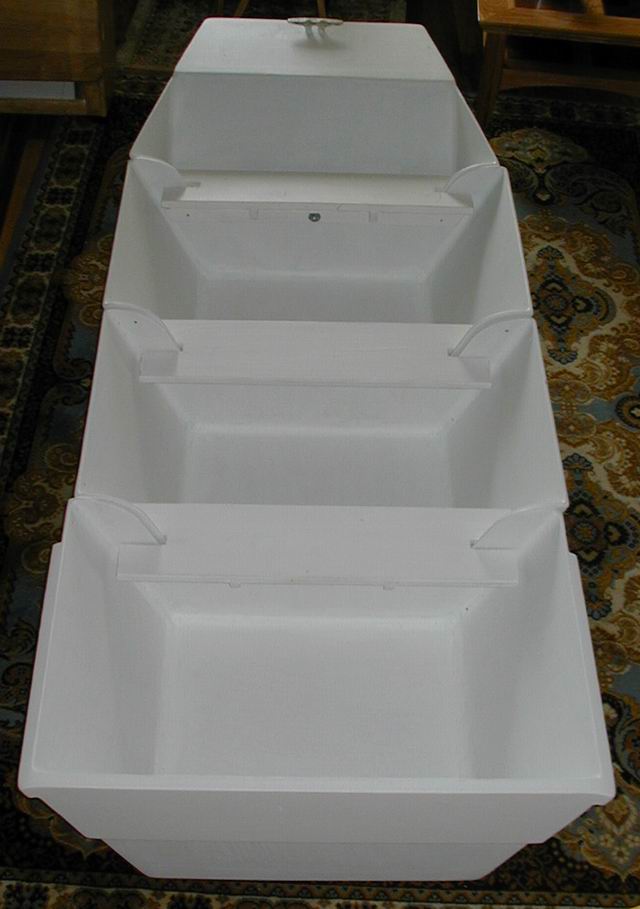

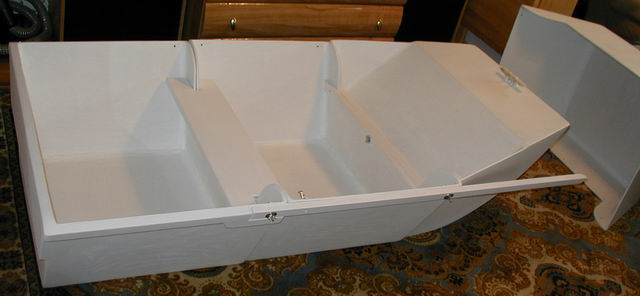

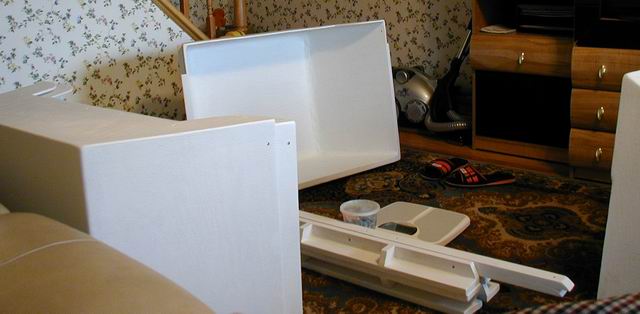

The boat is just under 8 feet long. Built using stich&glue construction method from 1/4" plywood. It folds in a cube smaller than 20"x30"x40". For storage, each section is inserted into each previous one like a plastic cup. During the assembly each section is connecting by bolting together the seats and rubrail with 1/4" bolts with wingnuts. I will put some more information here as soon as I will have the time.
|
