Marshall's Review |
The YO-520P organizer is a clam-shell design, with a nice

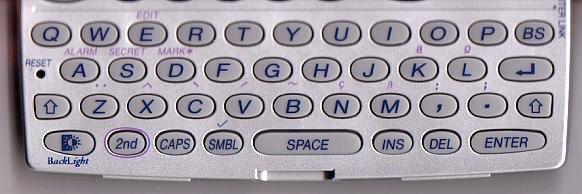

keyboard, and separate number pad. Here's a scan of the keyboard:
DETAILS:
1MB Memory capacity,Numeric Keypad plus Large Keyboard
Layout for Easy Data Input, 120 x 40 LCD.
Applications: Calendar, Schedule, To Do, Anniversary, Telephone,
Memo, Expense, Expense Report,Clock, Calculator, and Conversions.
With PC Link Cable & Software for Data Back-up.
MyWizard.com compatible for data downloads such as sports schedules,
holiday lists, travel information, and much more.
Simply install the Data Downloader from the included CD
and you can access MyWizard data files from MyWizard.
OFFICIAL SPECS FROM SHARP:
Display: 120 x 40 dot matrix liquid crystal display Memory
capacity: 1MB Flash memory User area approx. 896 KB
Applications: Calendar, Schedule, To Do, Anniversary, Telephone, Memo, Expense, Expense Report, clock, Calculation, Conversion
Application capacity: 10,000 entries (Schedule 2,500, Tel 2,500, Memo 2,500, To Do 1,500, Expense 1,000) in total.
These capacities assume the following average entry sizes. Schedule: 22 characters/entry Tel: 8 characters/entry in name field, 10 characters/entry in number field Memo: 12 characters/entry in title field, 18 characters/entry in description field To Do: 30 characters/entry in description field Expense: 6 characters/entry in amount field 11 characters/entry in memo field
Maximum storage in each application: 5,000 entries
Maximum data size per entry: Approx. 2,000 bytes
Calculator digits: 12
Clock mode: Accuracy: �30 seconds/month (at 25�C/77�F) Display: Year, month, day day of the week, hour, minute, AM/PM, city name, time zone
Clock system: 12-hour/24-hour format (switchable) World clock function, daylight saving time/summer time display function, schedule alarm function
Peripherals and Data transfer interface: Cable jack: 3-pin connector
Power consumption: 0.5 W Operating temperature: 0�C to 40�C ( 32�F to 104�F)
Power supply: Battery: 3V (DC) (Alkaline batteries LR03 x 2)
Battery life: Battery life may vary depending on usage. Approx. 1200 hours when data is continuously displayed without backlight (at 25�C/77�F) Approx. 300 hours when data is continuously displayed with backlight, for 2 minutes per hourly use (at 25�C/77�F) Approx. 270 hours when data is searched for 5 minutes, and displayed for 55 minutes per hourly use and backlight is on for 2 minutes per hourly use (at 25�C/77�F)
Dimensions (WxDxH): Open: 5-15/32" x 5-23/32" x 15/32" (139 mm x 145.5 mm x 11.8 mm ) Closed: 5-15/32" x 3-5/32" x 13/16" (139 mm x 80 mm x 21 mm)
Accessories: Alkaline batteries LR03 x 2 Operation manual Software CD-ROM PC Link cable
