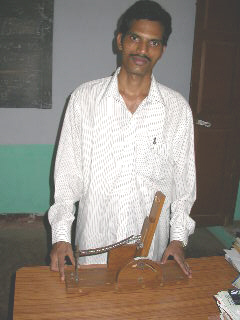

Mr S Vijay, MTech student (2002-04), along with the catapult, designed and fabricated by him. Click on the image to see an enlarged view of the catapult.
A device, viz. a catapult, has been fabricated to demonstrate Design of Experiments in a class room environment. The catapult is a simple mechanism which can throw a ball to a distance. We can set the catapult start angle, end angle, clamp height, spring hook position and arm length at various levels. How do we set the levels to maximise the throw distance? Or, how can we set the levels so that the ball hits a target kept at a certain distance? One can attempt a theoretical analysis to solve these problems, but much simpler is to carry out a properly designed experiment to develop a mathematical model which can be used to predict the throw distance in terms of the other factors.
Mr S Vijay, MTech student (2002-04), along with the catapult, designed and fabricated by him. Click on the image to see an enlarged view of the catapult.
The catapult can also be used to demonstrate Statistical Process Control, by repeated firing in a single position, without changing the settings. It is even possible to demonstrate the effect of overadjustment, similar to Deming's funnel experiment, by adjusting the settings between firings suitably.
