Visualization

Program for kitchen drawing, calculating part dimensions for optimization, calculating total cost of a project.

Visualization program starting spring 2007.

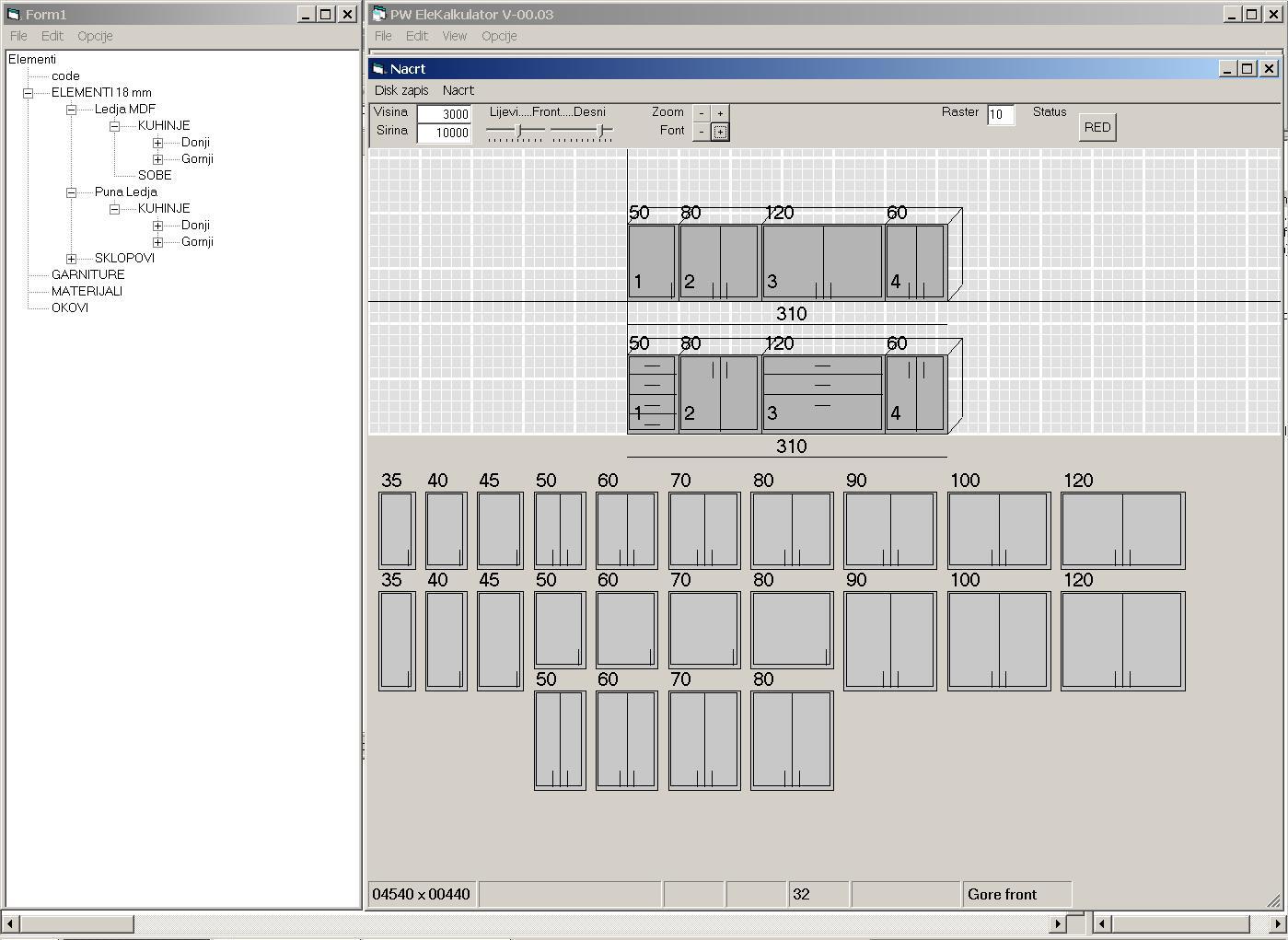

2-D program, for Kitchen or cabinet drawings.

Simulated 3D function ( 2D drawing with 3D perspective lines).

Specification of parts for optimization and hardware, calculate cost.

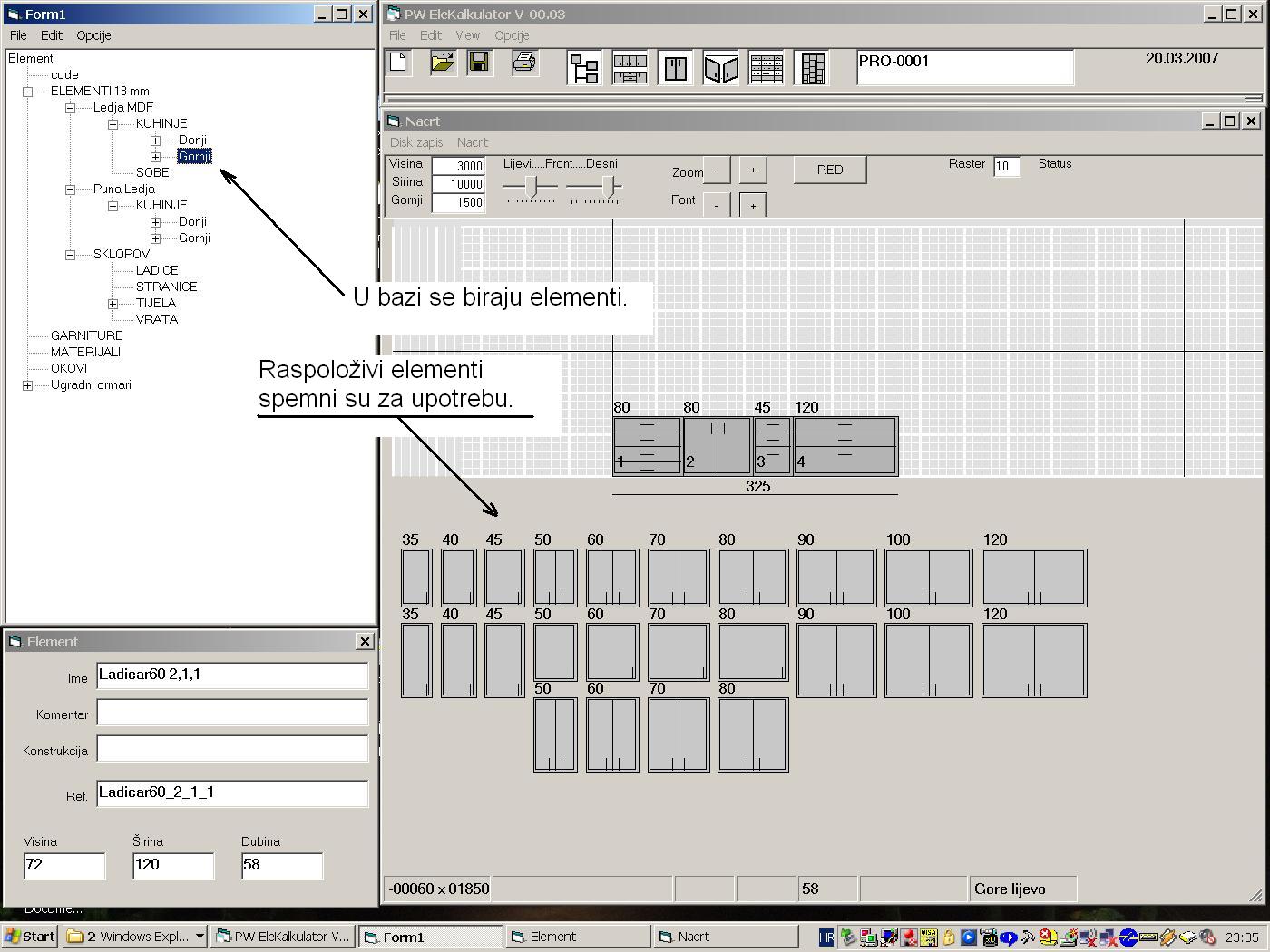

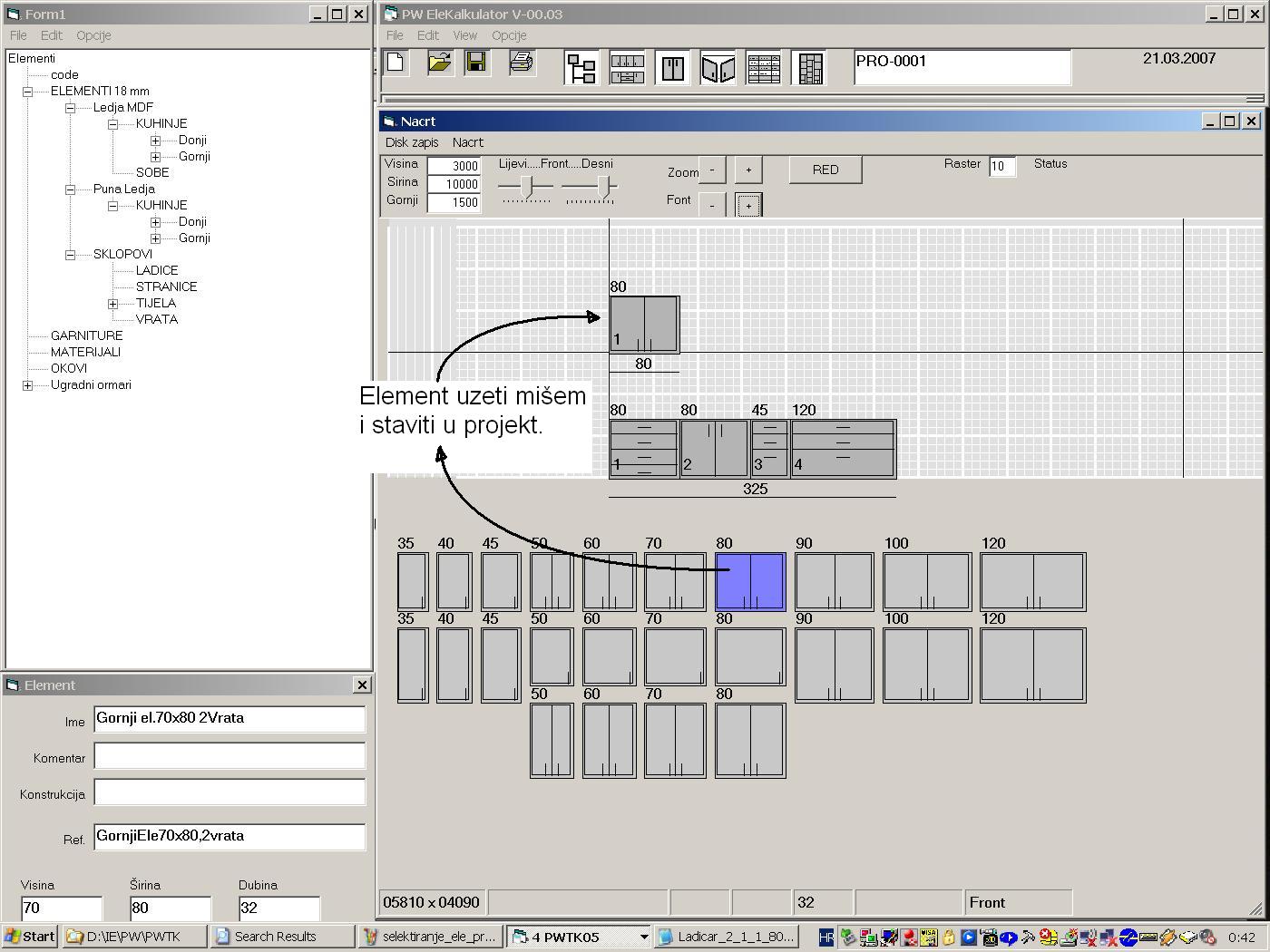

Simple to use. Elements in database, sorted by name and construction. Drag and drop elements from Database to project.

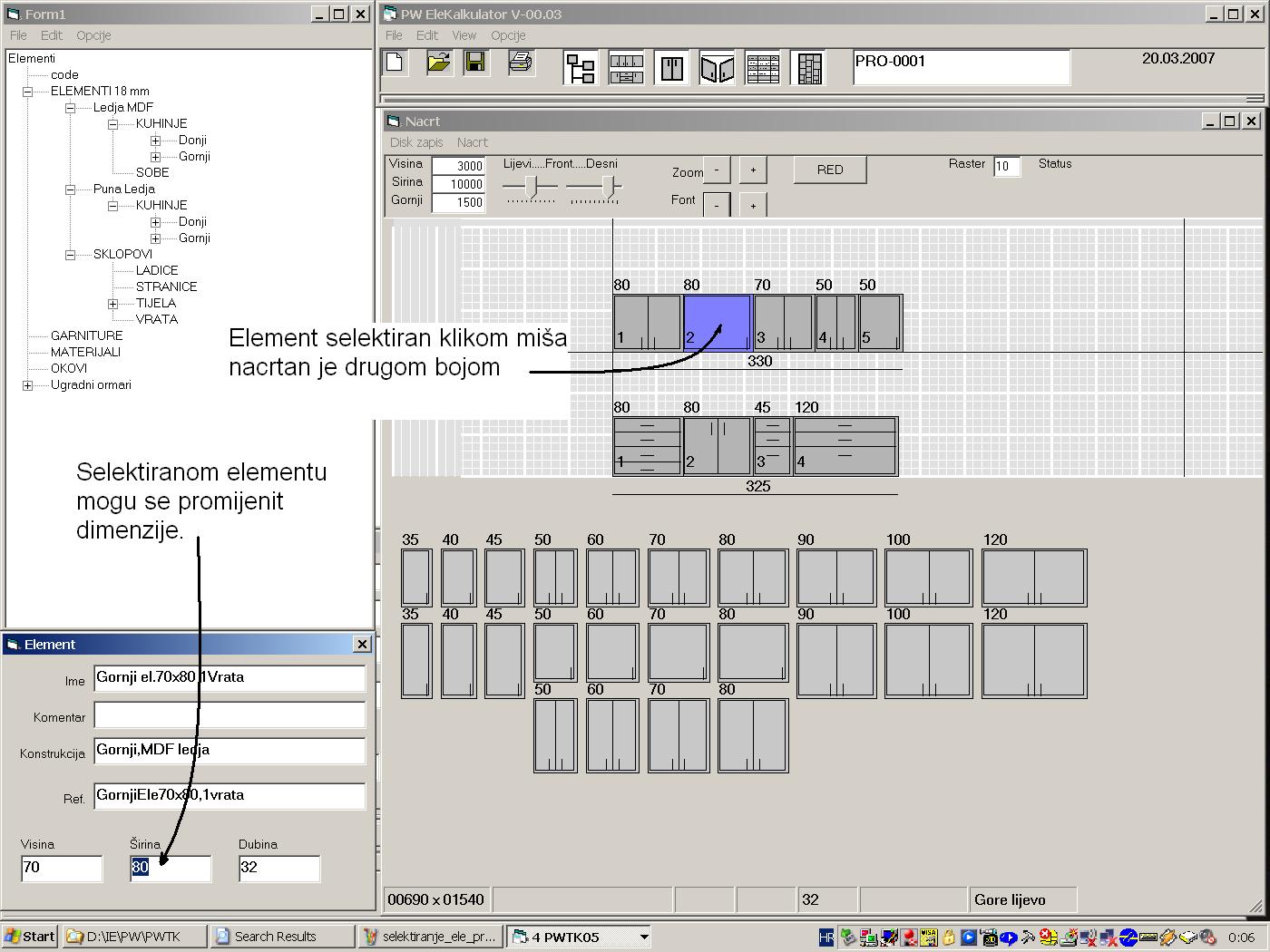

Change element dimension, program calculates corresponding parts dimension.

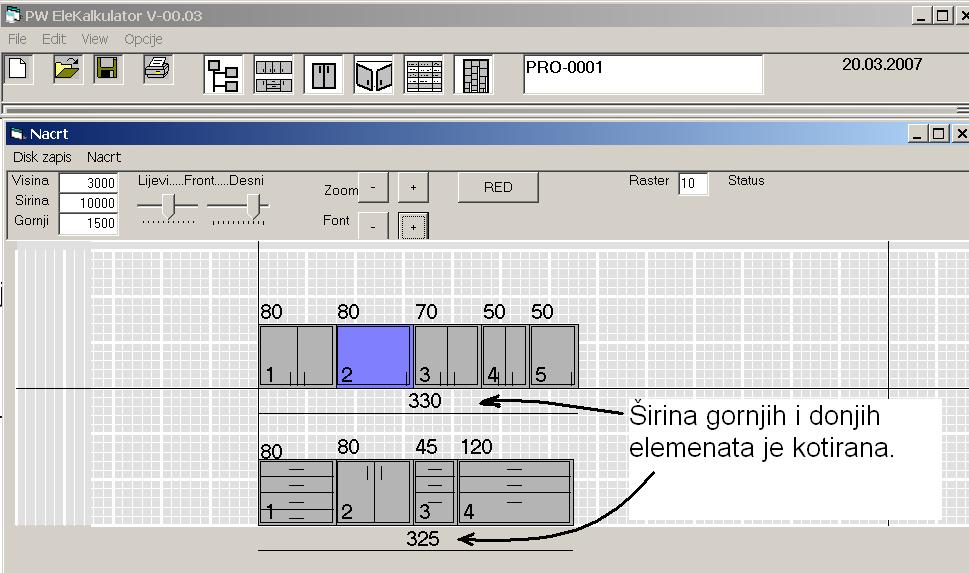

Width of a project shown in a drawing.

Drop elements to a free space, or elements are automatically aligned to the height of lower or upper Kitchen elements.

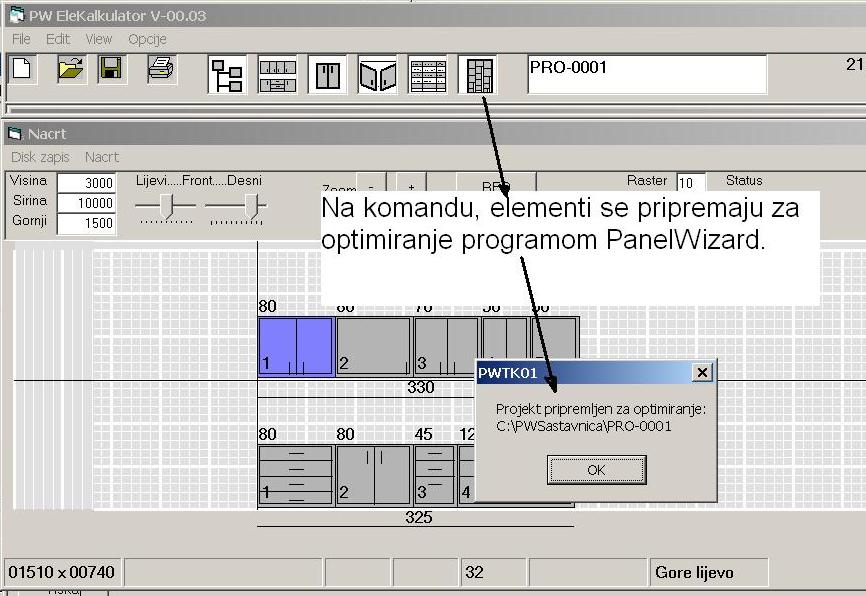

Export parts for optimization to PanelWizard.

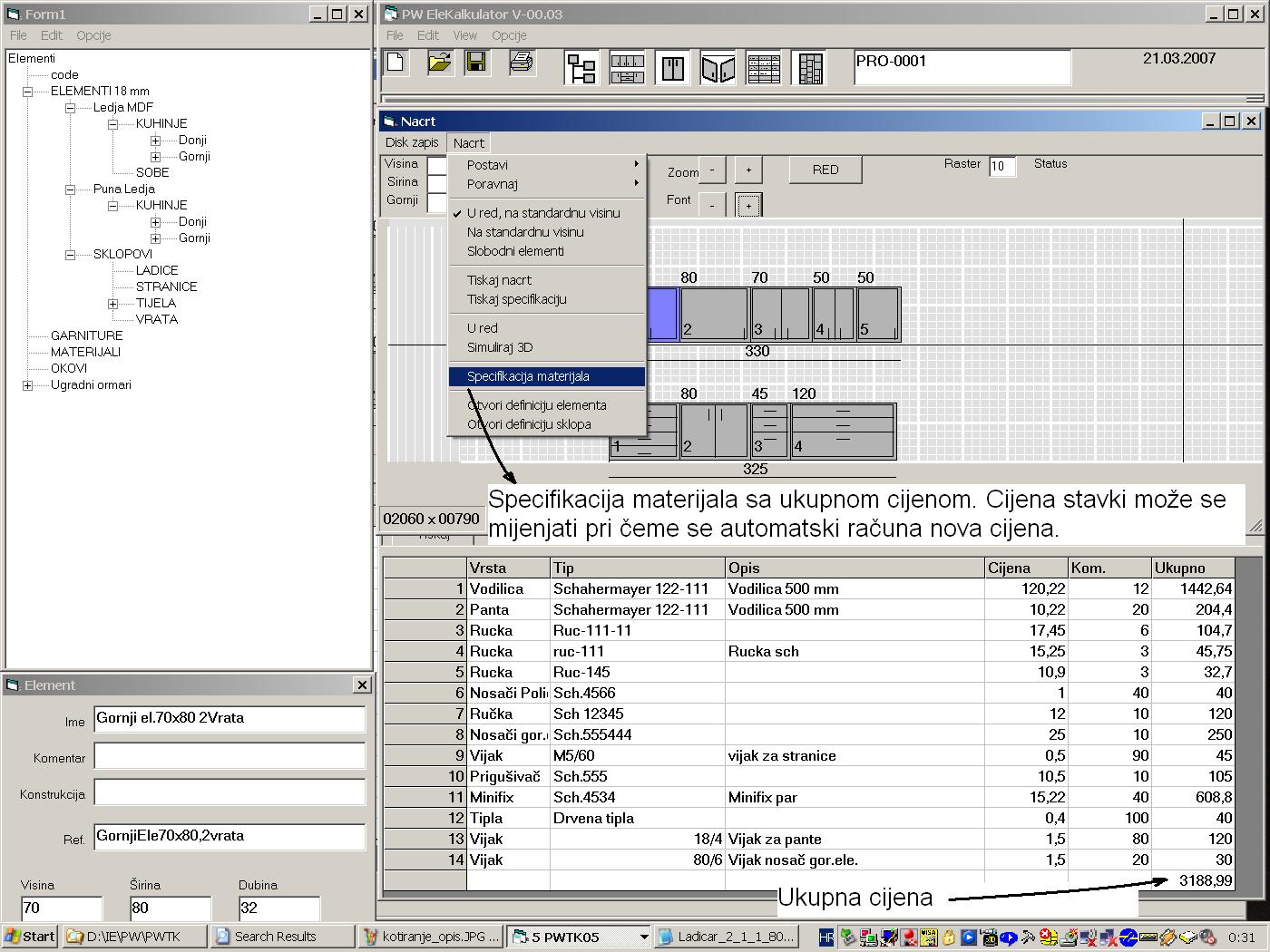

Hardware specification with cost calculation.

Hardware is listed in a table. Change cost of a position, new total cost is automatically calcuculated.

Expandable Elements Scripting Database.
