| Installing strobe lights on the front headlights |
 |
| I installed a set of strobe lights on my 99' Ram 3500, total installiton time was about 1 hr. |
 |
| I started by disconnecting both negative battery cables and then started on my driver's side by taken out my headlight bars on my pushbar.I then used a phillips head screwdriver to remove the turn signal light houseing. |
 |

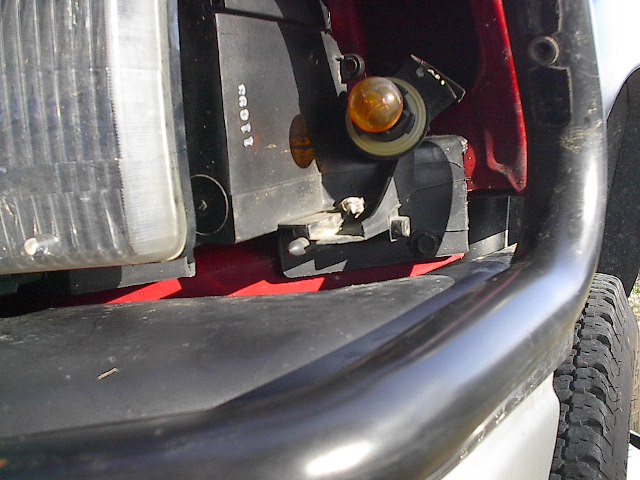

| phillips head screw |
 |
| I then used a 10mm socket to move two of the three bolts that are holding the headlight houseing, the other bolt I had to use a 10mm open/close box wrench from under the truck just above the front tire. I then remove the rubber piece and remove the headlight buld and electrical connector from the houseing then pull the headlight houseing out. |
 |
 |

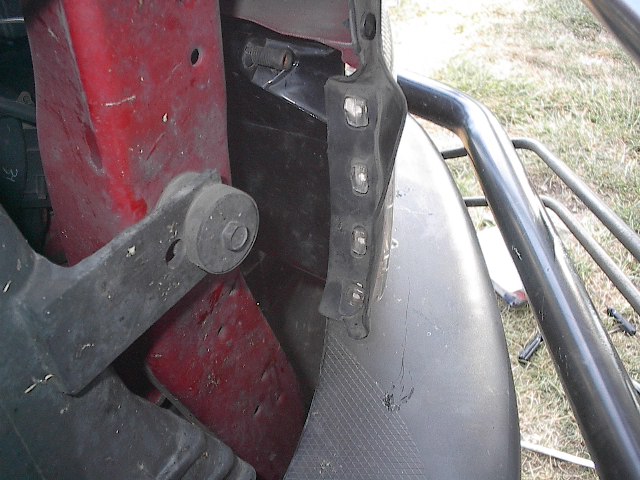

| rubber pc on the left side of the houseing, I started at the bottom and pulled striaght up. |

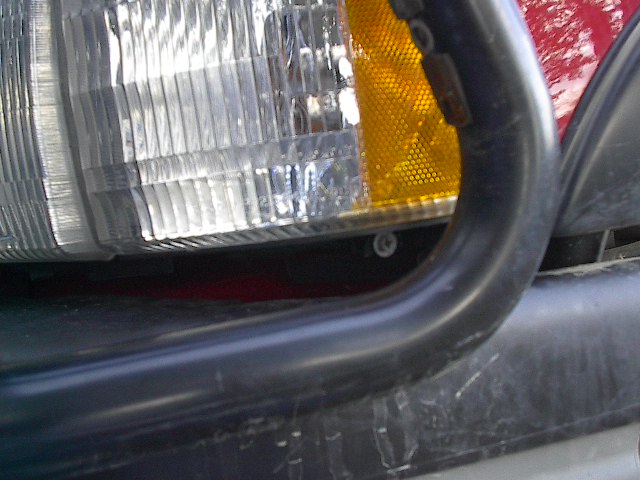

| bolt |
| The other bolts are on the left side of the houseing, the one on the bottom has to be taken out with the open/close box wrench from under the truck. |
 |
 |

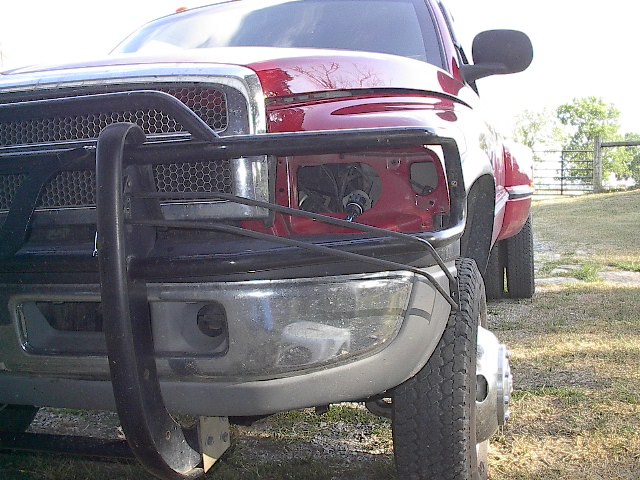

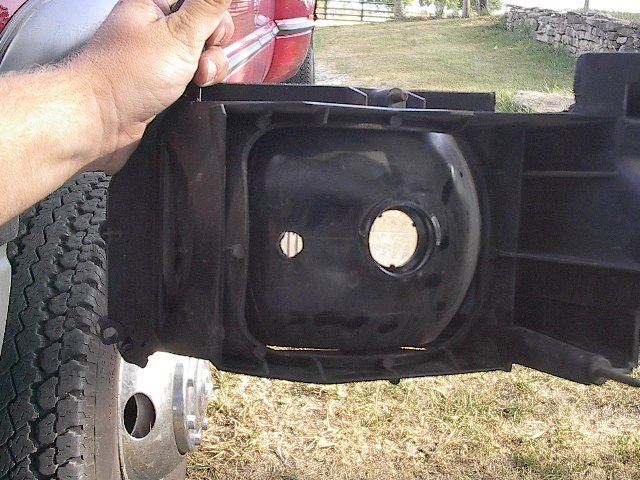

| Left pic of truck w/out headlight houseing, I then drilled a 1/2 hole in the houseing to the left of the bulb hole for the strobe light.. |
 |
 |

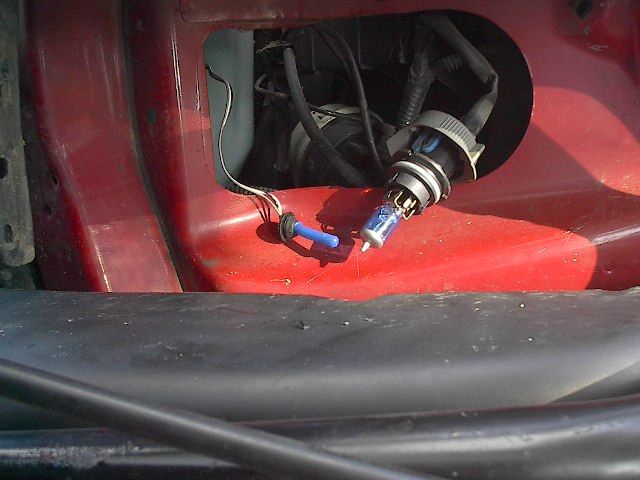

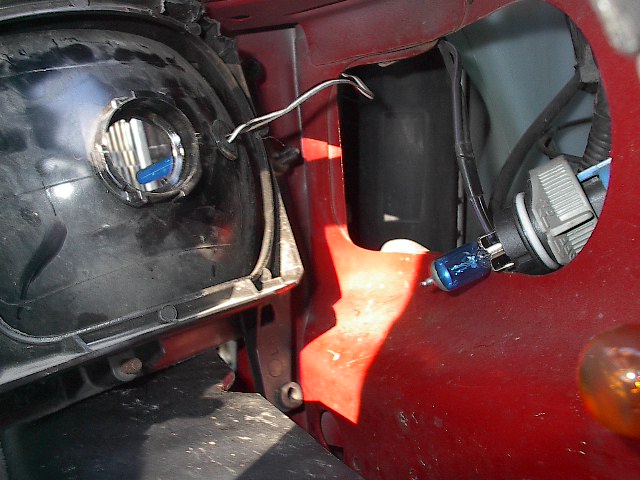

| I then ran one side of the strobe lights thou the hole in the truck and then inserted it into the headlight houseing |

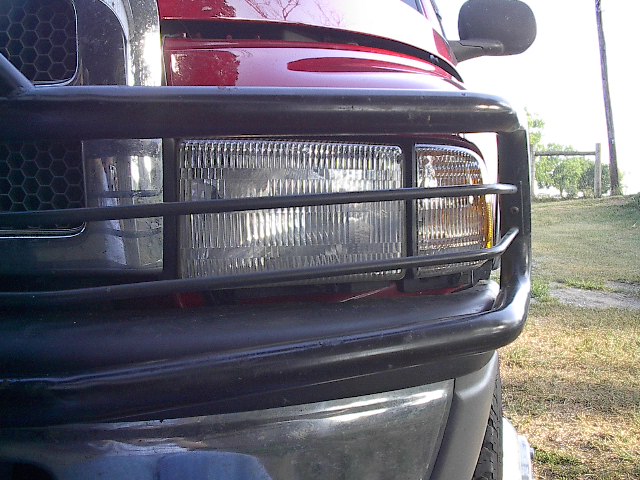

| I then put the headlight bulb back into the headlight houseing and tightened the three bolts. Then put the turn signal houseing back in and tightened it down. I then repeated this process on the passenger side. I then wired my box to the positive battery cable and grounded to the frame. I then ran my wires into the cab to my switch. |
 |
