| Tach Page 3 |

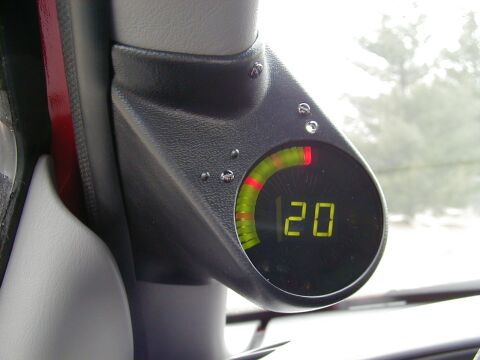

| Installed digital tach indicating 2000 RPM A brite blue LED located above the red 2000 LED is currently used as a shift light that lights at 3000 RPM (default) and higher. The shift RPM can be changed with the mode change and adjust pushbuttons. |

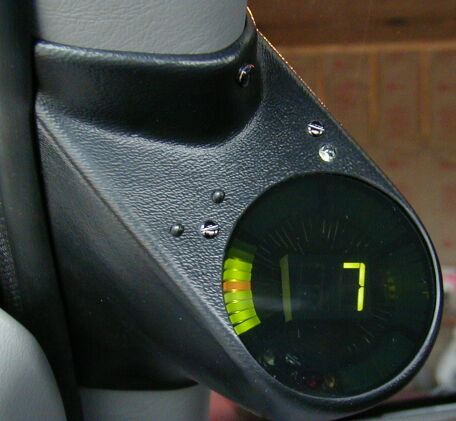

| Truck at an idle of 700 RPM |

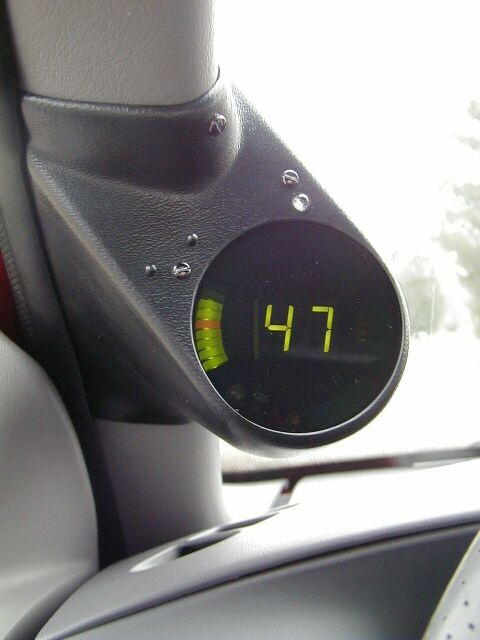

| Truck at an idle of 700 RPM with outside temperature of 47 degrees |
 |

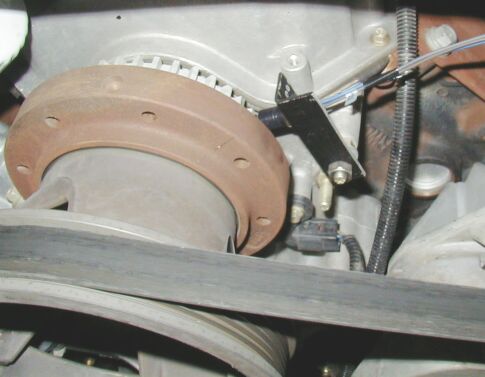

| This picture shows the crankshaft position gear and the tachometer geartooth sensor. The gear has 35 teeth with one tooth missing for syncronization of the engine contoller. The tachometer circuitry finds the missing tooth and then counts the number of teeth that pass by in 16.666 miliseconds. This reading will be directly in hundreds of RPM. |
 |
