Major Update: My old motherboard has died due to mishandling. Updated my current Prescott Rig with the new motherboard.
A simple plain page showing you my new Rig specifications. In the page about me, (bio.htm), there's a rig spec & pics of my celeron pc, that pc has died and is replaced by this newly assembled rig of mine. :)

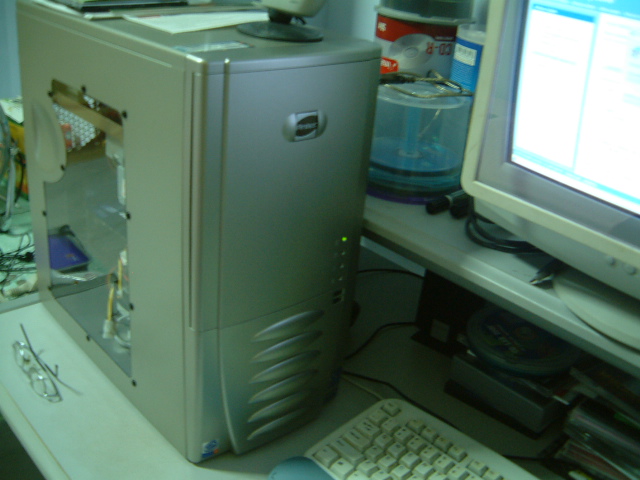

Side view of my new computer & casing

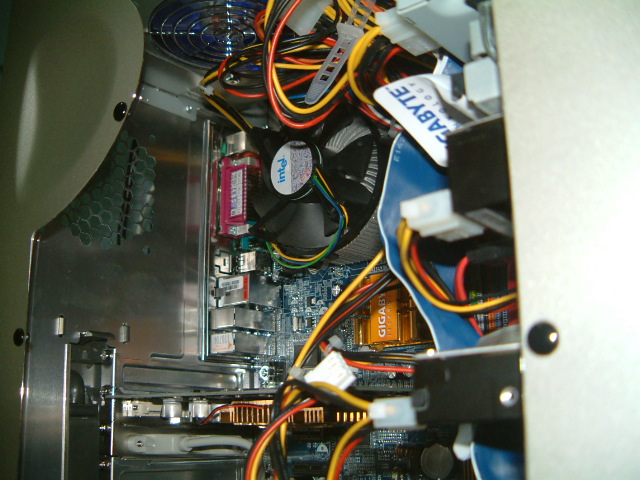

Pic snapped with flash. See the new intel fan which is humongous and good enough to cool down the lga775 cpu. See the Gigabyte Geforce PCX 5750 card utilizing the new interface, PCI-Express.

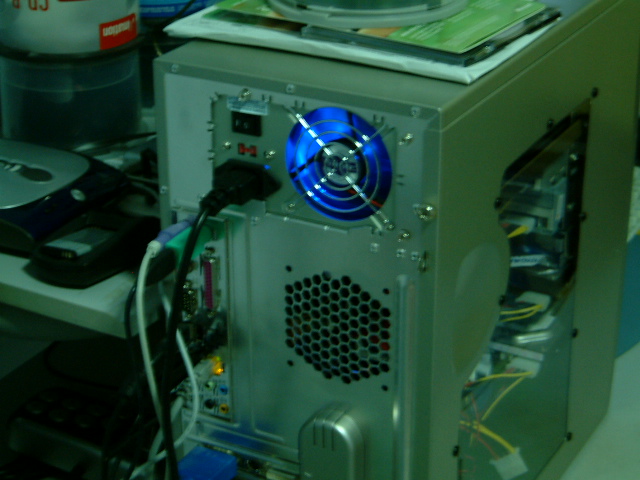

Back view. Powered by Antec's PSU, this is a special version of the SmartPower PSU, called SmartBlue for this instance due to its having blue LED's. [Update: The Antec PSU intake exhaust fan has ceased functioning and due to that the CPU fan has to work even harder to cool down the CPU due to hot air not being able to be sucked out via the PSU, the Chassis fan is already doing as much as it can, and subsequently the PSU has been replaced by a newer one called Silverstone ST46F 460W PSU ATX12 v2.0]
The front of the casing. See the P4 logo below. and the Antec wording on top. This casing is made entirely of aluminum and is extremely light even with its drive bays totally filled. The front has a swaying door that hides the components. You can see the door open in the next pic.

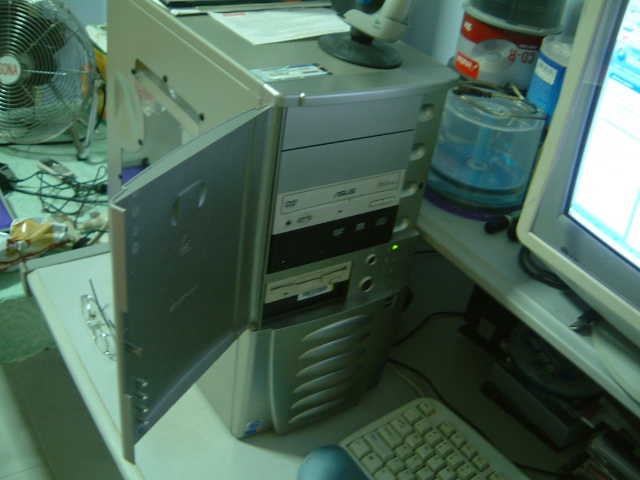

Bay with the door opened. Drives seen are the asus dvd-rom, teac (liteon) dvd writer, the oldie 1.44MB floppy drive and u can see the SATA HDD below (with the barcode) [Pictures taken with FujiFilm FinePix Digital Camera 3.2MP]
Removed my PCI ATA Controller due to BSOD clashes with its driver. Bought a 5'25" External Rack instead to house my ASUS E-616 DVD-ROM and run in using USB2.0. Bought another stick of RAM totaling it to 1GB from 512MB previously
Updated all my computer rigs to Windows XP Service Pack 2 (Official Version)

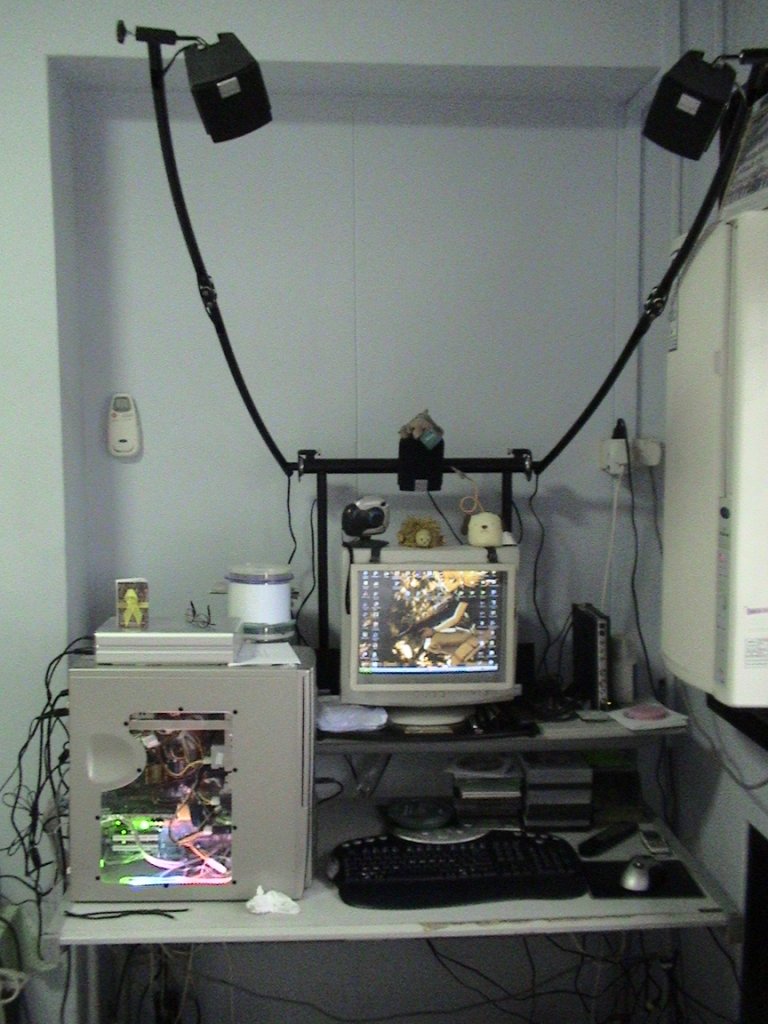

Here is a picture of my computer in portrait mode, you can see the Creative Surround Station holding my centre and surround speakers. [Picture takin with Sony DVD HandyCam DCR-201 Megapixel]
Specifications of my new rig. (August 11 2004)
Intel Pentium 4 520 [2.8GHz] 1MB L2, Prescott LGA-775 FSB800
CPU Cooled
using default Intel Heatsink Fan
Gigabyte GA-8I915P Duo Pro Intel 915P/ICH6R/DDR I&II/AUDIO/ATA100/SATA RAID/PATA
RAID/IEEE 1394a/2x Gigabit LAN/1x PCI-e
x16, 2x PCI-e x1, 3x PCI Slots
2x 512MB Corsair PC3200 ValueSelect DDR1 RAM
Maxtor 6Y120M0 Diamond Plus 9 SATA150 120GB 7200RPM ATA133
Seagate ST3160827AS Barracuda 7200.7 SATA150 w/ NCQ 160GB Hard Drive
Hi-Speed Mobile Storage Solution 3.5" External HDD Enclosure USB2.0 with Hitachi 200GB HDD
Teac DV-W58G-A 8x DVD-Writer (Lite-On OEM)
Leadtek
PX7600GT TDH 256MB PCI-E Graphics
Samsung SyncMaster 731BF 17" LCD Monitor
Logitech Mx Duo Set
Creative Headset
Creative Live! Webcam Pro
Logitech NewTouch Keyboard with Palm Rest
Creative Inspire 5300 5.1 Speaker System mounted on Creative Surround Station
Creative SoundBlaster Audigy 2 NX
On Pacific Internet, SG 512k multi-access (DSL) Broadband Internet
Microsoft Windows XP Home OEM Edition SP2
Antec LAN-BOY Mini Tower ATX Aluminum Casing with Silverstone ST46F 460W Strider
Series PSU
The 2nd RIG (Since September 2003)
Intel Pentium 4 2.4C GHz 512k L2, Northwood mPGA-478 FSB800
CPU Cooled using Default Intel Heatsink Fan
30GB IBM Deskstar 307030 75GXP 7200RPM ATA100
LiteOn L1648H DVD/CD-Writer Combo
Leadtek A7600GT TDH 256MB AGP8x Graphics
Philips 15" 150C LCD Monitor at native 1024x768@75Hz
Logitech MX310 Optical Mouse
Standard Microphone
Standard 107Keys Keyboard
Creative SoundBlaster Live! Value/Creative Sound Blaster Extigy
Creative Cambridge Soundworks FPS 1000 4.1 Speaker System
On Pacific Internet, SG 512k multi-access (DSL) Broadband
Internet
Microsoft Windows XP Home OEM Edition SP2
Standard ATX Tower w/ Antec Smartpower 350W PSU
The 3rd RIG (Since 2001)
AMD Duron 700MHz 128k L1 64k L2 Socket A (462) FSB100
CPU Cooled using Socket 370/A compatible Heatsink with Delta 7000RPM Fan
DFI AK-74EC VIA KT133A Chipset w/ 2 Channel Audio
512MB PC133 SDRAM
60GB Hitachi Deskstar IC35L060AVV207-0 180GXP 7200RPM ATA100
NEC OEM 32x CD-ROM Drive PIO4
Realtek RTL8139(A/B/C/D) 10/100Mbps PCI Network Interface Card
Creative 3D Blaster5 RX9600 128MB AGP4X 325MHz Core, 202.0MHz (404MHz DDR) Memory
Compaq 550C 15" CRT Monitor
Microsoft Wheelmouse Optical
Standard 107Keys Windows 98 Keyboard
Using on-board 2 channel Sound Card
Creative SBS 370 2.1 Speaker System
On Pacific Internet, SG 512k multi-access (DSL) Broadband Internet
Microsoft Windows XP Pro SP2
Datamini Cesky ATX Tower w/ Generic 350W PSU
