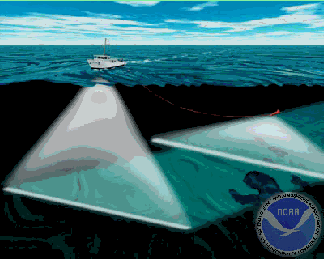

SIDE SCAN SURVEY IN PROGRESS
C3D SIDE SCAN SYSTEM
The C3D is the best solution for combining side scan imagery and bathymetric data. The data sets are collected at the same place and time and there is no need to merge data sets as with multi-beam and side scan sonar systems run separately. Each point along the track has X, Y and Z components. For example, at the 100 meter range there are 2000 points compared to only a few hundred using multi-beam systems. This

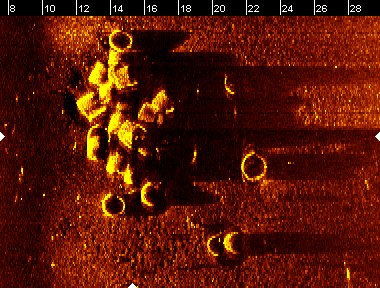

SIDE SCAN DATA SHOWING CYLENDRICAL OBJECTS LYING ON SEA BED

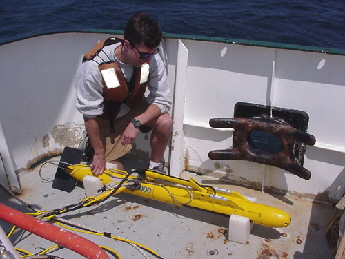

DF100 DIGITAL SIDE SCAN FISH

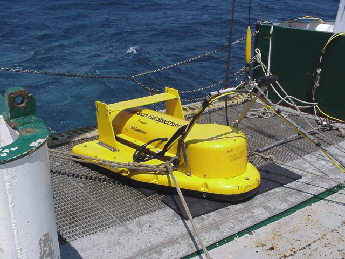

SB 216 CHIRP SUB BOTTOM PROFILLER

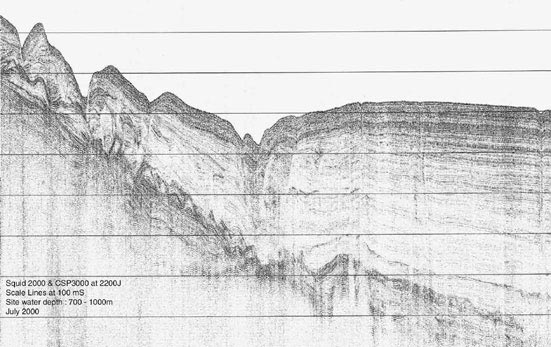

SUB BOTTOM DATA SHOWING SUB SURFACE FEATURE OF SEABED
