Current source

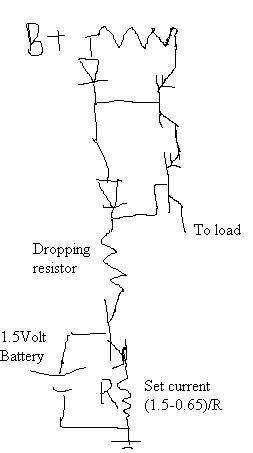

R sets the current drawn. Dropping resistor is to drop the voltage to a safe amount for the bottom transistor to work. Why use battery? stable and clean voltage drawn but need to be change often. To overcome this utilize a Darlington instead.
