Saab 900 SE Turbo - Vacuum Lines
Vacuum lines and PCV components should be inspected every 30k miles or more often, and replaced as needed.  Rubber hoses become brittle with age, and deterioration and small cracks can be hard to see.  Original vacuum hoses are 4-mm inside diameter (ID), same size as most of the wiper washer hoses.  The same rubber hose is also used in the secondary air injection (SAI) system on n/a models.  I replaced all of mine around 100k miles, some for the second or third time.
1 - PCV Valve Hoses

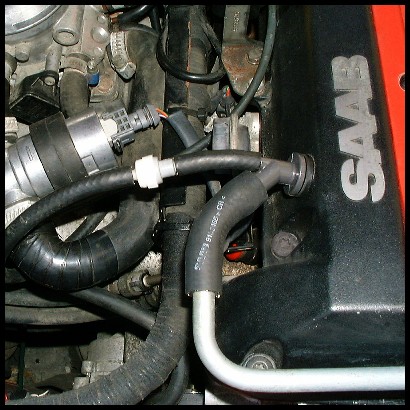

Part of the positive crankcase ventilation system.  This line leads from the valve cover to the engine intake.  In the picture at left, the stock 4-mm rubber hose is was replaced by a 4.8-mm reinforced fuel line.  It is less likely to clog, and lasts longer.

The check valve (PCV valve) needs periodic replacement.  The plastic valve cover nipple, grommet (bushing) and larger diameter hose may also need replacement if leaking oil.

2 - MAP Sensor
Not the same part number and material as the other hoses (possibly silicone rubber from the factory).  It seems more durable, and should probably only be replaced by a compatible silicone hose.  It leads to the manifold air pressure (MAP) sensor.

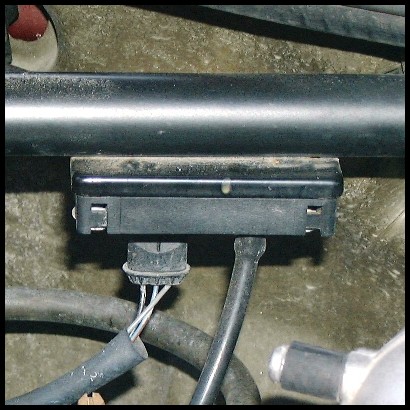

3 - Fuel Pressure Regulator

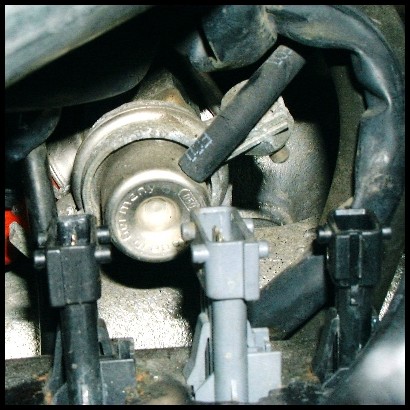

From the throttle body to the fuel pressure regulator (FPR).  The FPR is on the driver side of the fuel rail,  below the charge air pipe and behind a connector bracket.  The view on the left is from the driver side fender, and after unplugging the three connectors.  This line can be hard to inspect and replace because most of it is hidden under fuel rail wiring.
4 - Charge Air Bypass Valve

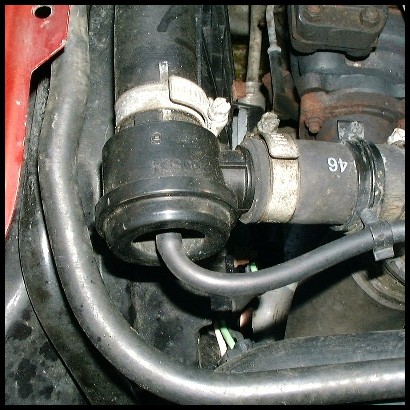

Runs along the "charge air pipe" to the turbo bypass valve (BPV) at the front of the engine compartment.  This is the longest of the four hoses.
5 - Evap System Purge Valve

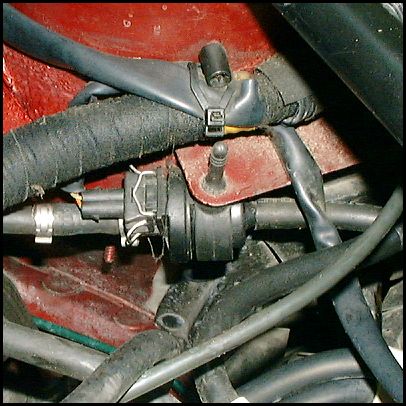

The purge valve hose for the Evaporative Emission System  connected to the throttle body is not an actual vacuum line (different size and material).  It allows fumes to be sucked from the charcoal canister in the wheel well into the intake and burned.  However, if the hose is broken, or the purge valve faults, the effect can be the same as a vacuum leak.

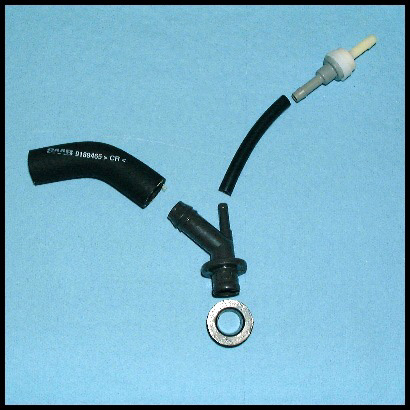

PCV Components

a - Valve cover bushing #7515190
b - PCV nipple #9165903
c - Rubber hose #9189465
d - Generic 4-mm rubber hose, NAPA H-459
e - PCV check valve #7521313

Vacuum Hose Length

1a - 240 mm
1b - 60 mm
2 - 220 mm
3 - 400 mm
4 - 800 mm


References

EPC 2-0690 Crank Case Ventilation
Hose Techniques (online silicone hose vendor)
