Location

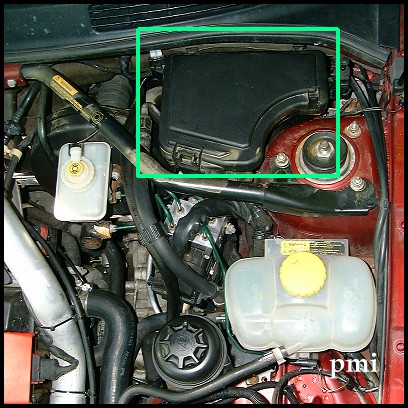

In the engine compartment, next to the LH strut tower. The lid
is attached by plastic snaps and can be removed for inspection and testing
easily. The relay panel in its box can be detached with all wiring
attached, and swung out of the way, for access to the clutch cable and
the power steering line connections at the steering rack. |
 |
Relays
The panel includes relays for the lights, radiator cooling fan, A/C
compressor, and on some of the "S" (2.3l non-turbo) models, the secondary
air injection (SAI) system.
The orange "relay" is actually an electronic module with circuit boards
inside, and can sometimes be repaired instead of replaced. |
 |

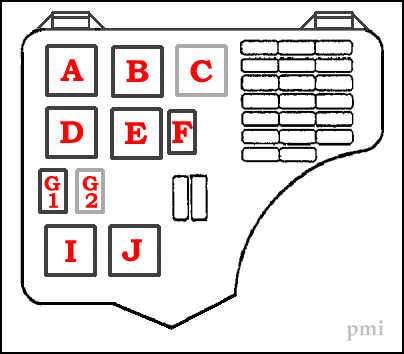

A - Low beam
B - High beam
C - SAI pump ("S" models only) or,
Intake air heat plate
D - Cooling fan, low speed
E - Lamp test, headlights
F - Front foglights
G1 - Horn
G2 - SAI valve ("S" models only)
I - Cooling fan, high speed
J - A/C compressor |
| Reference
Saab EPC 3A-2310
|
Part Numbers
| A, B, D, J |
8533176 |
|
| C |
9522061 |
|
| E |
4109070 |
|
| F, G1, G2 |
4224192 |
|
| I |
9522061 |
|
| Retaining Clip |
4230108 |
|
|
|
)
)
)
