Instrument Panel Relay Tray
|
|
Location
Behind a plastic panel, a.k.a. "fascia" below the instrument panel.
The panel wraps around the side and the interior fuse box, and is
held by several torx screws, hex bolts, and two plastic fasteners near
the pedals. The plastic fasteners are removed with some difficulty (a center
pin locks the fastener in place until pushed in all the way). |
 |
Relays
The relay tray is held by a single torx screw in the front, and hinges
in the rear. Relays are held in by friction, and plastic snaps.
Relays having identical shape and color have the same rating, and can be
swapped to test. Relay sockets for optional accessories are empty. |
 |

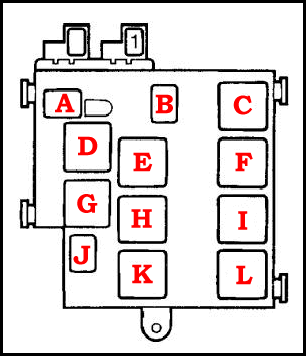

A - Rear seat heater (if so equipped)
B - Backup lights
C - Shiftlock (auto transmission)
D - Rear wiper
E - Ignition
F - Catalytic Converter *
G - Intermittent wipers
H - Rear Defrost
I - Fuel pump
J - Washer pump
K - Starter
L - Fuel Injection
* Supplemental description for relay "F" from the Saab
EPC: "Overheated catalytic converter" |
| Reference
Saab EPC 3A-2310
|
Part Numbers
| A, B |
4224192 |
|
| C |
4238234 |
|
| D, G, I, L, K |
8533176 |
|
| F |
4433322 |
|
| E, H |
9522061 |
|
| Retaining Clip |
4230108 |
|
|
|
)
)
)
