CDRD1600-16
Super 16 CD Duplicator
Configurations
Specifications
|

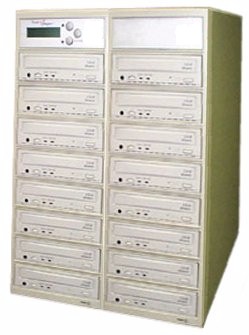

Integrated by Optical Resources using the highest quality components, the CDRD5916 is capable of producing up to 16 CD-R's simultaneously with or without a host PC or Mac computer. We offer this duplicator with 12, 14 or 16 (8X) CD recorders. The system is equipped with a CD-ROM readin drive and the unit supports audio track extraction. The features and expandability of the 1600 series duplicator make it the most flexible CD-R copier in the world. Operation is simple because the duplicator is a self contained unit that uses a simple “One Button” keypad allowing you to make copies right from your master CD with no read-in required. The system’s time saving format detection will automatically identify the master CD’s format, and the writing speed can be changed to 2X, 4X or 8X from the front panel. Outfitted with 8X writers the CDRD1600 duplicates up to sixteen full 650 megabyte CDs in 9 minutes. Fully loaded, the CDRD-1600-16 can produce a minimum of 106 discs per hour. Software and audio professionals love the CDRD1600's specs, it is fully Red Book compliant and supports sub indexes, ISRC and UPC codes. |
CONFIGURATIONS |
|
SPECIFICATIONS |
| Write Drive Configuration: | Panasonic 8x/20x CD-R Drive Plextor 8x/20x CD-R Drive |
| Read | CD-ROM Reader or First recorder |
| Recorder MTBF: | >50,000 hours POH (25% duty cycle) |
| Internal Controller: | Proprietary controller |
| Power Source: | 115V/230V switchable 50~60Hz |
| Weight: | 90 lbs. loaded |
| Dimensions: | 16.5"H 14.5"W 19.5" D |
| Power Consumption: | 200W |
| Environment: | Temperature: 40�-95�F (5�-35�C) |
| Connectivity | SCSI2, RS232C |
| Supported Formats | |
| CD-ROM Mode 1 & Mode 2 Form 1 & Form 2 Joliet Rockridge USF CD-I Form 1 & Form 2 Video CD Karaoke CD-DA (CD Audio) w/ISRC Mixed Mode Multi-Session |
CD-ROM XA Mode 2 ISO 9600 HFS Hybrid Photo-CD CD-G* Cd Enhanced Subindex & UPC code support Single Session DAO TAO SAO |
| Warranty |
| One year parts and labor. |
