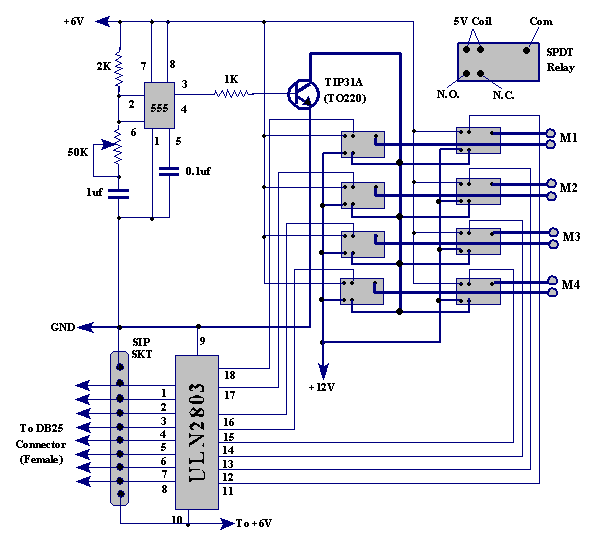

Parallel Printer Port Motor Control Circuit:
<<<< Back
Important circuit note: Diodes must be connected across all relay coils in reverse polarity to protect circuit from "kickback" voltage spikes, which over time can damage circuit components.
