| Declination gear assembly |
| This pic shows the Dec. motor and belt assembly. |

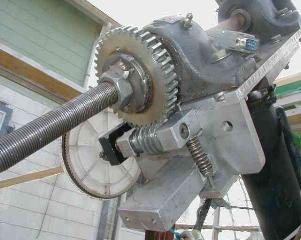

| This picture shows the main Declination shaft, gear, and worm assembly |
| The Dec.worm assy is mounted to a backing plate with slotted holes that alow the worm to slide to and away from the main gear |
| The clutch assembly is a nut welded to a curved washer whitch is tack welded to a flat polished washer. There is a piece of thick gasket material and greese, between the clutch and the gear. A jambnut (not shown) locks the clutch to the shaft |
| Also shown is the ajustable spring tensioner for the worm assembly. |
