| Right assention drive |

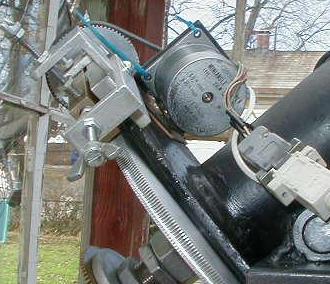

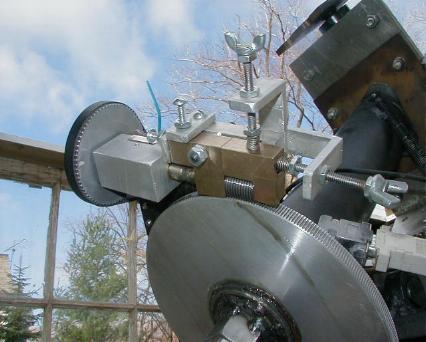

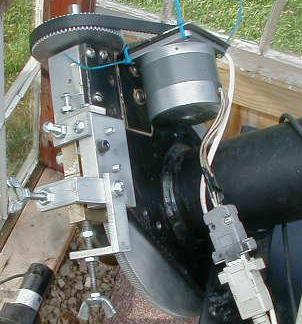

| This pic shows the 359 tooth main gear and the worm assembly. The hole in the worm assy is oversized to alow the worm to move. Two of the ajustment screws also have springs compressed with nuts that are screwed in or out depending on how much spring tension is needed. The driveshaft is coupled to the worm by a piece of clear hose. |
