| SECONDARY MIRROR HOLDER |

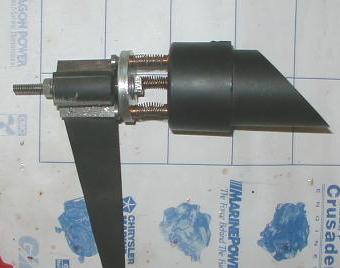

| This is the secondary holder mounted to the hub and vane assembly. It is made from a section of pvc pipe cut off at a 45* angle and glued into a pvc pipe cap. Colamination is acomplished by turning the three allen screws that hold the springs and pvc cap The pvc cap has three threaded holes in the flat end to accept the colamanation screws. |
 |
 |
 |
 |

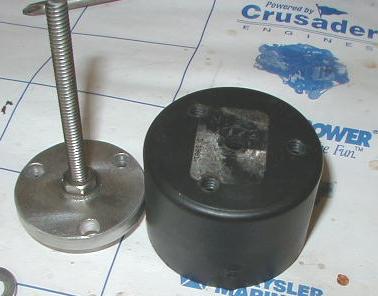

| This shows the colamination screw holder and the back of the pipe cap. The holes are slightly oversized in the screw holder so the colamination screws do not bind. The screw holder is basically a large washer with a threaded rod mounted to it, long enough to go through the hub assembley with a nut and lockwasher |

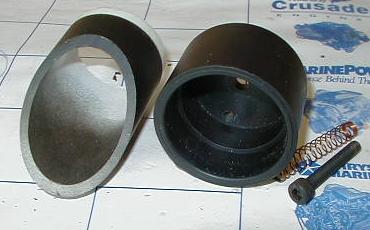

| This is the pvc pipe and the cap with one of the allen head colamination screws and one of the springs |
|
