SPECIFICATIONS
|
| MISSILES SSM: 8 Raduga SS-N-22 Sunburn (3M-80 Zubr) (2 quad) launchers active/passive radar homing to 160 km (87 n miles) at 2.5 (4.5 for attack) Mach; warhead nuclear 200 kT or HE 300 kg; sea-skimmer. SAM: 2 SA-N-7 Gadfly (Uragan) or
SA-N-7 Grizzly command/semi-active radar and IR homing to 25 km (13.5 n
miles) at 3 Mach; warhead 70 kg; altitude 15-14,020 m (50-46,000 ft); 44
missiles. Multiple channels of fire. |
|
| GUNS 4 - 130 mm/70 (2 twin) AK 130 85° elevation; 35-45 rds/min to 29.5 km (16 n miles); weight of shell 33.4 kg. 4 - 30 mm/65 AK 630 [Ref 4]; 6 barrels per mounting; |
TORPEDOES 4 - 21 in (533 mm) (2 twin) tubes A/S MORTARS : 2 RBU 1000 6-barrelled [Ref 6]; range 1,000 m; warhead: 55 kg; 120 rockets carried.
|
![]() |
MINES Mine rails for up to 40. |
| COUNTERMEASURES Decoys: 8 PK 10 and 2 PK 2 chaff launchers. |
ESM/ECM 4 Foot Ball. 6 Half Cup laser warner. |
| WEAPONS
CONTROL 1 Squeeze Box optronic director and laser range finder Band Stand datalink for SS-N-22. Bell Nest, 2 Light Bulb and 2 Tee Pump datalinks. |
|
RADARS
|
|
| SONARS Bull Horn (Platina) and Whale Tongue; hull-mounted; active search and attack; medium frequency. |
HELICOPTERS 2 Harbin Zhi-9A Haitun. |

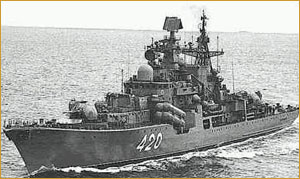

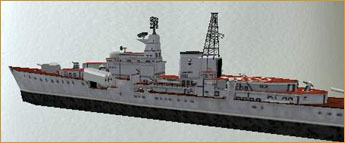

| PROGRAMME After prolonged negotiations, a contract was signed in September 1996 for the last two uncompleted Russian "Sovremenny" class destroyers. A third of class may also be acquired in due course. First completion is planned for late 1997. |
|
