| ORDER# | SHIP | CLASS | SCALE | LENGTH | BEAM |
| PT-02 | PT-330 | 80' ELCO | 1 :20th | 48" | 12" |
PT -596 is an example of a late-war, heavily armed South Pacific based Patrol Boats. As the war in the Pacific drew to a close, the role of the PT's changed from night maruders against larger Japanese units to attacks on the Japanese system of supply and troop barges tht plied the various island groups. PT 596 is typical of these barge busting boats used in the final year of the war. Sporting an impressive array of weapons, including a single 40mm Bofors mount, a 37mm canon, a 20mm Oerlicon, two twin 50 caliber machine guns, 4 MK-13 torpedoes and 2 8 tube 5" spin stablized rocket launchers that could give them the firepower of a Destroyer (for 16 shots at least).

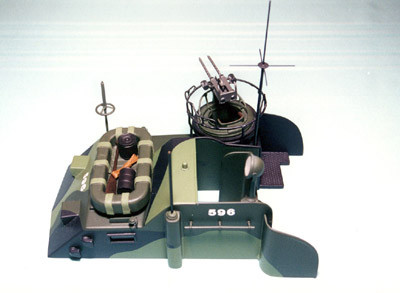

This is a conversion package for the Dumas PT -109 kit, containing everything necessary to convert the early war PT -109 into the mid-war PT -596. Included are all of the required guns, lockers, vents, torpedoes, roll off racks, raft, dinghy, anchor, antennas, radar, ropes, hatch lids,window covers, rudders, liferings, turret rings, towing eye, deadlight frames, throttle tunnel, paper patterns to alter the charthouse and turret configuration.
Also included is a full size plan sheet, decal, a 24 page instructions booklet with reference photos , 85 minute video showing a convresion , and a wooden boat stand to hold your model while you build it and totake it down to the local lake.
Price: $450.00
This package includes the Dumas Model Products 1 :20th scale PT -109 kit and the PT -596 conversion kit as described above in one convenient specially priced package for the modeler who wants to get it all together.
Price: $695.00
| Item # | Item Description | Quantity |
| 1 | Anchor | 1 |
| 2 | Antenna kit, BN / IFF type | 1 |
| 12 | Plastic strip, 5/32 x 1/16 | 1 |
| 15W | Decal Set, White | 1 |
| 20M | Gas fill cap | 3 |
| 27 | Life Ring | 2 |
| 28F | Sidelight set, functional | 1 |
| 36 | Pedastal, 50 caliber twin | 2 |
| 50 | Rudder Block, r/c only | 3 |
| 53 | Sheet plastic, 40mm deck plate | 2 |
| 58 | Torpedo kit, Mk 13 | 4 |
| 61 | Tubing, plastic with brass wire insert | 1 |
| 74L | Wire, plasticote, large diameter 50 cal. dep. rail | 5 |
| 74S | Wire, plasticote, small dia, 50 cal. dep. rail | 2 |
| 75E | Plan sheet, 1/20th scale PT 596 | 1 |
| 76E | Instruction Booklet, PT 596 | 1 |
| 77E | PT Squadron patch, RON 40 | 1 |
| 81 | 20mm with short tripod & magazine | 1 |
| 83B | 40mm with # 91 base pedastal | 1 |
| 85 | 37mm late WWII | 1 |
| 87 | Rocket launcher | 2 |
| 100 | Anetnnae kit, UHF type | 1 |
| 101 | Locker, inflatable raft stowage | 1 |
| 102 | Conduit (throttle linkage housing) | 1 |
| 103 | Ready Service locker, 20mm | 3 |
| 104 | Ready Service locker, 37mm | 2 |
| 105 | Ready Service locker, 40mm, tall | 1 |
| 106 | Boat Stand, precut wood kit | 1 |
| 107P | Deadlight frames, Elco, 15 piece set | 1 |
| 109 | Deck reinforcing plate, 20mm and 40mm | 2 |
| 110 | Deck vent, early war Elco | 1 |
| 111 | Deck vent, late war Elco | 3 |
| 112 | Dinghy, hull with chine straps | 1 |
| 113A | Hatch lid, small, foredeck | 1 |
| 113D | Hatch lid, large (rounded corners) | 3 |
| 113C | Hatch lid, large day cabin (sqare corners) | 1 |
| 114 | Life raft. 10 man, late war rectangular | 1 |
| 115 | Locker, 5" rocket storage | 2 |
| 117 | Mooring Bit | 5 |
| 121 | Radar Mast, Elco | 1 |
| 122 | Rope, scale (3' line) | 2 |
| 123 | Site-tite window cover | 2 |
| 124 | Torpedo roll off rack, Elco | 4 |
| 125 | Towing eye with template and plastic | 1 |
| 126 | Turret Ring insert with seat | 2 |
| 127 | Vent engine hatch, large scoop | 1 |
| 130 | Rudder, R/C scale | 3 |
| 131 | Elco boat hook with hangers | 1 |
If you have questions, you can email me here.
